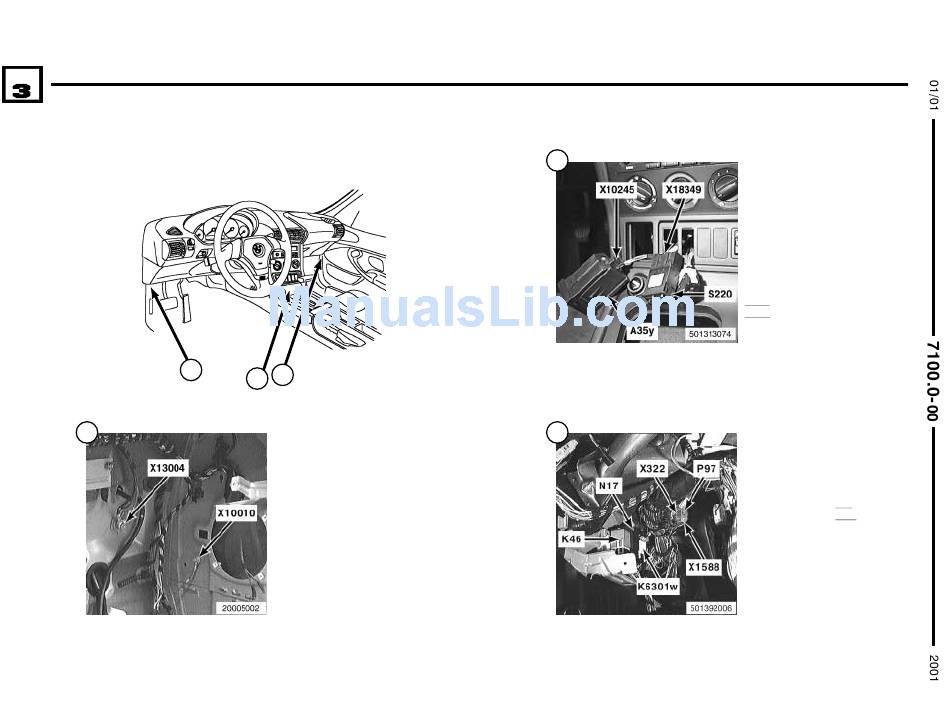

7100.0 COMPONENT LOCATION VIEWS

BMW
BMW
BMW
BM
Z3
3
2
2
1
X10010
GROUND
X13004
GROUND
1
3
A35y
BOARD COMPUTER
(BC – LOW)
S220
AIR CONDITIONING/
RECIRCULATING
SWITCH ASSEMBLY
X10245
X18349
K46
P97
HIGH BEAM LIGHT
AUXILIARY FUSE
RELAY
BOX
K6301w
X322
FUEL PUMP RELAY
X1588
N17
CRASH CONTROL
MODULE
