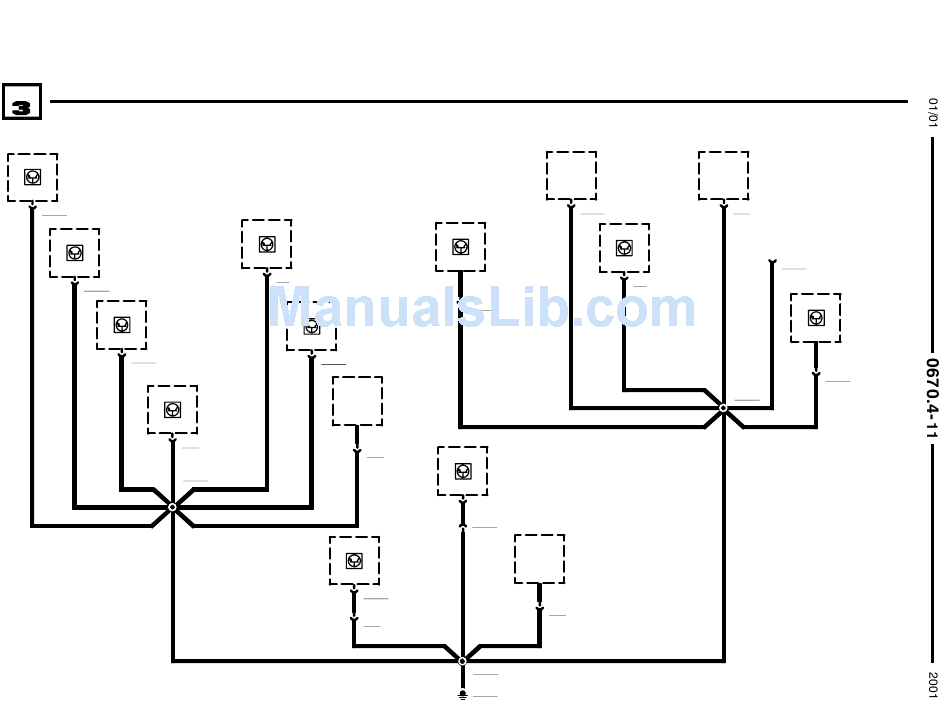

GROUND DISTRIBUTION
BMW BMW BMW BM

GROUND X10010

Z3
M VERSIONS
A3984
OIL–/OUTSIDE
TEMPERATURE GAUGE
CONTROL MODULE
9 X13578
A104
BODY ELECTRONICS
CONTROL MODULE

(ZKE IV)

5 X10182
A35y
BOARD
COMPUTER
(BC – LOW)
6 X10245
M VERSIONS
1 X121
.5 BR/ .75 BR/ .5 BR/OR .35 BR/OR
OR OR X13011
1 BR/OR
A2w
INSTRUMENT
CLUSTER
24 X16
Z3 VERSIONS
A19007
THERMAL OIL LEVEL
SENSOR (TOENS)
CONTROL MODULE
1 X19007
S32
CLUTCH
SWITCH
8 X275
.5 BR/OR .5 BR/OR .5 BR/OR
2 X10218
.5 BR/SW
19 X279
.5 BR/OR
Z3 VERSIONS
Z3 VERSIONS
1
LATE PRODUCTION
A194y
REMOTE
CONTROL
MODULE
10 X13139
.5 BR/OR .5 BR/OR
S58
DRIVER'S SEAT
BELT SWITCH
N12w
ANTI–THEFT
CONTROL MODULE
(ALPINE)
3 X13025
A113
SEAT OCCUPANCY
DETECTOR
8 X279
.75 BR/OR .5 BR/OR
X10009
1.5 BR/OR
X10010
Z3 VERSIONS
S32
CLUTCH
SWITCH
X11143 2 X770
N17
CRASH
CONTROL
MODULE
8 X65
.5 BR/OR .5 BR/OR .5 BR/OR
X64591
S59
PASSENGER'S
SEAT BELT
SWITCH
1 BR/OR
B21
ON–BOARD
COMPUTER
TEMPERATURE
SENSOR
D110
OBD II
CONNECTOR
5 X19527
M VERSIONS
A22z
ELECTRO-
CHROMIC REAR
VIEW MIRROR
10 X13139
.5 BR/OR
