BMW Z3(E36/7) Electrical Troubleshooting Manual page 70

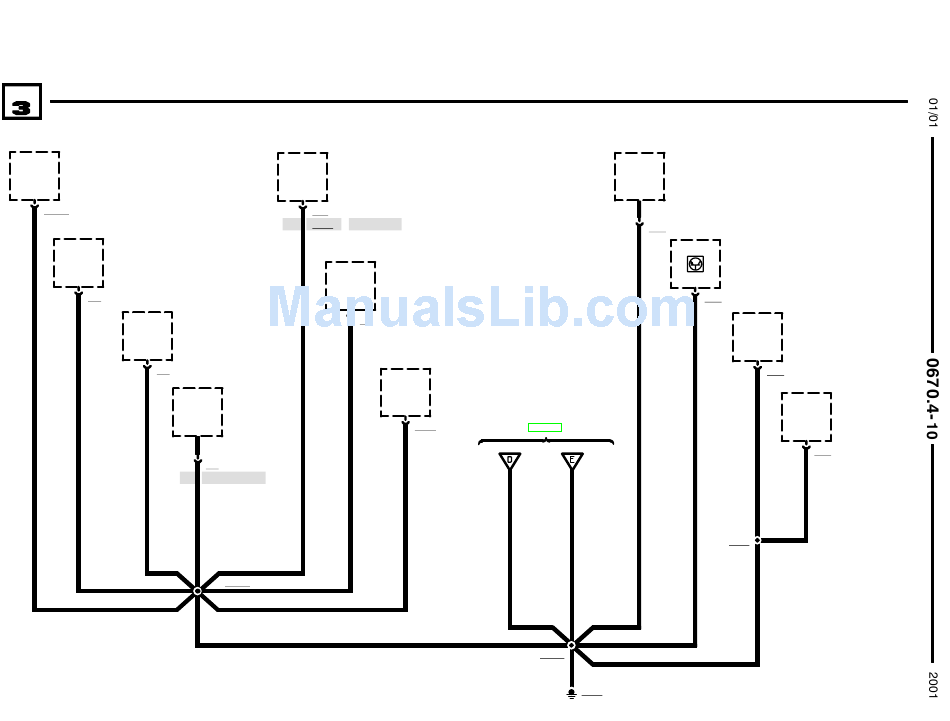

GROUND DISTRIBUTION
BMW BMW BMW BM
GROUND X9633
Z3
K46
HIGH BEAM LIGHT
RELAY
4 X10262
K48
LOW BEAM LIGHT
RELAY
4 X45
K4
BLOWER RELAY
4 X58
.5 BR .5 BR .5 BR .5 BR
1.5 BR
B18
BRAKE FLUID
LEVEL SWITCH
2 X111
1 X9063 WITH DSC
M VERSIONS
4 X50
Y4z
WATER VALVE
3 X85
2 M VERSIONS
.5 BR .5 BR
X10024
K33a
AIR CONDITIONING
RELAY, MOTRONIC
M VERSIONS
K104
AIR CONDITIONING
RELAY/AUXILIARY
WATER PUMP
4 X1602
0670.4-09
.5 BR 1.5 BR 1.5 BR
X11353
4 BR
M3
WIPER MOTOR
1 X333
A51
WIPER/WASHER
MODULE
7 X285
8
2.5 BR 2.5 BR .5 BR
X1107
1 BR
X9633
K25
RIGHT PARK LIGHT/LICENSE
PLATE LIGHT RELAY
X509
K26
LEFT PARK LIGHT
RELAY
6 X510
.5 BR
CANADA
