Ground X6454 - BMW Z3(E36/7) Electrical Troubleshooting Manual

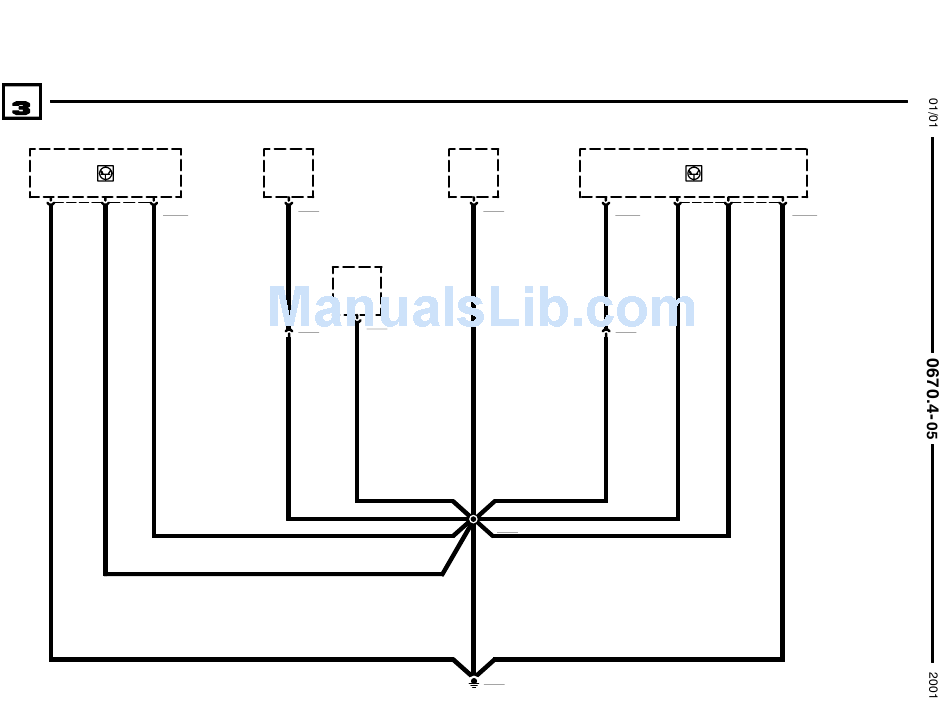

GROUND DISTRIBUTION
BMW BMW BMW BM

GROUND X6454

Z3
A7000
TRANSMISSION
CONTROL MODULE
(EGS)
4 5 6 X70001
1.5 BR/OR 1.5 BR 1.5 BR
B6254
THERMAL OIL
LEVEL SWITCH
2 X6254
.5 BR
K6327
INJECTION VALVES
RELAY
4 X6327
4 X6053
.5 BR .5 BR
M6506
E–BOX FAN
2 X6506
5 X60005
2.5 BR
2 X6054
.5 BR 2.5 BR
X6458
4 BR
X6454
Z3 VERSIONS
A6000
ENGINE CONTROL
MODULE (DME)
5 6 4 X60001
1.5 BR 1.5 BR 1.5 BR/OR
