Grounds X494, X861, X1116, And X1441 - BMW Z3(E36/7) Electrical Troubleshooting Manual

GROUND DISTRIBUTION
BMW BMW BMW BM

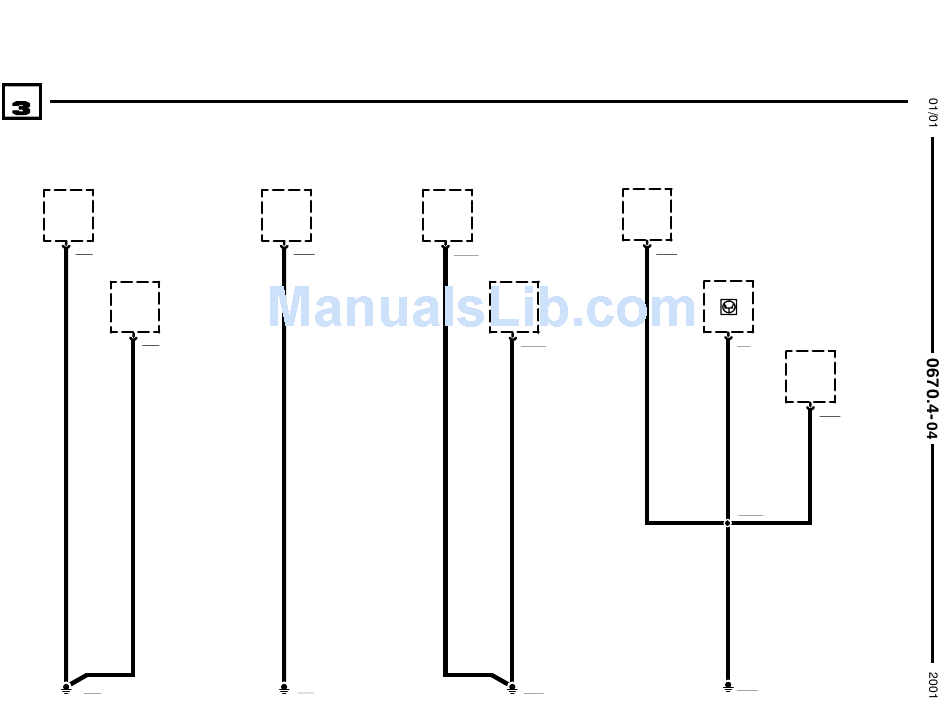

GROUNDS X494, X861, X1116, AND X1441

Z3
S127y
PASSENGER'S
POWER WINDOW
SWITCH
4 X324
S16y
DRIVER'S POWER
WINDOW SWITCH
4 X316
.5 BR .5 BR
X494
M VERSIONS
Y6133
AIR PUMP
1 X6133
5
4 BR 2.5 BR
X861
K18364
CONVERTIBLE
TOP RELAY II
(OPEN)
X18364
K18363
CONVERTIBLE TOP
RELAY I (CLOSE)
5 X18363
2.5 BR .5 BR/SW
X1116
B78
DRIVER'S SIDE
IMPACT SENSOR
1 X1885
A12
SUPPLEMENTAL RESTRAINT
SYSTEM CONTROL MODULE
6 X74
1
.5 BR/SW .5 BR/SW
X10237
1 BR/SW
X1441
B79
PASSENGER'S
SIDE IMPACT
SENSOR
X1886
