GROUND DISTRIBUTION
BMW BMW BMW BM

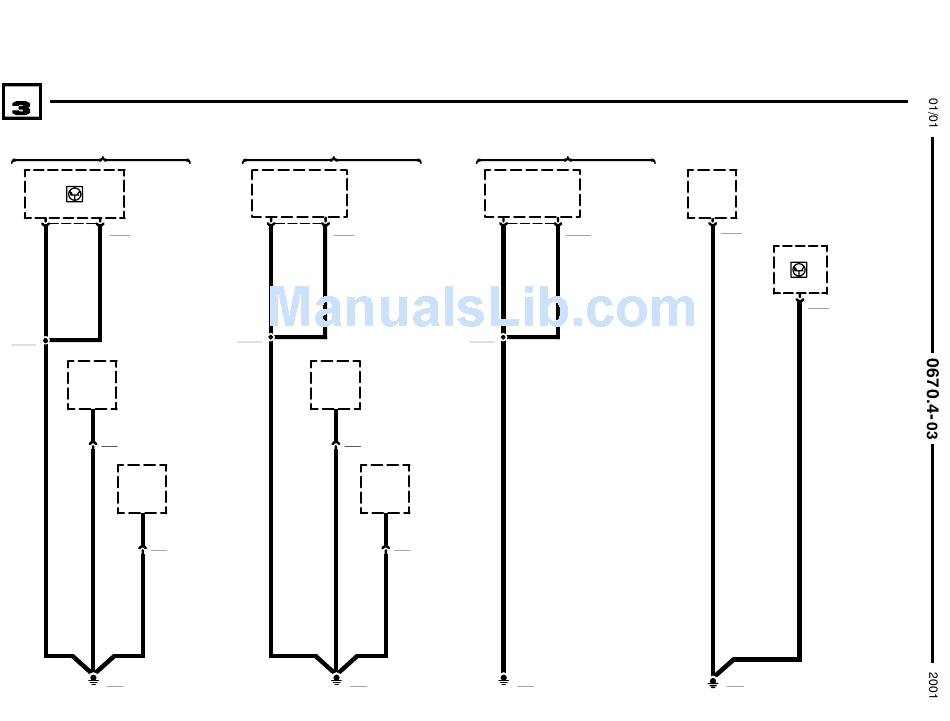

GROUNDS X170 AND X492

Z3
WITH ASC
A52
SLIP CONTROL
MODULE
(ABS/ASC)
8 24 X1170
2.5 BR 2.5 BR
X18510
B2
LEFT FRONT
SPEED SENSOR –
ABS
3 X114
B1
RIGHT FRONT
SPEED SENSOR –
ABS
3 X113
4 BR .5 BR .5 BR
X170
Z3 VERSIONS EARLY PRODUCTION
AND M VERSIONS WITH DSC
A65
DYNAMIC STABILITY
CONTROL UNIT (DSC)
1 29 X1746
2.5 BR 2.5 BR
X18510
B2
LEFT FRONT
SPEED SENSOR –
ABS
3 X114
B1
RIGHT FRONT
SPEED SENSOR –
ABS
3 X113
4 BR .5 BR .5 BR
X170
Z3 VERSIONS LATE PRODUCTION
WITH DSC
A65
DYNAMIC STABILITY
CONTROL UNIT (DSC)
16 47 X18303
2.5 BR 2.5 BR
X18510
4 BR
X170
Z3 VERSIONS EARLY PRODUCTION
AND M VERSIONS WITH DSC
M118
PRECHARGE PUMP
1 X1656
WITH DSC
R33
STEERING ANGLE
SENSOR
5 X1658
2.5 BR .5 BR
X492
