Fuses 19, 20, 21, And 22 - BMW Z3(E36/7) Electrical Troubleshooting Manual

FUSE DETAILS
BMW BMW BMW BM

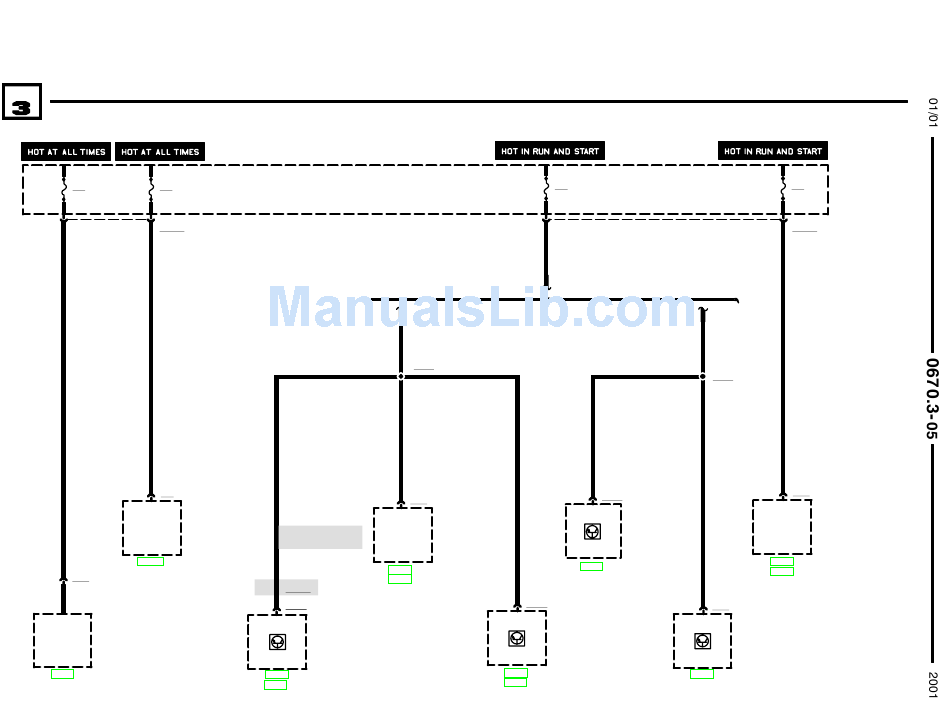

FUSES 19, 20, 21, AND 22

Z3
F19 F20
30A 30A
18 20 X10016
2.5 RT/GE 2.5 RT/GN
6 X58
K4
30
BLOWER RELAY
6450.6
13 X275
2 RT/GE
S51
DRIVER'S SEAT,
SEAT CONTROL
SWITCH
5200.0
WITH DSC
.5 GN/BL/GE .5 GN/BL/GE
1
Z3 VERSIONS
LATE PRODUCTION
3452.1
3452.2
4 X18303
12 X1746
A65
DYNAMIC STABILITY
CONTROL UNIT
(DSC)
3452.1
3452.2
F21
5A
2
.5 GN/BL/GE
X1163
.5 GN/BL/GE .5 GN/BL/GE
4
X521
S6y
DSC SWITCH
3450.1
2 X1658
R33
STEERING ANGLE
SENSOR
3452.1
3452.2
4
.5 GN/GE
WITH ASC
X1163
.5 GN/BL/GE
2
X1170
A52
SLIP CONTROL
MODULE
(ABS/ASC)
6300.0
6312.0
1 X521
S6
ASC SWITCH
3450.1
P90
FRONT POWER
F22
DISTRIBUTION BOX
5A
X10017
X503
S8
LIGHT SWITCH
