FUSE DETAILS
BMW BMW BMW BM

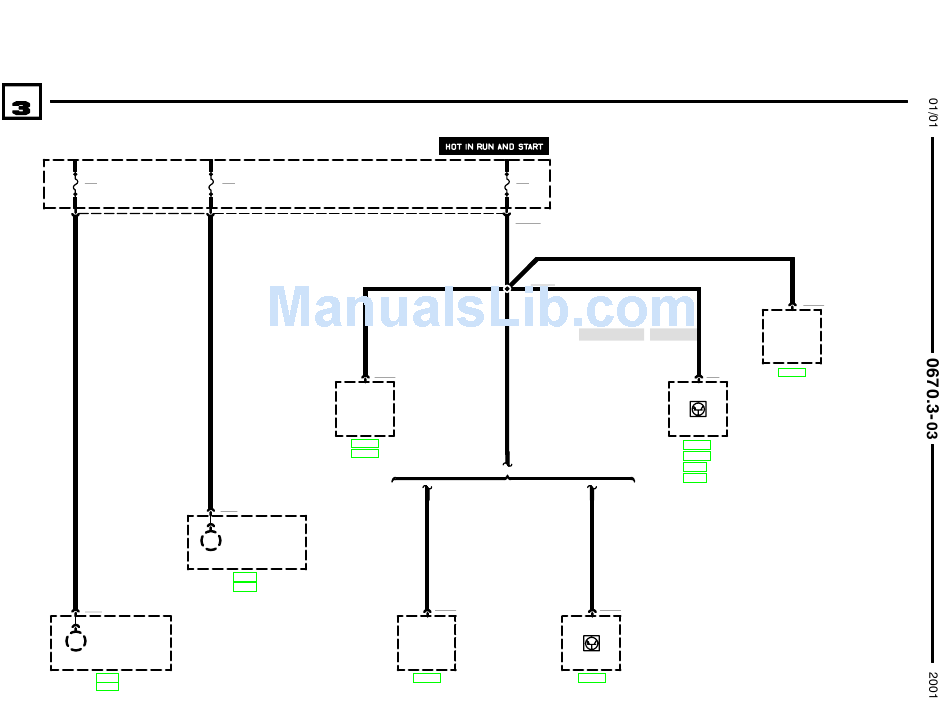

FUSES 11, 12, AND 13

Z3
56b
F11
7.5A
2
1 GE/GN 1 GE/BL
2 X130
E7
LEFT HEADLIGHT
E13
LEFT LOW BEAM
LIGHT
6312.0
6350.0
56b
F12
7.5A
4
.5 RT/WS
3
1210.26
1210.27
2 X135
E8
RIGHT HEADLIGHT
E14
RIGHT LOW BEAM
LIGHT
6312.0
6350.0
P90
FRONT POWER
F13
DISTRIBUTION BOX
5A
6 X10016
.75 RT/WS
X11212
.35 RT/WS
X1714
M119
LEAKAGE DIAGNO-
SIS PUMP
Z3 VERSIONS
8 X6301
K6301w
FUEL PUMP RELAY
1210.26
M VERSIONS
M VERSIONS .75 RT/WS
.5 RT/WS
4 X78
S30
BRAKE LIGHT
SWITCH
1210.26
1210.27
M VERSIONS
6325.0
6571.0
8 X6301
K6301z
ELECTRIC FUEL
PUMP RELAY,
TIMED
1210.27
.5 RT/WS
8 X6304
K6304
SECONDARY AIR
PUMP RELAY
1210.27
