BMW Z3(E36/7) Electrical Troubleshooting Manual page 27

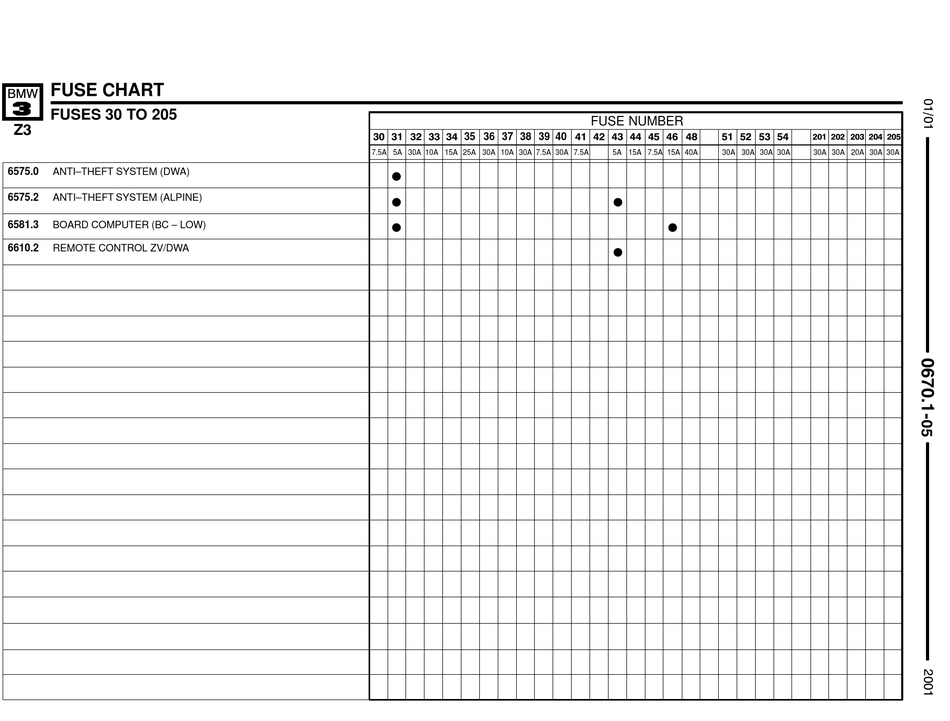

FUSE CHART
BMW BMW BMW BM
FUSES 30 TO 205
Z3
6575.0 ANTI–THEFT SYSTEM (DWA)
6575.2 ANTI–THEFT SYSTEM (ALPINE)
6581.3 BOARD COMPUTER (BC – LOW)
6610.2 REMOTE CONTROL ZV/DWA
30 31 32 33 34
35 36 37 38 39
7.5A 5A 30A 10A 15A 25A 30A 10A 30A 7.5A 30A 7.5A
D
D
D
FUSE NUMBER
40 41 42 43 44 45 46 48 51 52 53
5A 15A 7.5A 15A 40A 30A 30A 30A
D
D
D
54
201 202 203 204 205
30A 30A 30A 20A 30A 30A
