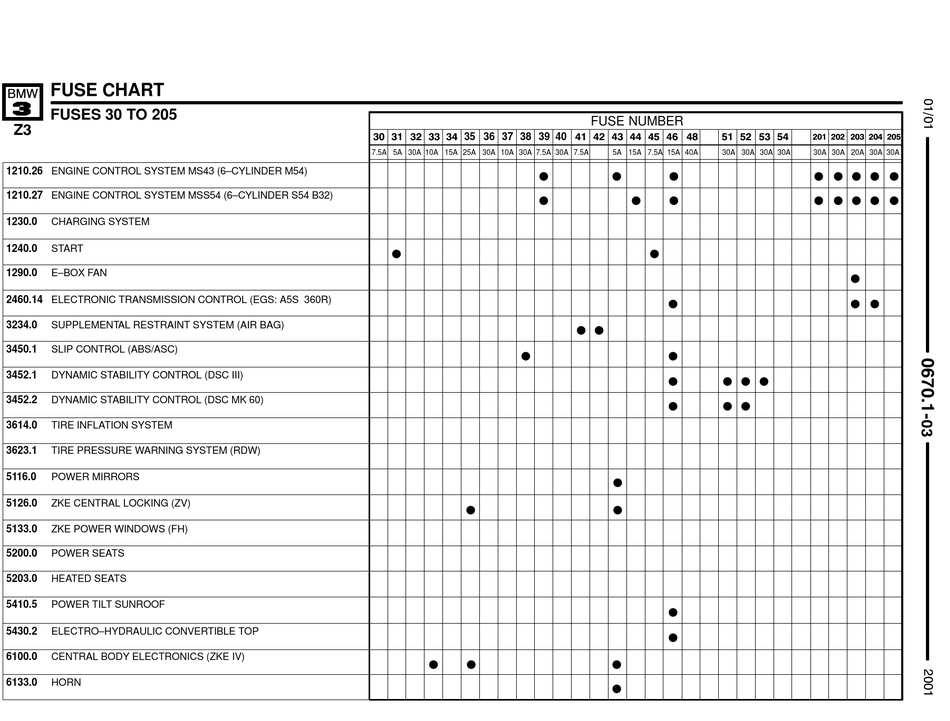

FUSE CHART
BMW BMW BMW BM

FUSES 30 TO 205

Z3
1210.26 ENGINE CONTROL SYSTEM MS43 (6–CYLINDER M54)
1210.27 ENGINE CONTROL SYSTEM MSS54 (6–CYLINDER S54 B32)
1230.0 CHARGING SYSTEM
1240.0 START
1290.0 E–BOX FAN
2460.14 ELECTRONIC TRANSMISSION CONTROL (EGS: A5S 360R)
3234.0 SUPPLEMENTAL RESTRAINT SYSTEM (AIR BAG)
3450.1 SLIP CONTROL (ABS/ASC)
3452.1 DYNAMIC STABILITY CONTROL (DSC III)
3452.2 DYNAMIC STABILITY CONTROL (DSC MK 60)
3614.0 TIRE INFLATION SYSTEM
3623.1 TIRE PRESSURE WARNING SYSTEM (RDW)
5116.0 POWER MIRRORS
5126.0 ZKE CENTRAL LOCKING (ZV)
5133.0 ZKE POWER WINDOWS (FH)
5200.0 POWER SEATS
5203.0 HEATED SEATS
5410.5 POWER TILT SUNROOF
5430.2 ELECTRO–HYDRAULIC CONVERTIBLE TOP
6100.0 CENTRAL BODY ELECTRONICS (ZKE IV)
6133.0 HORN
30 31 32 33 34
35 36 37 38 39
7.5A 5A 30A 10A 15A 25A 30A 10A 30A 7.5A 30A 7.5A
D
D
D
D
D
D D
FUSE NUMBER
40 41 42 43 44 45 46 48 51 52 53
5A 15A 7.5A 15A 40A 30A 30A 30A
D D
D D
D
D
D D
D
D D D D
D D D
D
D
D
D
D
D
54
201 202 203 204 205
30A 30A 30A 20A 30A 30A
D D D D D
D D D D D
D
D D
