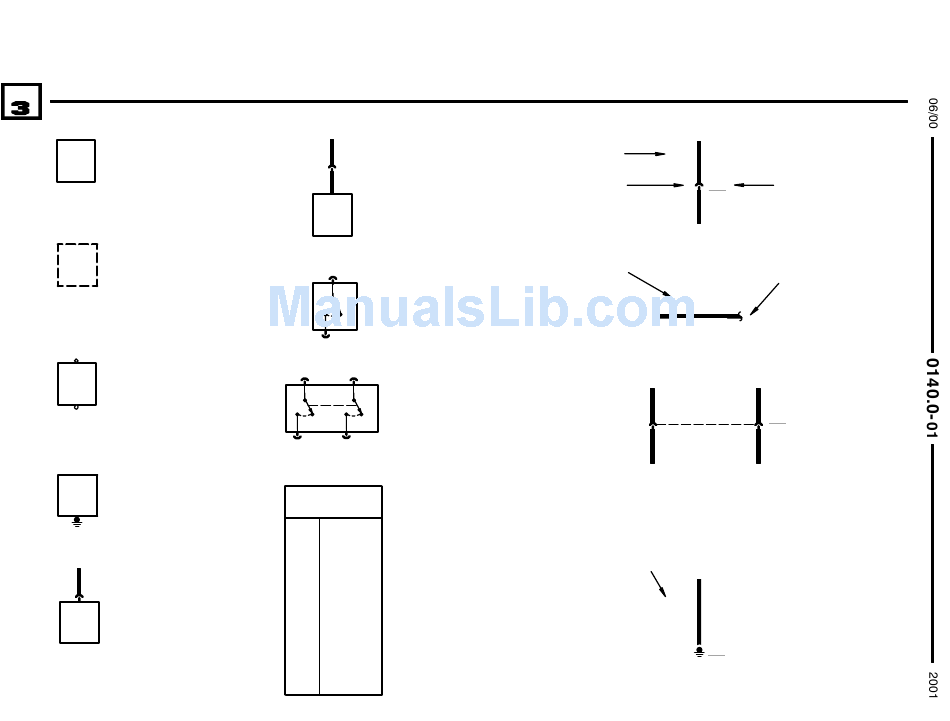

SYMBOLS
BMW BMW BMW BM
Z3
ENTIRE COM-
PONENT SHOWN
PART OF COM-
PONENT SHOWN
COMPONENT WITH
SCREW TERMINALS
COMPONENT CASE AT-
TACHED DIRECTLY TO
METAL PART OF CAR
(GROUNDED)
CONNECTOR ATTACHED
TO COMPONENT
CONNECTOR ATTACHED
TO COMPONENT LEAD
(PIGTAIL)
ONE POLE, TWO
POSITION SWITCH
1 2
SWITCHES THAT
MOVE TOGETHER
1 2 1 2
DASHED LINE SHOWS A ME-
CHANICAL CONNECTION
BETWEEN SWITCHES
WIRE COLOR
BL BLUE
BR BROWN
GE YELLOW
GN GREEN
GR GRAY
OR ORANGE
RS PINK
RT RED
SW BLACK
VI VIOLET
WS WHITE
TR TRANSPARENT
WIRE INSULATION
IS ONE COLOR
.5 BR
PIN NUMBER
4 X270
.5 BR
WIRE INSULATION
IS ONE COLOR
WITH ANOTHER
COLOR STRIPE
(GREEN WITH
WHITE) .75 GN/WS
.5 BR
3
.5 BR
WIRE SIZE IN MM
SQUARED
.75 BR
X165
CONNECTOR REFERENCE
NUMBER FOR COMPONENT
LOCATION CHART
A WAVY LINE
MEANS WIRE IS
CONTINUED
.5 BR
4 X270 TWO CONNECTIONS
(PINS) IN THE SAME
CONNECTOR
.5 BR
DASHED LINE INDICATES
TERMINALS OF THE
SAME CONNECTOR
WIRE ATTACHED
TO METAL PART
OF CAR
(GROUNDED)
GROUND NUMBERED
FOR REFERENCE ON
COMPONENT LOCATION
CHART
