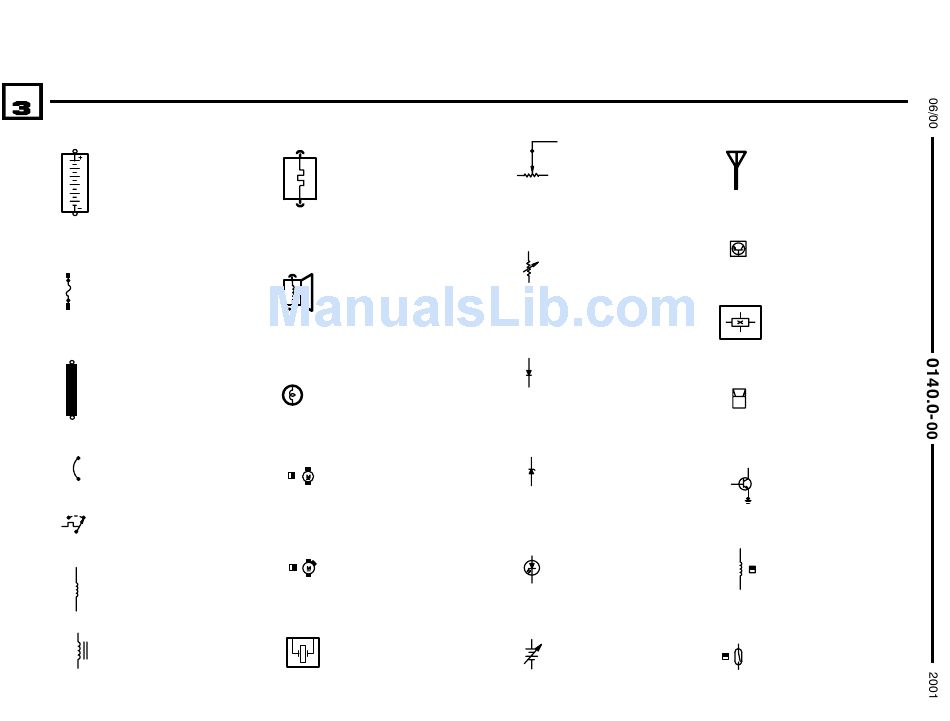

0140.0 SYMBOLS

BMW BMW BMW BM
Z3
BATTERY
FUSE DETAILS
FUSIBLE LINK
CIRCUIT BREAKER
THERMO SWITCH
SOLENOID
SOLENOID CONTROLLED
VALVE OR CLUTCH SOLENOID
HEATING ELEMENT
LOUDSPEAKER OR
HORN
LIGHT
PERMANENT MAGNET
MOTOR ONE SPEED
PERMANENT MAGNET
MOTOR TWO SPEEDS
KNOCK SENSOR
VARIABLE RESISTANCE
SENSOR VARIABLE CONTACT
IS MOVED BY AN EXTERNAL
FORCE
VARIABLE RESISTOR RESIS-
TANCE IS CHANGED BY
TEMPERATURE OR PRESSURE
DIODE CURRENT CAN
FLOW ONLY IN DIREC-
TION OF ARROW
ZENER DIODE TO
REGULATE VOLTAGE
LIGHT EMITTING
DIODE (LED)
OXYGEN SENSOR
ANTENNA
CONTROL/POWER
ELECTRONICS
HALL EFFECT
SENSOR
RADIO
TRANSISTORIZED
SWITCH
31
INDUCTIVE
N
SENSOR
S
N
VEHICLE SPEED
SENSOR
S
