BMW Z3(E36/7) Electrical Troubleshooting Manual page 107

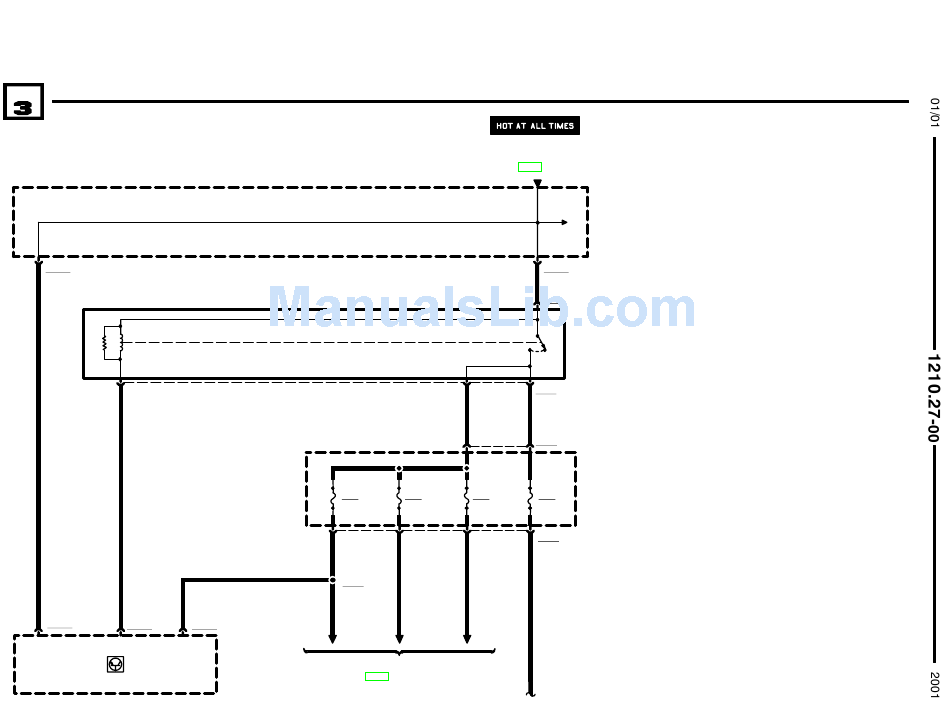

ENGINE CONTROL SYSTEM MSS54 (6–CYLINDER S54 B32)
BMW BMW BMW BM
Z3
1 X64101
85
4
1.5 RT .5 BR/WS
2.5 RT/WS/GE
7 X60001
23 X60002 8
15
F202
30A
4
4 RT/WS/GE 1.5 RT/WS
X6960
2.5 RT/WS/GE
X60001
A6000
ENGINE CONTROL
MODULE (DME)
FUSE DETAILS
0670.3
POWER
DISTRIBUTION
0670.2
2 X64102
4 RT
6 X6300
30
87 87
2 5 X6300
4 RT/WS 2.5 RT/WS
5 1 X8680
15 15 15
F204 F203 F201
30A 20A 30A
8 6 2 X8680
4 RT/WS 2.5 RT/WS
M VERSIONS
G6400
B+ JUNCTION
POINT E–BOX
K6300
ENGINE CONTROL
MODULE RELAY
P98
FUSE HOLDER IN
E–BOX
