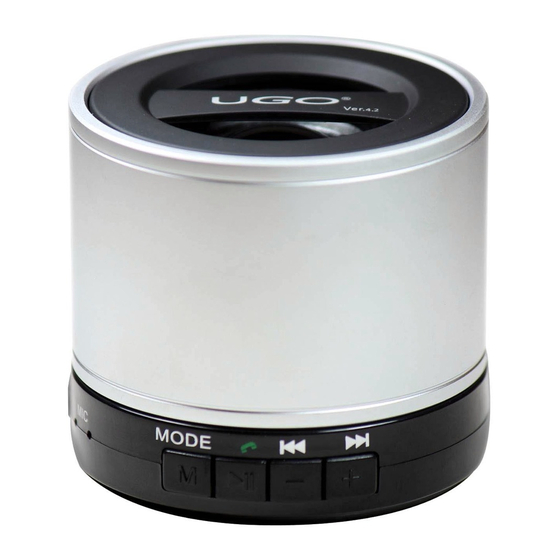

Summary of Contents for Ugo Vs 4.0
-
Page 2: Package Contents
When the UGO is searching for FM stations the yellow light will blink rapidly. When playing an FM station the yellow light will blink slowly. Mode 4. Line Connection. Plug the single end of the 2 in 1 cable (mini USB plug) into the UGO speaker. The double end of the 2 in 1 cable has a 3.5 mm headphone plug - this can be inserted into any audio device with a corresponding 3.5 mm jack. - Page 3 WHAT THE BUTTONS DO: Off/On. This button turns the UGO on and off. The UGO has a lengthy stand by mode but to conserve your battery do not leave the UGO on if not in use. Mode. Push this button to cycle through audio modes. You can switch easily between the Line connection, Bluetooth, Micro Sd or FM Radio mode.
- Page 4 CARE OF YOUR UGO: Do not let the UGO come in contact with water. Do not leave it in direct sunlight or other hot place. Do not store your UGO with a dead battery. Clean with soft cloth. Do not use harsh chemicals to clean. Do not drop or place heavy objects on the UGO. Never try to repair or open your UGO yourself.
- Page 5 Make sure the volume of your device is turned up. Make sure the volume on the speaker is turned up. Check to be sure the UGO is in the correct MODE. Do this by pushing the MODE button. Make sure that the play/pause button is not in pause position.
- Page 6 If another device is already paired to the UGO you need to turn off the Bluetooth function or power of that device or un- pair it from the UGO to connect a new device. When you turn on the UGO you will know it is available to pair if the blue light blinks rapidly.
- Page 7 My FM radio stations do not come in Try using the charging cable as an clearly. antenna. Plug in normally. You can even charge the UGO at the same time. Radio signals must be strong for a good connection.
-
Page 8: Block Diagram
Specification Contents: 1. General specification 2. Product photo 3. Pin Functions 4. Block diagram 5. Example Application Schematic 6. Application software 1. General Specification General Description BlueCore® BC6145™ Module is a low cost fully featured ROM IC solution for Bluetooth mono headsets with extremely low power consumption. - Page 10 3. Pin Functions PIN Name PIN# Description Pad Type 1,8,15,28,30,31,3 Ground port 2,33 UART data input, active high. Bidirectional with weak internal pull down UART data output, active high. Bidirectional with weak internal pull up PIO_3 Bidirectional with Programmable input/output line programmable PIO[3] is chip select for SPI flash strength...
- Page 11 Multi Functional Button VREGENABLE_H Lithium ion/polymer battery charger VDD_CHG input BATT Lithium ion/polymer battery positive BAT_P terminal. Battery charger output input switch mode regulator MOSI SPI data input Input, with weak internal pull down SPI clock Bidirectional with weak internal pull down Chip select for SPI, active low Bidirectional...
- Page 12 4. Application Block diagram...
- Page 13 5. Example Application Schematic...
-
Page 14: Electrical Characteristics
6. Electrical Characteristics 7.1 Absolute Maximum Ratings Rating Storage temperature Supply voltage: +5V (Charger IN) 6.5V 7.2 Recommended Operating Conditions Operating Condition Operating temperature range Supply voltage: +5V (Charger IN) 4.75V 5.25V Supply voltage: BATT 3.0V 4.2V... - Page 15 Warranty Info Your UGO speaker is guaranteed to be free of defects for twelve (12) months from date of purchase. Simply return the defective UGO with your original receipt for free repair or replacement. Warranty void if the speaker has been tampered with.
