Sarowin SR-09 User Manual

2.4~2.5ghz wireless audio/video sender

Advertisement

Quick Links

2.4~2.5GHz Wireless Audio/Video Sender

User Manual

SR-09
Package Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR-09 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sarowin SR-09

  • Page 1: User Manual

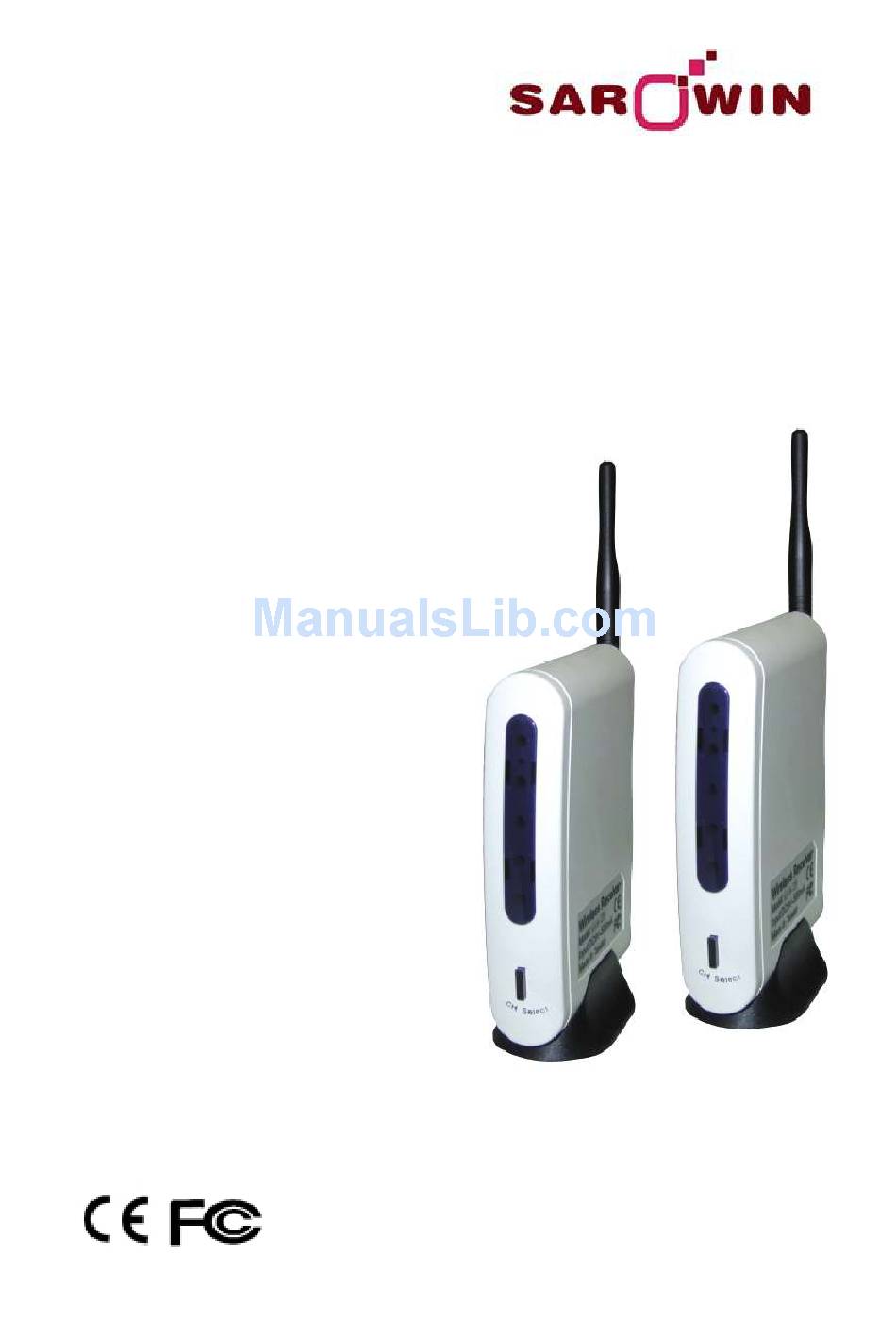

    2.4~2.5GHz Wireless Audio/Video Sender User Manual SR-09 Package Contents...
  • Page 2: Product Layout

    • Transmitter x 1 • Receiver x 1 • Infrared (IR) eye cable x 1 • Audio/Video cable x 2 • Power adaptors (DC6V) x 2 • User manual x 1 Note: The transmitter and the receiver look very similar. You can find “transmitter”...
  • Page 3 Fig. 2 Receiver/Transmitter Fig. 3 Transmitter Receiver Setting Up Before you make the connection: • Set the channel by pressing the select button on the front of the transmitter and the receiver to the same channel. 1. Setting up the Transmitter Connect the Transmitter to an A/V Component...
  • Page 4 A/V Connection Connect the mini-plug of the provided A/V cables to the A/V jack on the rear of the transmitter; connect the other end of the cables to the A/V jacks (or Scart connector) of the A/V component labeled LINE OUT. See Fig.
  • Page 5: Power Supply

    Fig. 5 Transmitter A/V Cable (Red to red, white to white, and yellow to yellow) RF OUT VHF/UHF VIDEO AUDIO IN A/V Component Note 1: On a NTSC system, the connector on the A/V equipment is an RCA jack. Connect the yellow plug to the jack labeled VIDEO, the red plug to the jack labeled AUDIO RIGHT and the white plug to the jack labeled AUDIO LEFT.
  • Page 6: Setting Up The Receiver

    Fig. 6 POW ER ON-OFF Wall Outlet Transmitter 2. Setting up the Receiver Connect the Receiver to a TV A/V Connect – for TV with A/V Input Jacks Connect the mini-plug of the provided A/V cables to the A/V jack on the rear of the receiver;...
  • Page 7 RF Connection – for TV without A/V Input Jacks If there is no A/V input jacks on your TV, you will need to get an RF modulator (available at your local electronics store) to make the connection between TV and receiver. See Fig. 8. Fig.
  • Page 8 Fig. 9 Receiver A/V Cable (Red to red, white to white, and yellow to yellow) RF OUT VHF/UHF VIDEO AUDIO IN A/V Component Note 1: Connect the yellow plug to the jack labeled VIDEO, the red plug to the jack labeled AUDIO RIGHT and the white plug to the jack labeled AUDIO LEFT.
  • Page 9: Other Applications

    Other Applications Using Remote Control The Wireless A/V Sender gives you the ability to control A/V components from another room using your existing remote control device. To use this function, follow the steps below: 1. Place the transmitter next/close to the A/V source component and plug the IR eye into the jack located on the rear of the transmitter (IR Eye plug).
  • Page 10: Specifications

    2. Position the receiver so that your remote control signal can strike the IR window on the front of the receiver. Set the remote antenna on the receiver straight. Do not bend the remote antenna. 3. To use your remote control, point it at the front of the receiver and operate it as you normally would.
  • Page 11: Care And Maintenance

    modulator (3 or 4). If the signal is poor, or there is interference • Adjust the transmitter by rotating orientations until you get the best reception. • Change the channel on both transmitter and receiver and make them the same. •...
  • Page 12 caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.
