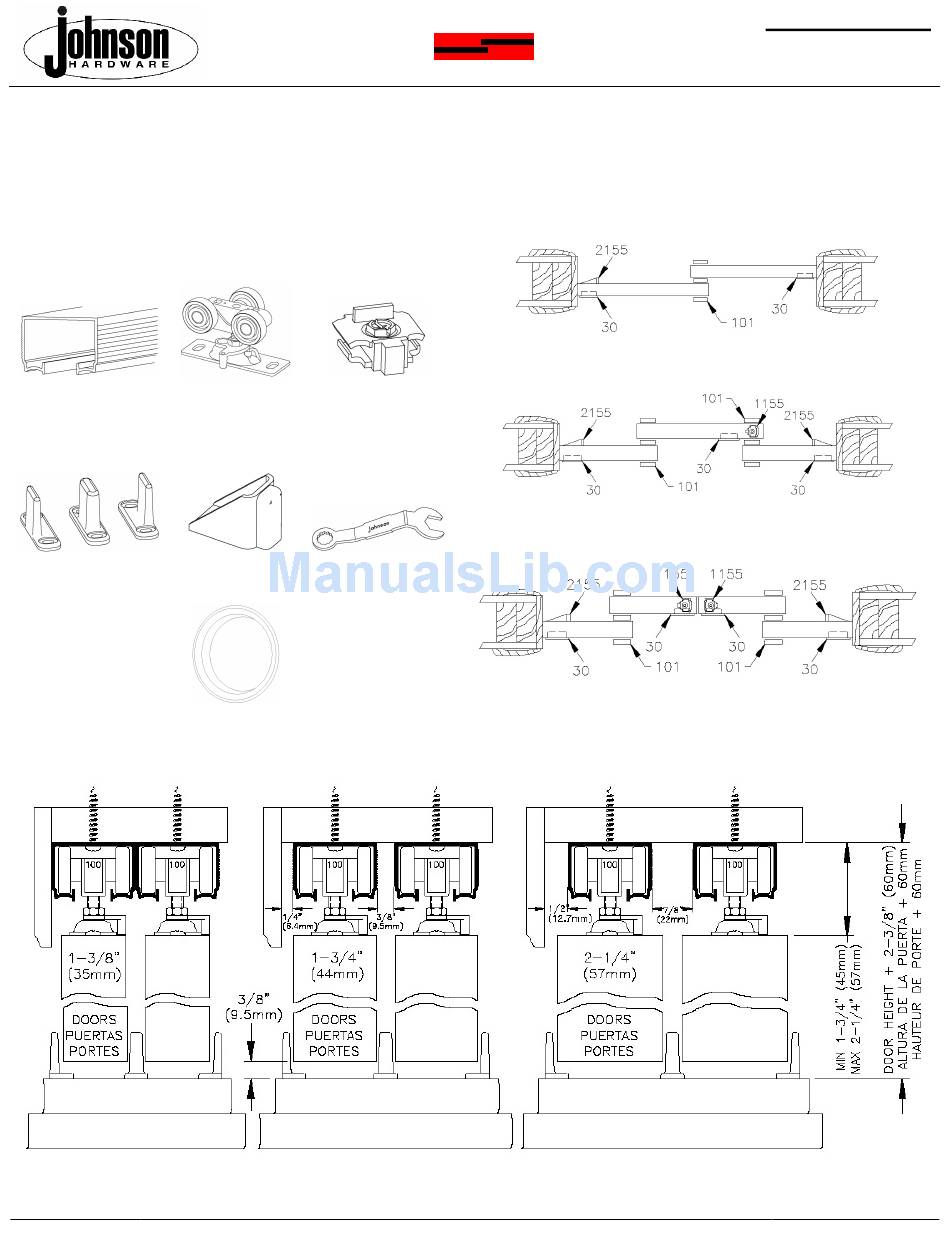

PREPARE OPENING CAREFULLY: MAKE SURE CORNERS ARE SQUARE, HEADER IS LEVEL AND JAMBS ARE STRAIGHT.
PREPARE LA ABERTURA CON CUIDADO: ASEGÚRESE QUE LAS ESQUINAS ESTÉN EN ESCUDRA, QUE LA CABECERA ESTÉ NIVELADA, Y
QUE LAS JAMBAS ESTÉN RECTAS.
PREPAREZ L'OUVERTURE AVEC PRECAUTION : ASSUREZ VOUS QUE LES COIN SONT A ANGLE DROIT, QUE LE LINTEAU EST A NIVEAU
ET QUE LES MONTANTS SONT DROITS.
100
101
L.E. JOHNSON PRODUCTS INC. 2100 STERLING AVENUE, ELKHART, IN 46516 USA
IN100BYP
tel. +1 (574) 293-5664 | info@johnsonhardware.com | http://www.johnsonhardware.com
SLIDING DOOR
INSTALLATION INSTRUCTIONS
1155
1125
2155
1712
30
2 DOOR, PUERTAS, PORTES
3 DOOR, PUERTAS, PORTES
4 DOOR, PUERTAS, PORTES
100SD SERIES
FOR 1-3/8" [35mm], 1-3/4" [44mm] or
2-1/4" DOORS WEIGHING UP TO
200LBS. [91kg.] EACH
2 x DOOR WIDTH -1"
2 x ANCHO DE LA PUERTA – 25mm
2 x LARGEUR DE PORTE – 25mm
3 x DOOR WIDTH -2"
3 x ANCHO DE LA PUERTA – 50mm
3 x LARGEUR DE PORTE – 50mm
4 x DOOR WIDTH -2"
4 x ANCHO DE LA PUERTA – 50mm
4 x LARGEUR DE PORTE – 50mm
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Johnson Hardware 100SD Series
Summary of Contents for Johnson Hardware 100SD Series
-
Page 1: Installation Instructions
2 DOOR, PUERTAS, PORTES 1155 3 DOOR, PUERTAS, PORTES 1712 4 DOOR, PUERTAS, PORTES 100SD SERIES FOR 1-3/8” [35mm], 1-3/4” [44mm] or 2-1/4” DOORS WEIGHING UP TO 200LBS. [91kg.] EACH 2 x DOOR WIDTH -1” 2 x ANCHO DE LA PUERTA – 25mm 2 x LARGEUR DE PORTE –... - Page 2 MOUNT TRACK TO HEADER: Cut track to fit opening. Insert 1125 Hangers and 1155 Track Stop (3 and 4 door openings only) into track and mount to header with 1-1/4” [32mm] pan head screws. COLQUE EL RIEL EN LA CABECERA: Corte el riel para que quepa en la abertura, inserte los Colgadores 2020 y el Freno 2055 (sólo para aberturas de 3 o 4 puertas) en el riel e instálelos en la cabecera con tornillos de cabeza redonda de 32mm.
- Page 3 AJUSTEZ LES ROULETTES: si nécessaire, pour mettre à plomb les portes et les montants. INSTALL 2155: Attach 2155 Stop on rear of front door 1-½” [38mm] from jamb edge, ½” [13mm] from top (hollow core doors) or 40” [100cm] from bottom (solid core doors).
- Page 4 3 AND 4 DOOR 1155 STOP: (3 door opening) Attach the 1155 Stop on the rear track to the right of the center door, (4 door openings) Attach the 1155 Stops to the rear track in the center of the opening.
