Jetcom CCTV SS-HDR-82 User Manual

4/8/16-ch network dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
pre-record
VGA
H.264
HDMI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS-HDR-82 and is the answer not in the manual?

Questions and answers

Related Manuals for Jetcom CCTV SS-HDR-82

Summary of Contents for Jetcom CCTV SS-HDR-82

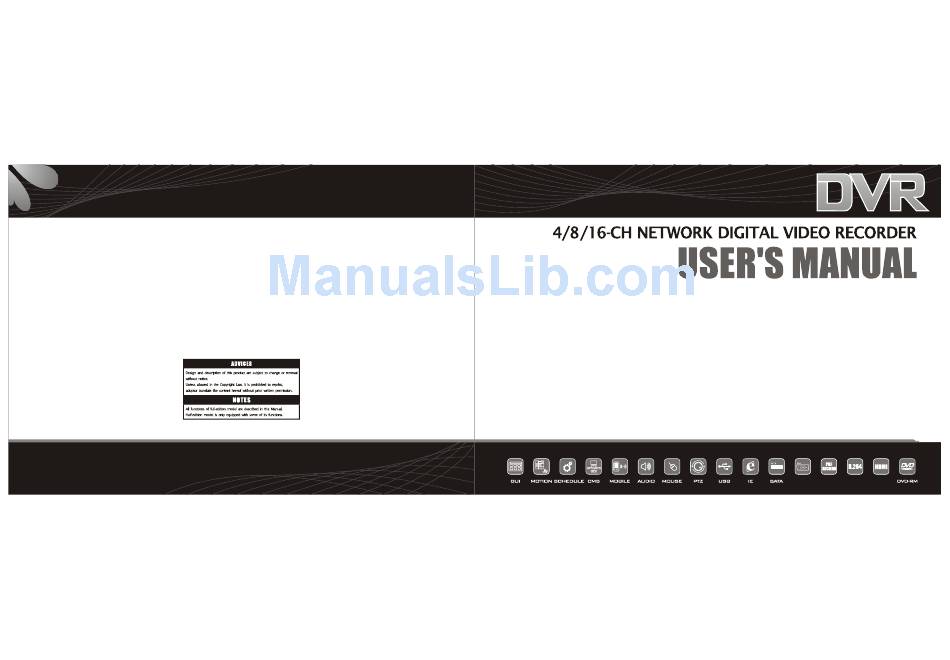

  • Page 1 pre-record H.264 HDMI...
  • Page 2 Network Digital Video Recorder Operation Manual ( V1.0 ) CAUTIONS In order to ensure your rights and interests, please read this manual carefully before you install and use the DVR. Use the appropriate adapter for the DVR. To protect the main chip from thunder striking, please make sure the ground wire is correctly connected before using the DVR.
  • Page 3 Network Digital Video Recorder Operation Manual ( V1.0 ) Before connecting to other facilities, please disconnect the power supply and pull the power line plug out from the power socket. In case of any solid or liquid coming into the case, please disconnect the power supply immediately, and the DVR can be restarted only after being checked by qualifi ed se rvicemen.

  • Page 4: Table Of Contents

    Network Digital Video Recorder Operation Manual ( V1.0 ) Table of contents Chapter I Product Introduction 1.1 Summary 1.2 Functions and features Chapter II Operation instructions 2.1 Description of front panel 2.2 Description of rear panel 2.3 Connection figure of rear panel 2.4 Description of alarm port in the rear panel 2.5 Remote control operation 2.6 Mouse operation...
  • Page 5 Network Digital Video Recorder Operation Manual ( V1.0 ) 3.2 System setup 3.3 Camera setup 3.4 Record setup 3.5 Schedule setup 3.6 Motion alarm 3.7 PTZ setup 3.8 Network setup 3.9 Alarm setup 3.10 Disk management 3.11 User setup Chapter IV Basic Operations 4.1 Turn on DVR 4.2 Live screen 4.3 Software update...
  • Page 6 Network Digital Video Recorder Operation Manual ( V1.0 ) 4.5 System information 4.6 Log list 4.7 Recording preparation 4.8 Recording operation 4.9 Search, playback and backup 4.10 Audio setup 4.11 SEQ 4.12 Spot output 4.13 User login 4.14 PC Client software instruction 4.15 Power off Appendix 1 Technical parameters Appendix 2 Trouble shooting...

  • Page 7: Chapter I Product Introduction

    Network Digital Video Recorder Operation Manual ( V1.0 ) Chapter I Product Introduction Summary This equipment is a standalone digital hard disk video recorder specially designed for security. It adopts the embedded processor and embedded operating system and integrates with latest technologies in IT field, such as video frequency/audio frequency compression/decompression, large capacity hard disk storage, TCP/IP network remote control etc., investing the system with high intellectualization and stability.
  • Page 8 Network Digital Video Recorder Operation Manual ( V1.0 ) Support CMS. Support DDNS. Support network preview, playback, setup, remote recording, PTZ control and camera name setup. Support IE browsing and Network remote Client. Support Internet backup ,USB backup. Support mouse operation with high sensitivity. Support 2000G hard disk and DVD Writer.

  • Page 9: Chapter Ii Operation Instructions

    Network Digital Video Recorder Operation Manual ( V1.0 ) Chapter II Operation Instructions Description of front panel Front panel A: Front panel A: Name Icon Description Press it to turn on/off the DVR. The same as the " " key in the remote control. Power a) input numbers.
  • Page 10 Network Digital Video Recorder Operation Manual ( V1.0 ) Record LED indicator light. It is on in recording mode. Remote signal receiver LED indicator light. It is on in remote control usable mode. LED Indicator Alarm LED indicator light. It is on when alarm happened. ALARM light Network LED indicator light.
  • Page 11 Network Digital Video Recorder Operation Manual ( V1.0 ) Press it to enter PTZ mode, press again to exit. Backup Press it to enter backup menu. COPY press it once to pop up a tool menu on the top right of the screen, press it again Information INFO to enter into system information menu, press it three times to pop up log list menu.
  • Page 12 Network Digital Video Recorder Operation Manual ( V1.0 ) In playback mode: rotate the shuttle outer ring Leftward / rightward once to fast backward/forward at 2 speed, rotate it twice to play at 4 speed; Rotate it third time to play at 8 speed, four times for 16 , five times for32 , six times for 64 ,In menu mode: rotate the shuttle outer ring leftward/rightward once to in Shuttle crease/decrease the set value, rotate it leftward /rightward to the end to increase/...
  • Page 13 Network Digital Video Recorder Operation Manual ( V1.0 ) Front panel B: Front panel B: Name Description Icon press it once to pop up a tool menu on the top right of the screen, press it again Information key INFO to enter into system information menu, press it three times to pop up log list menu.
  • Page 14 Network Digital Video Recorder Operation Manual ( V1.0 ) It is red in running mode, it is green in standby mode. It is off in power off mode. POWER Hard drive LED indicator light. It will flash when the HDD is being used. Lock LED indicator light.
  • Page 15 Network Digital Video Recorder Operation Manual ( V1.0 ) Menu MENU Press it to pop up the main menu. Press it to exit from the i nferior m enu and return to the superior menu. In Exit record/playback mode, press it to turn back to live mode. Increase or decrease the data value.
  • Page 16 Network Digital Video Recorder Operation Manual ( V1.0 ) remote control. In playback mode, press it to stop playing and return to search menu; in video Stop recording mode, press it to stop recording; in PTZ mode, press it to view preset image.

  • Page 17: Description Of Rear Panel

    Network Digital Video Recorder Operation Manual ( V1.0 ) Description of rear panel Rear panel A of 4 channel: Rear panel A of 8 channel:...
  • Page 18 Network Digital Video Recorder Operation Manual ( V1.0 ) Rear panel A of 16 channel: Description Port Video input Standard BNC port, connected with the camera and speed dome. Video output Connected with the video input of the monitor. Connected with spot output device to view the live image independently. SPOT Standard RJ-45 network port, connected to network cable and used for remote browse or control.
  • Page 19 Network Digital Video Recorder Operation Manual ( V1.0 ) Connected to USB pendrive or mouse and used for system so ftw are upgrade or video file backup; It supports hot plug. RS485 devide into A and B. it can control PTZ via the mouse, remote control and network Client.
  • Page 20 Network Digital Video Recorder Operation Manual ( V1.0 ) Rear panel B of 4 channel: Rear panel B of 8 channel:...
  • Page 21 Network Digital Video Recorder Operation Manual ( V1.0 ) Rear panel B of 16 channel: Description Port Video input Standard BNC port, connected with the camera and speed dome. Video output Connected with the video input of the monitor. SPOT Connected with spot output device to view the live image independently.
  • Page 22 Network Digital Video Recorder Operation Manual ( V1.0 ) Connected to USB pendrive or mouse and used for system so ftw are upgrad e or video file backup; It supports hot plug. RS485 devide into A and B. it can control PTZ via the mouse, remote control and network Client.

  • Page 23: Connection Figure Of Rear Panel

    Network Digital Video Recorder Operation Manual ( V1.0 ) Connection figure of rear panel Take 16 channel DVR as example to show how to connect. camera1 camera16 video output SPOT output Video input alarm port power Input USB port audio output VGA output CH11 YPbPr output...

  • Page 24: Description Of Alarm Port In The Rear Panel

    Network Digital Video Recorder Operation Manual ( V1.0 ) Description of alarm port in the rear panel Connection figure of alarm input and output. alarm input alarm input alarm input alarm output alarm output alarm output 4 channel 8 channel 16 channel Description: (1) "1-16"...

  • Page 25: Remote Control Operation

    Network Digital Video Recorder Operation Manual ( V1.0 ) Remote control operation 1. Installing the remote control Open the battery cover, install two batteries (Type No.7), make sure positive and negative poles are right, then close the battery cover. 2. Using the remote control Before using it, please confirm that batteries have been installed correctly.When using it, please aim IR TX (transmitter) of the remote control at IR reception of the DVR.Then the IR light in the front panel is on and the icon on the top-right of the monitor screen turns to blue...
  • Page 26 Network Digital Video Recorder Operation Manual ( V1.0 ) Function description: In normal running mode, press " " key to pop up a menu to prompt whether to Power turn off. The DVR will be turned off . Press the key about 3 seconds, the DVR will start.
  • Page 27 Network Digital Video Recorder Operation Manual ( V1.0 ) In playback mode, press key to play images forward or backward at Forward 2X speed. Press it twice to play at 4X speed. Press it third time to play at 8X speed, Rewind four times for 16X, five times for32X, six times for 64X, Direction...

  • Page 28: Mouse Operation

    Network Digital Video Recorder Operation Manual ( V1.0 ) I+/I- In PTZ control mode, "I+/I-" key is used to enlarge/ reduce the iris (aperture). IRIS CRUISE Standby FOPEN FCLOSE Mouse operation USB mouse can be used. Hot swap for mouse is supported. Move the mouse cursor onto the mouse icon to see the name.

  • Page 29: Chapter Iii Menu Setup

    Network Digital Video Recorder Operation Manual ( V1.0 ) 1 Move the cursor. Move the mouse 2 Move the cursor to the bottom of the screen to pop up the mouse tool bar. Move the cursor onto the icon to show the name. 1 To select shield area in "Camera setup".

  • Page 30: System Setup

    Network Digital Video Recorder Operation Manual ( V1.0 ) Main menu System setup (1) Time setup: used to adjust the system date and time. (2) Time format: used to set the format of date display, Asia/Europe/America are optional. (3) Time DISP POS: display position of time and date, top middle / bottom middle / no display are optional. (4) Border DISP: to select the color of borders, green/black/white/off are optional.
  • Page 31 Network Digital Video Recorder Operation Manual ( V1.0 ) (6) Remote ID: used to set the remote control ID corresponding to the current machine so as to make remote control, off/ on/ numbers from 0 to 9 are optional. (7) Alarm spot pop up: on/off. If it is on, once alarm happened in some channel, the full image of the channel will pop up in the spot monitor screen.

  • Page 32: Camera Setup

    Network Digital Video Recorder Operation Manual ( V1.0 ) Camera setup (1) Camera: used to select the channel to be revised parameters. (2) Camera title: used to set the camera title. Press key in the remote control / the front panel to turn into C A M E R A 0 1 bitmap, the camera title couldn't be changed.

  • Page 33: Record Setup

    Network Digital Video Recorder Operation Manual ( V1.0 ) Record setup 3 5 2 2 8 8 H I G H 3 5 2 2 8 8 H I G H 3 5 2 2 8 8 H I G H 3 5 2 2 8 8 H I G H 3 5 2 2 8 8...

  • Page 34: Schedule Setup

    Network Digital Video Recorder Operation Manual ( V1.0 ) Schedule setup A L L A L L M OT I O N T I M E M OT I O N T I M E SAVE SAVE EXIT EXIT (1) Camera: used to select the channel to be set. The parameters are effective for all channels after selecting" All CAM". (2) Day: used to select the day of video schedule.

  • Page 35: Motion Alarm

    Network Digital Video Recorder Operation Manual ( V1.0 ) Motion alarm C A M E R A 0 1 0 0 6 0 1 5 3 3 5 0 1 5 2 3 0 SAVE SAVE EXIT EXIT (1) Camera: used to select the channel to be set. (2) Sensitivity: low / high optional from "1-10".

  • Page 36: Ptz Setup

    Network Digital Video Recorder Operation Manual ( V1.0 ) PTZ setup C A M E R A 0 1 9 6 0 0 P E L C O _ D 2 SAVE SAVE EXIT EXIT (1) Camera: to select the channel to be set. (2) Baudrate: to set baudrate corresponding to the current channel PTZ.

  • Page 37: Network Setup

    Network Digital Video Recorder Operation Manual ( V1.0 ) Network setup (1) IP allocation: STATIC and DHCP/DDNS optional. (In static mode, please set IP address, gateway and subnet mask. In DHCP mode, DVR could get IP from DHCP server. Please refer to the "Client and network manual" in the accessory CD.) (2) IP address: It must be unique to avoid colliding with other DHCP.

  • Page 38: Alarm Setup

    Network Digital Video Recorder Operation Manual ( V1.0 ) Alarm setup SAVE SAVE EXIT EXIT SAVE SAVE EXIT EXIT There are two ways for alarm output, Buzzer and Relay. They include three alarm modes: (1) Video loss alarm(Loss); (2) Video motion detection alarm(Motion); (3) Sensor input alarm(Sensor).

  • Page 39: Disk Management

    Network Digital Video Recorder Operation Manual ( V1.0 ) 3.10 Disk management D I S K A 0 7 4 0 9 9 0 0 0 FORMAT FORMAT SAVE SAVE EXIT EXIT (1) Overwrite: If click " " the previous recorded video will be replaced in turn when the hard disk is full. If not, record will stop.

  • Page 40: User Setup

    Network Digital Video Recorder Operation Manual ( V1.0 ) A D M I N A D M I N _ _ _ _ _ _ _ _ _ _ _ _ 3.11 User setup Password is needed to log in by admin. Input the password by click the numbers in the menu or press the numbers in the remote control / the front panel."...

  • Page 41: Chapter Iv Basic Operations

    Network Digital Video Recorder Operation Manual ( V1.0 ) Chapter IV Basic Operations Turn on DVR Please confirm each item in "CAUTION" has been done before turning on DVR. Please check whether the system connection is correct, input 2009-09-02 12:23:18 / output equipments are connected well and the power supply is on before turning on DVR.
  • Page 42 Network Digital Video Recorder Operation Manual ( V1.0 ) (2) Channel name and record mode icon display in the bottom left of each channel. Description of record icon and mode: Is is recording by motion alarm. Red M It is recording by sensor alarm. Red S Image lost in the process of record.
  • Page 43 Network Digital Video Recorder Operation Manual ( V1.0 ) Unlocked. Click it to lock. Lock Locked. Click it to login by inputting password. Remote control is opened. Click it to close. Remote IR Remote control is closed. Click it to open. Audio output is open.

  • Page 44: Software Update

    Network Digital Video Recorder Operation Manual ( V1.0 ) Split-screen Click it to display quad, nine-split-screen an d sixte en-sp lit-s creen . Click it to starting recording. Record play Click it to enter the menu of search & playback. Stop Click it to stop recording or stop playing and return to the search menu.

  • Page 45: Ptz Control

    Network Digital Video Recorder Operation Manual ( V1.0 ) the machine. If "Update fail, try again!" pop up more than 4 times, please contact after-sales service d epartment to deal with it. In the process of update, please ensure no power breakdow n and do n't pull out USB pendrive , or update will be unsuccessful.
  • Page 46 Network Digital Video Recorder Operation Manual ( V1.0 ) Characters "PTZ: CAM01 SPEED:16 DATA:01" display on the top of the monitor screen, indicating the DVR is under PTZ control. PTZ control parameters of each channel can be modified in the system menu. Press again or press ESC key or click the icon "...

  • Page 47: System Information

    Network Digital Video Recorder Operation Manual ( V1.0 ) data of image point. Select the item which need modify by pressing key in the remote control or clicking the SPOT item directly with the mouse.Then change the data by pressing in the remote control or left/ right click with mouse.

  • Page 48: Log List

    Network Digital Video Recorder Operation Manual ( V1.0 ) (5) Bad area: bad size of the hard drive. (6) Client IP: show the IP of network user which is connected to the DVR. The DVR IP could be used by the admin or by 16 regular users at the same time in remote client software.

  • Page 49: Recording Operation

    Network Digital Video Recorder Operation Manual ( V1.0 ) by press key or cl ick disk name with mouse. Recording operation Firstly confirm that recording mode of each channel in schedule setup( time/alarm/motion/alarm+motion ) and time segment setup. Start recording: Press the key in the front panel / remote control of DVR to start recording.
  • Page 50 Network Digital Video Recorder Operation Manual ( V1.0 ) (3) Backup device: You culd select DVD(1.5G) or USB pendrive i n device item. The ma ximum cap acity for DVD disk should not exceed 1.5G. (4) In option of date and start time, input the date and time you ne ed to play, you co uld pr ess ke y t o select the start time.
  • Page 51 Network Digital Video Recorder Operation Manual ( V1.0 ) could select the time segment you need to backup with mouse. And click the "Backup" icon to start backup.The process will last for a few minutes. When backup finished, please remove the device from DVR. (7) Please note that the size of video file should not exceed the maximum capacity of backup device.

  • Page 52: Audio Setup

    Network Digital Video Recorder Operation Manual ( V1.0 ) Audio setup Press the key in remote control or click the icon " " with mouse to enter AUDIO in the front panel or press the audio setup interf ace. Take 16 channel DVR as example: (1) Mute: Select mute, then there is no audio output in live C H 0 1 C H 0 2...

  • Page 53: Spot Output

    Network Digital Video Recorder Operation Manual ( V1.0 ) 4.12 Spot output In live preview mode, press key in remote control or click " " icon with mouse to enter SPOT output SPOT setup menu. Take 16 channel DVR as example. (1) AUTO: After select this item, the system will output sequence image according to default SPOT out put C H 0 1...

  • Page 54: User Login

    Network Digital Video Recorder Operation Manual ( V1.0 ) 4.13 User login Press the LOCK key on remote control or click the icon " " on the top right screen with mouse, the icon will turn to red " ". It means the system is locked. Then you need to press key in the remote control/ LOCK the front panel or click the icon "...

  • Page 55: Power Off

    Network Digital Video Recorder Operation Manual ( V1.0 ) 4.15 Power off Normal power off: Stop all the operations, press " " in the front panel / remote control or click " " icon on bottom left of screen. And select " Enter " to make it power off. When power off, the" Power" LED light will turn green.

  • Page 56: Appendix 1 Technical Parameters

    Network Digital Video Recorder Operation Manual ( V1.0 ) Appendix 1 Technical parameters Items 4CH H.264 DVR 8CH H.264 DVR 16CH H.264 DVR Video input 1.0Vp-p/75 ,BNC 4 1.0Vp-p/75 ,BNC 8 1.0Vp-p/75 ,BNC 16 Video output 1 1.0Vp-p/75 ,BNC 1 2 VGA 1 3 HDMI 1 4 YPbPr 1...
  • Page 57 Network Digital Video Recorder Operation Manual ( V1.0 ) 16D1 non-real time or 16CIF 8D1 or 8CIF real time 4D1 real time compression real time compression, compression, 1D1 or 8CIF Record resolution 4D1 real time playback at 16D1 non-real time or real time playback at the 16CIF real time playback the same time...

  • Page 58: Appendix 2 Trouble Shooting

    Network Digital Video Recorder Operation Manual ( V1.0 ) Appendix 2 Trouble shooting FAQ : 1. Why cannot detect hard drive? Default cause: The HDD power line or data cable is not connected well. Resolution: Please check the power cable and data cable. And format the HDD. 2.
  • Page 59 Network Digital Video Recorder Operation Manual ( V1.0 ) 6. Why there are no video output when connect DVR with camera? Default cause: 1 BNC connector not connect well. 2 The system format is different between DVR and camera. 3 Modified the system date back. NOTE The operation manual is for reference only.
