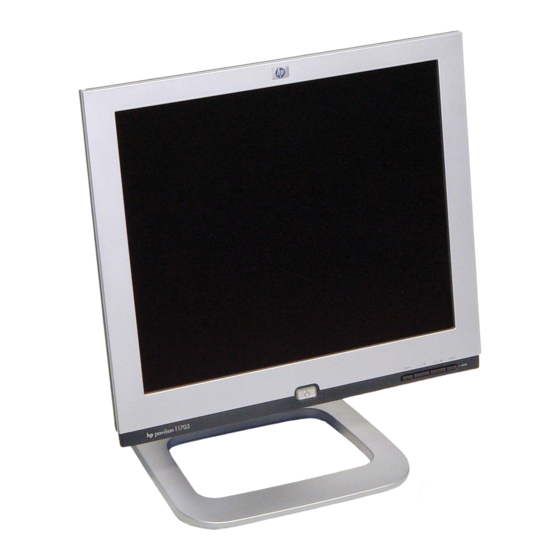

HP F1703 SERVICE MANUAL 17” LCD Monitor F1703 THESE DOCUMENTS ARE FOR REPAIR SERVICE INFORMATION ONLY. EVERY REASONABLE EFFORT HAS BEEN MADE TO ENSURE THE ACCURACY OF THIS MANUAL; WE CANNOT GUARANTEE THE ACCURACY OF THIS INFORMATION AFTER THE DATE OF PUBLICATION AND DISCLAIMS RELIABILITY...
HP F1703 2.LCD Monitor Description The LCD Monitor will contain a main board, a power board, and a key board which house the flat panel control logic, brightness control logic and DDC. The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each voltage.
HP F1703 3. Operation Instructions 3.1 General Instructions Press the power button to turn the monitor on or off. The other control buttons are located at front of the panel. By changing these settings, the picture can be adjusted to your personal performance.
HP F1703 4. Input/Output Specification 4.1 Input Signal Connector Mnemonic Signal Mnemonic Signal Red Video +5 V +5 V (from PC) Green Video Sync Ground None (available for mfg use if Blue Video required) None available for mfg use if...
Page 14
HP F1703 REMARK: 1) MCU initialize. 2) Is the EEprom blank? 3) Program the EEprom by default values. 4) Get the PWM value of brightness from EEprom. 5) Is the power key pressed? 6) Clear all global flags. 7) Are the AUTO and SELECT keys pressed? 8) Enter factory mode.
HP F1703 6.3.2 Inverter / Power Board Block Diagram AC inlet filter Rectifier and filter Transformer Rectifier and filter To main board Start circuit OVP circuit Switching circuit Feedback circuit PWM control IC&MOSFET On/off control Start circuit PWM control IC...
HP F1703 9. Maintainability 9.1Equipments and Tools Requirement 1. Multi-meter. 2. Oscilloscope. 3. Pattern Generator. 4. DDC Tool with an IBM Compatible Computer. 5. Alignment Tool. 6. LCD Color Analyzer. 7. Service Manual. 8. User Manual.
HP F1703 9.2 Trouble Shooting 9.2.1 Main Board Measured CN601,pin3/4 -> 5 V pin6/7 -> 3.3 V , pin9 -> 1.8 V Check inverter/DC-DC power Yes, all DC level exist Power key on/off monitor,LED Led no function Connected the Signal cable function ok? (Blue <->...
Page 31
HP F1703 Check the panel power relative circuit R401,C406,U7,Q401,R404,C404,FB402,in Check U402 Pin 2/4/->0V when power switch on normal operation, when LED=Blue,R401 should=0.8v NG, No voltage Measured the U402 Pin 5-8 =5V? Replace U402 Check U402 relative Circuit,C403,C406...
HP F1703 9.2.2 Inverter Board No Backlight Check CN101 =12V Check adapter Check ON/OFF signal Check Interface board Check U201 Pin9 =12V Change F101 Check U201 Pin1 output tooth wave? Check U201 Short C207,check the U201 Pin7 & Pin10 output square wave? Check Q203,Q205,Q207&Q204,Q206,Q208...
Page 33
HP F1703 No 1.8V, 3.3V, 5V Output Check CN101 =12V Check adapter Check U101 PIN9 =12V F101 Check U101 PIN1 output tooth wave Check U201 Short C207,check the U101 Pin7&Pin10 output square wave? Check Q103,Q105,Q101&Q104,Q106,Q102 Check if had the 5V or 3.3V output? Check the feedback circuit of U101 Pin 3,6,14,11 Check if had the 1.8V output?
HP F1703 9.2.3 Keypad Board OSD is unstable or not working Is Keypad board connecting normally Connect Keypad Board Is Button Switch normally Replace Button Switch Replace Keypad Board Is Keypad board normally Check main board...
C. 6500K color: sRGB color temp. parameter is x = 313±20, y = 329 ±20, Y>200 cd/m 3. Into factory mode of HP F1703 Turn off the power, Sync press the MENU key and AUTO key, Meanwhile turn on the Power, then press the MENU key, then OSD Screen will located at PANEL.
Page 36
HP F1703 B. Adjust sRGB color-temperature 1. Switch the chroma-7120 to sRGB channel. 2. The chroma 7120 will show x = 313 20, y = 329 20, Y >200 cd/m 3. Switch the chroma 7120 l to RGB MODE ( with press “MODE” button to change ) 4.
HP F1703 13. BOM List T783KSHHCZHAA Location Part No. for TPV Description Quantity Unit ADPC12416BH LCD ADAPTER ASS'Y CBPC783KSHHP CONVERSION BOARD IDPC7425C1 INVERTER DC TO DC KEPC780KC2 KEY BOARD FOR T780K*HP KEPC780KS4 KEY BOARD 12G 401 1 CM WASHER 15G5826501...
Page 39
HP F1703 89G 171 35 DC POWER CORD DUSK LAKE 89G 173L15 28 SIGNAL CABLE 89G415A18N IS POWER CABLE 95G8018 30538 WIRE HARNESS M1G 330 4128 SCREW M3X4 M1G 330 6128 SCREW M1G1730 6128 SCREW M3x6 M1G1730 7128 SCREW Q1G 330 8120...
