Summary of Contents for STARLANE Oxydia
-

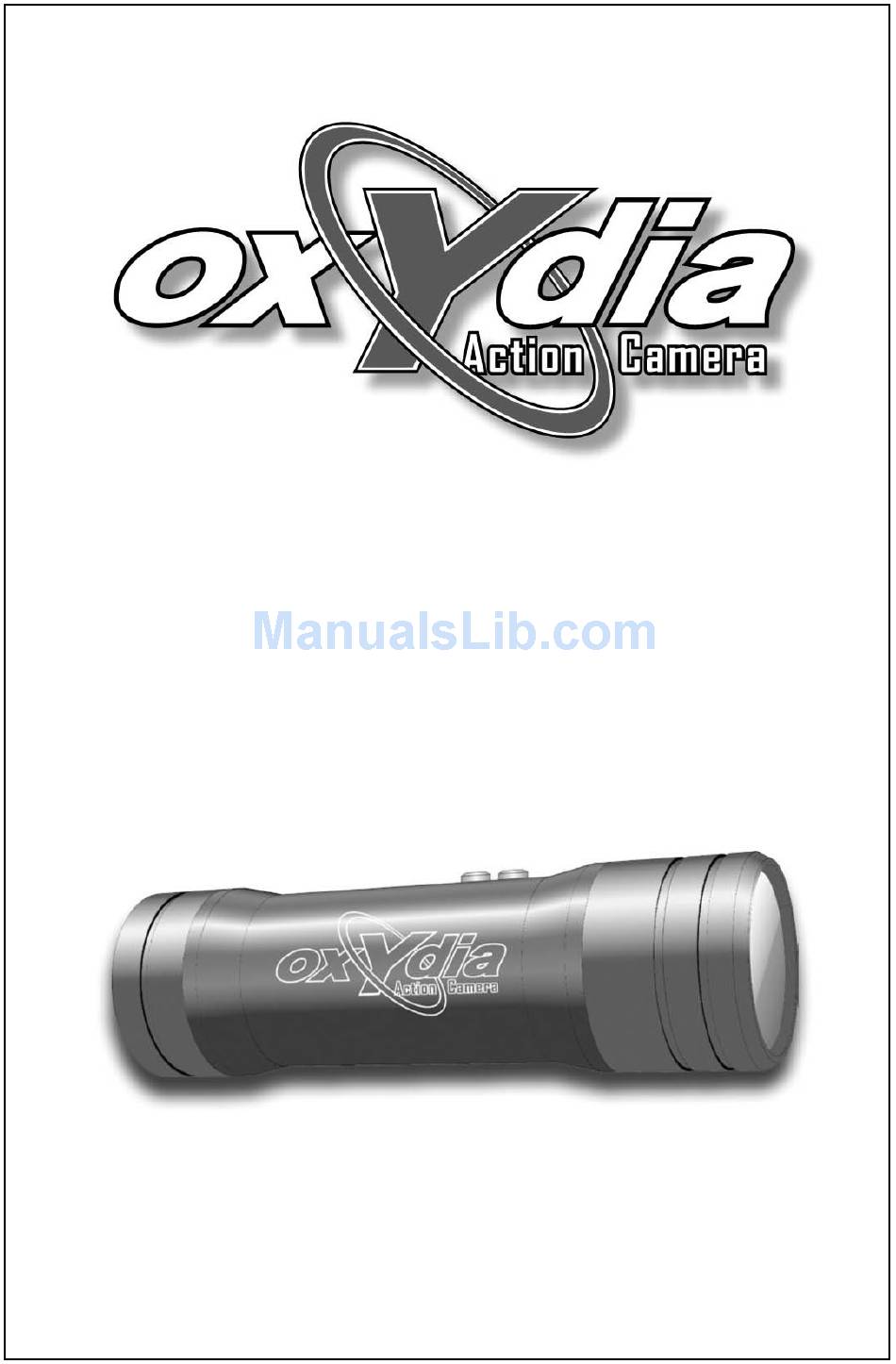

Page 1: User Manual
User Manual Full HD 1080p - 10m Waterproof - 140° Wide Angle Lens - H.264... -
Page 3: Table Of Contents
action camera provides simple operation, allowing you to capture all those memorable moments. Its robust design, encased in a stylish black metal finish, provides a durable, waterproof action camera ideally suited to bikers, skiers, surfers, hunters or any other activity that requires hands free operation. -
Page 4: Precautions
Precautions Do not use the camera in extremely hot, cold, dusty or damp environment. The camera is shock resistant, NOT shock proof. You should avoid dropping it. This camera is waterproof, but do not use it over 10 meters underwater. Also before using underwater, check the O-rings, make sure the front &... -
Page 5: Diagram
Diagram Mic Indicator (E) Button On Off Power Indicator Reset Button (F) Button Record/Stop Resolution Switch Recording Indicator HDMI output Lens USB Connection Card Slot A/V Output/Mic-In Connection Mic Switch Button (D) -
Page 6: Features
Features • 1080p HD digital recording with audio • 720p@60FPS & WVGA@60FPS are selectable • Low illumination, can take good image even in dusk • H.264 compression, records approx 6:30 hours 1080p videos on a 32GB micro SD card • Rechargeable Li-ion Battery - more than 2 hours recording time •... -
Page 7: Quick Guide
Quick Guide Insert Memory card 1. Inserts your micro SD or micro SDHD card (not included in package, a Class 4 micro SD Card will work just fine for this unit but you can use class 4 and above) into the camera with the card’s printed side up. - Page 8 indicator (with E mark) turns on, now the voice recording will be via external microphone, internal one does not work at same time. Attention: If no external MIC is inserted, or MIC is not recognized, MIC switch and indicator will not work. Playback on Computer 1.
- Page 9 Playback on TV (With optional HDMI cable) 1. Unscrew the rear cap, connect the camera and TV with the HDMI cable provided. 2. Turn camera into standby, the video will output real time. 3. Press and hold Button 2 seconds until video file list displays on TV, it is in playback mode now.
-
Page 10: Other Settings
Set Date/Time 1. Create a new “.txt” file, name it as “time.txt” 2. Set the correct date and time into the file according to the following format: 2012/10/01 08:55:00 2012 is the year, 10 is the month, 01 is the day, 08 is the hours, 55 is the minutes, 00 is the seconds. -
Page 11: Trouble Shooting
Trouble shooting Q: It does not work, what shall i do? A: 1. Check if it has power. 2. Check if card is in. 3. Change another card for try or reset the camera. Q: It is not able to charge, what should l do? A: 1. -
Page 12: Specifications
Specifications Image Sensor 1/2.5 inch CMOS View Angle 140 degrees 1920x1080 (1080p)/30fps Recording Resolution 1280x720 (720p)/60fps & Frame Rate 848x480(WVGA)/60fps Video format Compression H.264 12Mb/second while 1080p Video File Size 8Mb/second while 720p 8Mb/second while WVGA Video Recording Section 1 to 60 minutes or 3.6GB max USB Interface USB 2.0 No flash built-in,... -
Page 13: Accessories
Accessories Suction Cup Mount Arm Band Head/Chest Strap Velcro Mount Handlebar Mount Second Handlebar Mount Scope Mount Adhesive Helmet Mount Camera Holder Ring... - Page 14 Band Mount Car Lighter Charger External Microphone Video Output Cable USB 2.0 Cable HDMI Cable 220V Wall Charger Carrying Bag...
- Page 15 Notes...
- Page 16 STARLANE s.r.l. Via Madonna delle Rose, 70 24061 Albano S. Alessandro (BG) - Italia E-mail: For commercial requests: sales@starlane.com For technical support: support@starlane.com For updates of this manual consult www.starlane.com Manual Version: Oxydia_002...
