Summary of Contents for John Lewis JLVS06

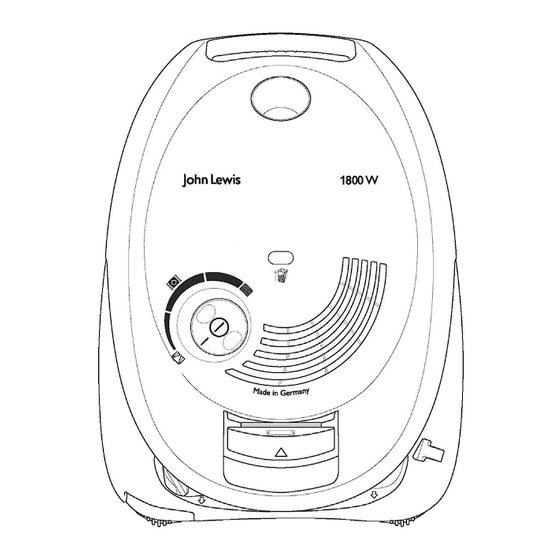

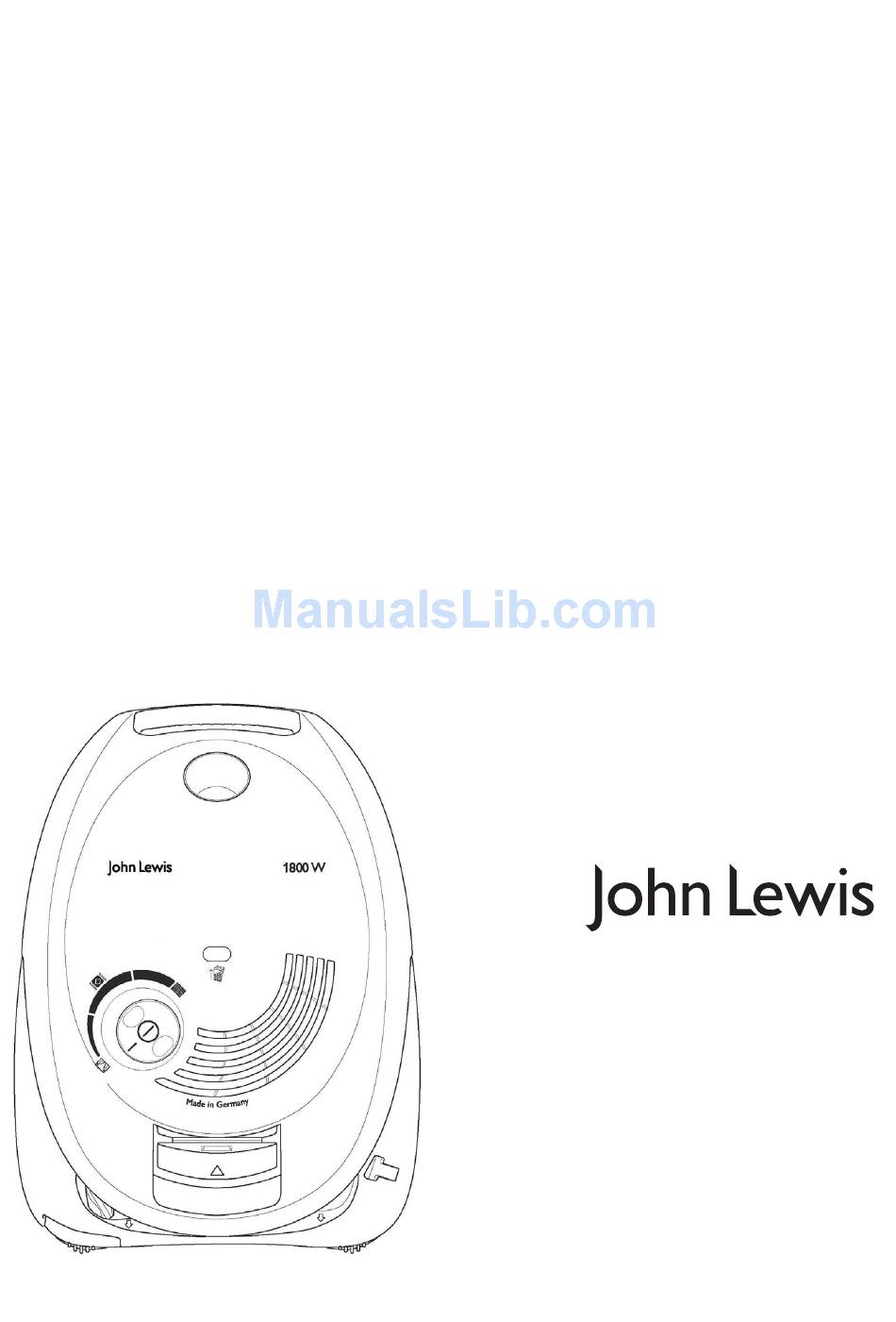

- Page 1 JLVS06 1800 W Vacuum cleaner Instruction manual...
- Page 2 These warnings have been provided in the interest of safety. You MUST read them carefully before use or installation by a qualified person. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance.
-
Page 3: Table Of Contents
Your vacuum cleaner ........ -
Page 4: Intended Use
Unplug the power cord from the mains before carrying out any work on the vacuum cleaner or its accessories. • Do not use the vacuum cleaner if it is damaged. Unplug the power cord from the mains if a fault is detected. •... -
Page 5: Disposal Information
• Switch off the vacuum cleaner when it is not in use. • At the end of its life, the vacuum cleaner should be disposed of in an appropriate manner. Disposal information • Packaging The packaging is designed to protect the vacuum cleaner from being damaged during transportation. -
Page 6: Your Vacuum Cleaner
Your vacuum cleaner 1 Adjustable floor tool 2 Telescopic tube 3 Sliding switch 4 Handle 5 Flexible tube 6 Upholstery nozzle 7 Crevice nozzle 8 Parking aid 9 Power cord 10 Exhaust filter 11 On/off button with electronic suction regulator... -
Page 7: Setting Up
Push the handle onto the flexible tube and until it engages. CLICK! Push the crevice nozzle and upholstery nozzle back into the accessories holder as indicated. Insert the flexible hose connector into the opening on the vacuum cleaner until it engages. - Page 8 Holding the power cord by the plug, pull out the required length and plug the plug into the mains socket. Press the on/off button in the direction of the arrow to switch your vacuum cleaner on/off.
- Page 9 Setting up Adjust the suction by turning the on/off button in the direction of the arrow.
-
Page 10: Vacuuming
Vacuuming Adjusting the floor tool: • For cleaning rugs and carpets • For cleaning hard floors Remove the upholstery nozzle and crevice nozzle from the accessories holder as illustrated. => =>... - Page 11 Vacuuming Vacuuming with accessories Attach the nozzles to the suction pipe or handle as required: Crevice nozzle for vacuuming crevices and corners, etc. Upholstery nozzle for vacuuming upholstered furniture, curtains, etc. After use, push the crevice nozzle and upholstery nozzle back into the accessories holder as indicated.
- Page 12 You can use the parking aid on the side of the vacuum cleaner if you wish to stop vacuuming for a short time. Once you have switched off the vacuum cleaner, slide the catch on the floor tool into the groove on the side of the appliance.
-
Page 13: When The Work Is Done
Tug the power cord briefly and let go. The cable then rewinds automatically. To store or transport the vacuum cleaner, use the parking aid on the underside of the vacuum cleaner. Stand the vacuum cleaner upright. Slide the catch on the floor tool into the groove on the underside of the appliance. -
Page 14: Changing The Dust Bag
Changing the dust bag Replacing the dust bag If the dust bag change indicator is completely yellow when the floor tool is lifted from the floor and the highest suction power is selected, the dust bag must be changed, even though it may not yet be full. - Page 15 Changing the dust bag Slide the new dust bag into the holder to the stop. Caution:The lid can only be closed when a dust bag has been inserted. Cleaning the motor protection filter The motor protection filter should be cleaned at regular intervals by tapping it or washing it out.
- Page 16 • Release the filter holder by moving the locking lever in the direction of the arrow. • Remove the micro-hygiene filter. Insert the new micro- hygiene filter into the vacuum cleaner. • Reinsert the filter holder and clip into place.
-
Page 17: Care
Care • Always switch the vacuum cleaner off and disconnect the power cord from the mains before cleaning the vacuum cleaner. • The vacuum cleaner and plastic accessories can be cleaned with a commercial plasticcleaner. Do not use abrasive, glass or all-purpose cleaners. -
Page 18: Repairs - After Sales Service
Repairs - After Sales Service In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact our extended warranty administrators by telephoning: They will give you details for your local Service Force Centre. Service Force are the appointed national appliance repair agents responsible for warranty repairs to this appliance. -
Page 19: Spare Parts
An authorised service engineer should service this product, and only genuine spare parts should be used. Under no circumstances should you attempt to repair the vacuum cleaner yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. - Page 20 John Lewis Partnership 171 Victoria Street London SW1E 5NN 9000 578 818 A www.johnlewis.com...
Need help?
Do you have a question about the JLVS06 and is the answer not in the manual?
Questions and answers
Where can you buy Replacement filter pack 856 67201
You can obtain the John Lewis JLVS06 replacement filter pack 856 67201 by contacting your local John Lewis branch. Only genuine spare parts should be used, and service should be done by an authorised service engineer.
This answer is automatically generated
how to clean the filter of the stick cleaner
The micro-hygiene filter of the John Lewis JLVS06 vacuum cleaner should be replaced rather than cleaned. To replace it:
1. Open the dust bag compartment lid.
2. Move the locking lever in the direction of the arrow to release the filter holder.
3. Remove the old micro-hygiene filter.
4. Insert a new micro-hygiene filter into the vacuum cleaner.
5. Reinsert the filter holder and clip it into place.
Always switch off and unplug the vacuum cleaner before performing maintenance.
This answer is automatically generated
