Summary of Contents for VIORE LC37VF80

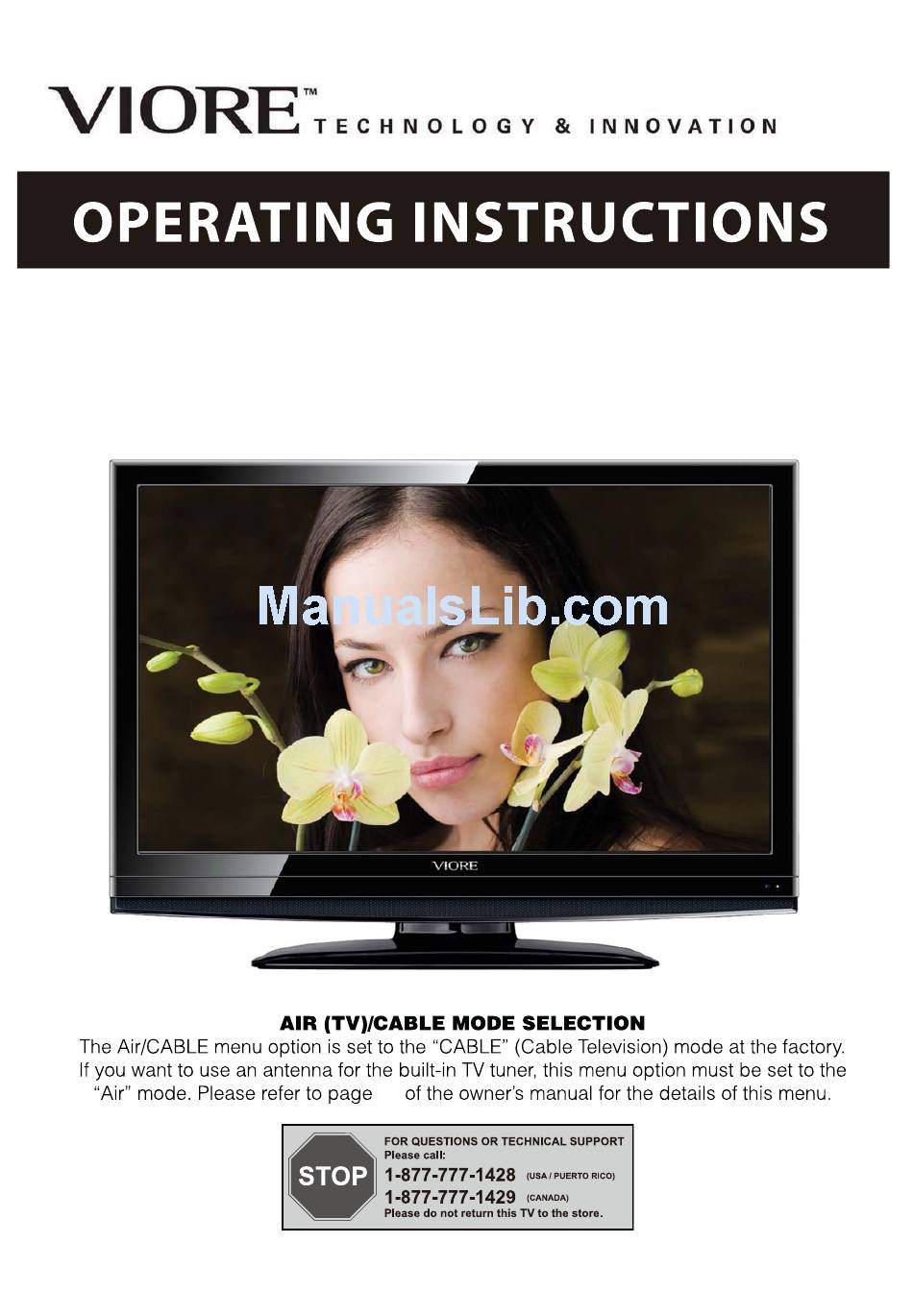

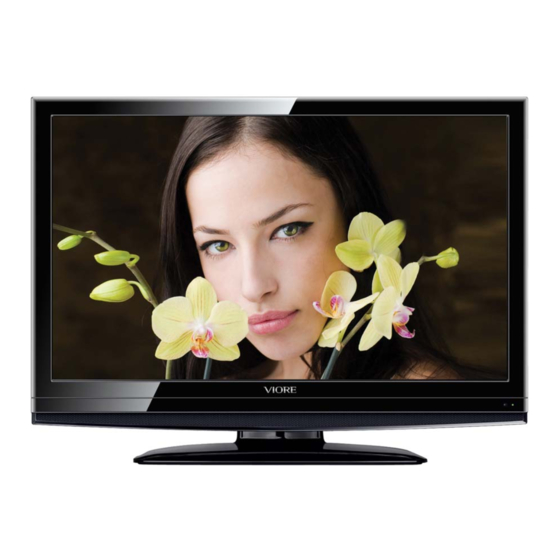

- Page 1 37" 1080p LCD Television LC37VF80 Ver. 110420-1...
-
Page 3: Table Of Contents
1. Front View 2. Rear View 3. Instruction for Wall Mount 4. Remote Control Basic Operation OSD Menu 11-17 1. Picture menu 2. Audio menu 3. Time menu 4. Setup menu 5. Lock menu 6. Channel menu 16-17 Simple Troubleshooting VIORE... -
Page 4: Caution
Caution Caution is intended to alert the user to the presence of un-insulated "dangerous to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety Information Safety Information Electrical safety Physical safety... -
Page 6: Unit And Accessories
Unit and Accessories Quick Start Guide TV set INPUT LC37VF80 Stand Installation Guide Step 1. Place the TV with display side down at the edge of the table or desk (flat surface), and insert the Part B (Stand) to the Part A (Slit provided on the bottom of the TV). -
Page 7: Introduction
Introduction Introduction 1. Front View Main Power Switch Remote Control window Led Indicator Turn on/off the power supply. (Keep clear) 1). (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press POWER to turn on and off. Indicator on(Red) Standby mode Indicator on(Green) -
Page 8: Rear View
Introduction 2. Rear View L IN R IN COAX VIDEO L IN R IN Service HDMI3 HDMI1 AC Power IN Audio out AC POWER IN: Connect to an earth 100-240V~ 50/60Hz outlet with the supplied power cable. 2). Service : For service use only. : Connect it to the HDMI output of video device. -
Page 9: Instruction For Wall Mount
It is strongly recommended to contact a technician for professional assistance for wall mount installation. VIORE is not responsible for any damage to the product or injury to yourself or others resulting from the wall-mounting. -
Page 10: Remote Control
Introduction 4. Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER(red button): Turn the TV on/standby. INPUT INPUT: Press to display the input source menu. - Page 11 Introduction Installing Batteries 1. Open the battery compartment cover on the back of the remote control. 2. Insert two 1.5V AAA size batteries observing the polarity markings inside the battery compartment. Don’t mix different types or used batteries with new ones. 3.
-
Page 12: Basic Operation
Basic Operation Power on/off 1. Connect to the power supply with the power cord and turn on the switch. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. Input Source select Press INPUT button on the TV set or remote control to display input source menu, and use CH+/- button on the TV set or... -
Page 13: Osd Menu
OSD Menu OSD Menu 1. Picture menu Description Picture mode: Select between Standard, Dynamic, Mild, Sports User and Power Saving. You may select the picture mode directly by pressing the PICTURE button on the remote control. Note: when select the "Power Saving", the machine is in energy-saving status. Contrast: Control the difference between the bright and dark regions of the screen picture. -
Page 14: Audio Menu
OSD Menu OSD Menu 2. Audio menu Setup Picture Audio Time Lock Channel Sound Mode Flat Bass Treble Balance Surround SPDIF Type Audio Language English Select Move Exit MENU Description Sound Mode: Select your desired picture mode as follow: Flat, Music, Movie, Sports and User You may select the sound mode directly by pressing the SOUND button on the remote control. -
Page 15: Time Menu
OSD Menu OSD Menu 3. Time menu Description Sleep timer: You may set the automatic shutdown timer choosing from 5 to 240 minutes, or deactivate this function. Time zone: Select between Pacific, Alaska, Hawaii, Eastern, Central and Mountain. Daylight Saving Time(Could only be activated in DTV mode): Select between On and Off. Clock: User can not change time manually during DTV mode, for time is from signal source directly. -
Page 16: Setup Menu
OSD Menu OSD Menu 4. Setup menu Description Menu Language: Select OSD menu language. Transparency: Turn on or off the transparency menu function. Zoom Mode: Select the zoom mode between 16:9, 16:9 zoom, 4:3, 4:3 zoom. Noise reduction: Select the noise reduction mode between Strong, Off, Weak and Middle. PC SETUP: If the video input signal comes from your PC, you may adjust the V-Position, H-Position, Clock, Phase or even perform an Auto adjustment. -
Page 17: Lock Menu
OSD Menu OSD Menu 5. Lock menu You must enter the password to gain access to the Lock menu. The default password is 0000. You may modify the following options: Description Change password: Change the password, you must enter the new password twice to confirm it. Note: Do not forget the password. -
Page 18: Channel Menu
OSD Menu OSD Menu 6. Channel menu Description Air/Cable: Allow you to select antenna between Air and Cable. If you selet “Cable”, the following items(Favorite, Show/Hide, Channel NO, Channel Label and DTV Signal) are unable to use. Auto Scan: Enter the Auto Scan menu to start auto scan. If you select “Cable”... - Page 19 OSD Menu OSD Menu Show/Hide: Allow you to show or hide the channels. button to highlight the desired item, then press OK button to show or hide the highlighted channel. Channel No.: Show and select the channel. Channel Label: Allow you to setup a label for the channel. Press button to select the position of the table, and press button to select the...
-
Page 20: Simple Troubleshooting
If the TV has failed or its performance has seriously deteriorated, check the TV by using the following simple troubleshooting guide. If you can not resolve the problem with this troubleshooting, please call VIORE Technical Support. No power - Check all power connections to the TV. - Page 21 LCD Panel Panel Size 37 inch (diagonal) Brightness 500 cd/m Contrast 4000:1 Resolution 1920 x 1080 Input Connector Video Audio(L/R) PC Audio HDMI YPbPr Audio out Headphone Output Connector COAX Power Source 100-240V~ 50/60Hz Maximum Power Consumption 150W * Product specifications and appearance are subject to change without notice. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
- Page 22 VIORE will repair or if repairs cannot be made, VIORE will replace this Product at no charge with the same, like or similar Product if the Product is defective as specified in this limited warranty during the limited warranty period. VIORE may use new or remanufactured parts or products to repair or replace the Product at its sole discretion.
- Page 24 VIORE, Inc. 7801 Hayvenhurst Avenue, Van Nuys, California 91406 Printed in China...
