Summary of Contents for Edis EA52

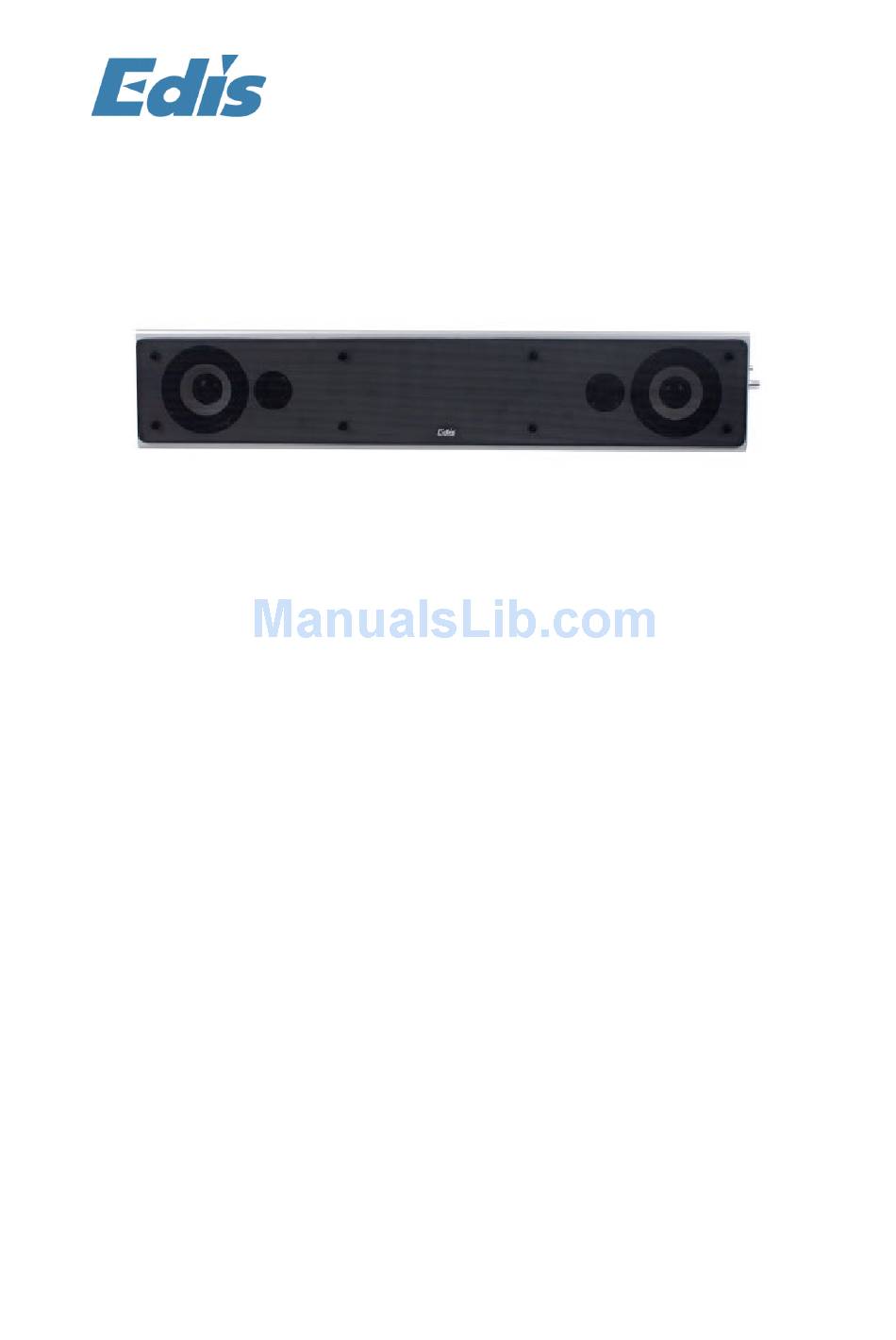

- Page 1 EA52 Sound Bar Manual and installation instructions...
- Page 2 Thank you for buying this product. We are confident it will provide you with a long reliable service, but just in case you experience a problem, it is supplied with a 1-year return to base warranty. This warranty and the product to which it relates applies to the original purchaser only and is not transferable (for the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale).
- Page 3 DESCRIPTION AND FUNCTIONS EA52 Sound Bar for mounting underneath a Flatscreen LCD, LED or TV or an Interactive whiteboard in a classroom, meeting room or home environment. Used with a sub-woofer it is ideal as a high quality Corporate or Home amplifier Key Features •...
- Page 4 Amplifier Control Panel Rear View showing mounting brackets INSTALLATION GUIDE 1. Fix the wall mounting screws into a suitable wall plug in the wall in a position so that the speaker can be hung on this screw using the “keyhole” wall mounts. Hang the speaker unit on these fixings and mark a hole position on the wall for the position of the security bracket at the base of the speaker unit.
- Page 5 OPERATING INSTRUCTIONS Before connecting the power cord turn the Main volume control fully anti-clockwise to it’s off position – you will feel a click. Select the input you would like to listen to using the Input A or Input B on the selector switch on the amplifier panel on the side of the speaker Turn on the volume control, the red amplifier light will come on, and adjust the volume control clockwise to increase the output sound level to your preferred level.
- Page 6 Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic • Equipment Regulations 2005 (RoHS) Waste Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC). • Copyright © 2010 Edis Trading (HK) Limited Protected by European Community Design Rights www.edisav.com...
