PRECISION DIGITAL PDA1200 Instruction Manual

Serial communication converters & adapters
Hide thumbs
Table of Contents

Advertisement

Quick Links

SERIAL COMMUNICATION
CONVERTERS & ADAPTERS
•
RS-232 to RS-422/485 Converter
•
Isolated RS-232 to RS-422/485 Converter
•
USB to RS-232 Converter
•
USB to RS-422/485 Converter
•
Isolated USB to RS-422/485 Converter
•

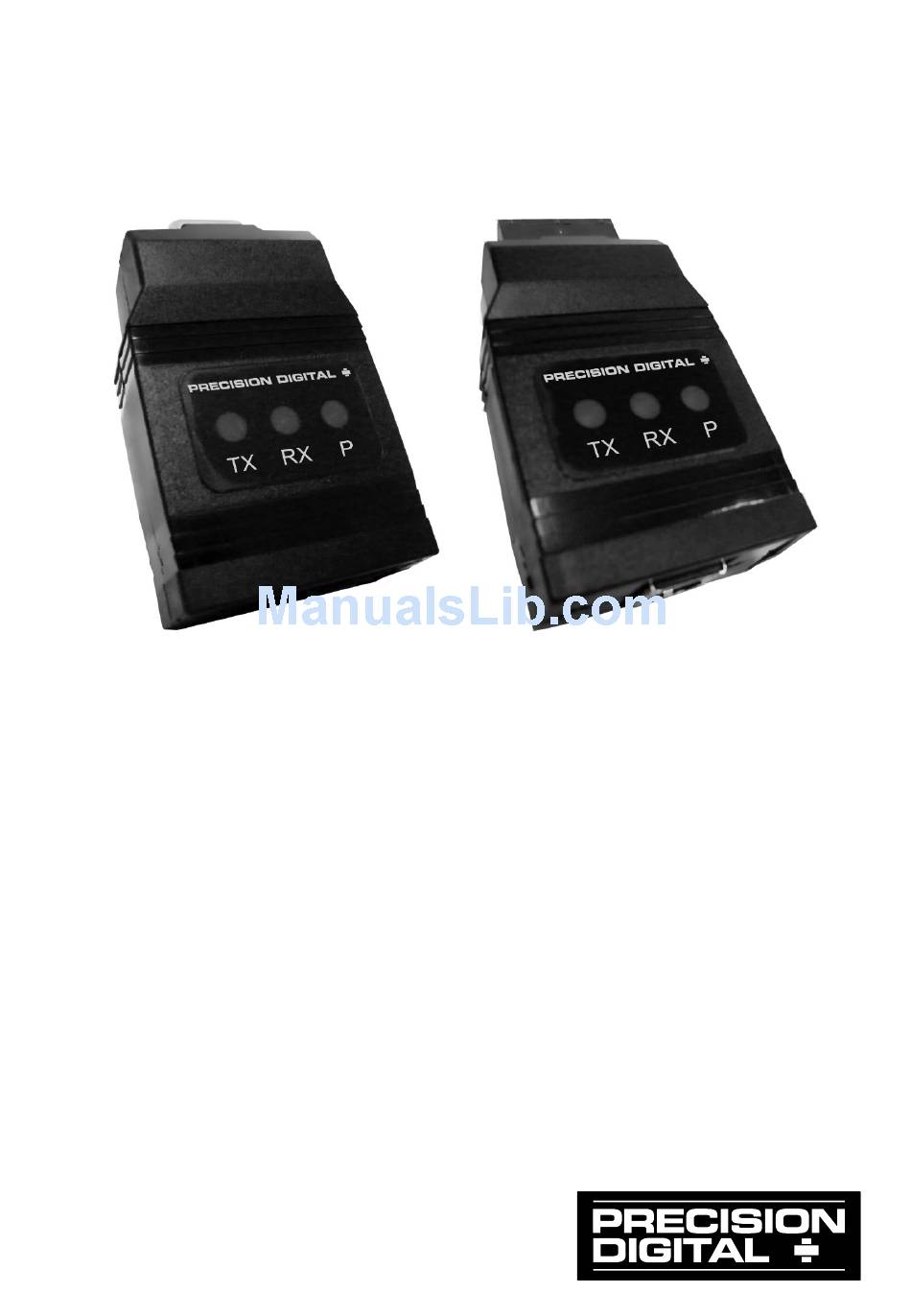

Trident RS-232 & RS-485 Multi-Input Isolated Adapter Board
•
Trident Serial Communication RS-232 Adapter
•
Trident Serial Communication RS-422/485 Adapter
•
P
V
Serial Communication RS-232 Adapter
RO
U
•
P
V
Serial Communication RS-422/485 Adapter
RO
U
PRECISION DIGITAL CORPORATION
89 October Hill Road • Holliston MA 01746 USA
Tel (800) 343-1001 • Fax (508) 655-8990
Instruction Manual
www.predig.com
