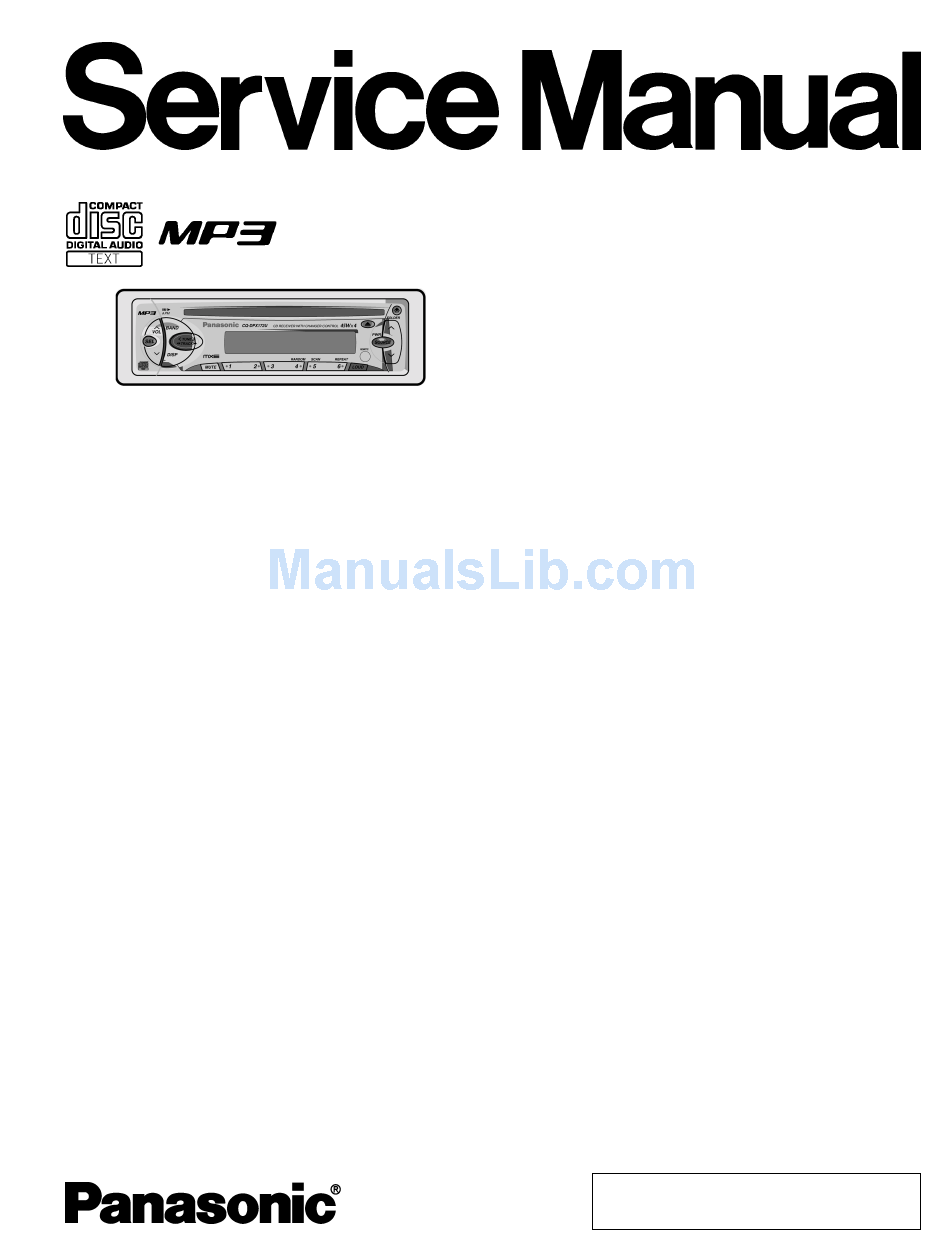

Panasonic CQ-DPX172U Service Manual

Specifications*

General
Power Supply
Tone Adjustment Range
Current Consumption
Maximum Power Output
Suitable Speaker Impedance
Pre-AMP Output Voltage
Output Impedance
FM Stereo Radio
Frequency Range
Usable Sensitivity
AM Radio
Frequency Range
Usable Sensitivity
CD Player
Sampling Frequency
Pick-Up Type
Light Source
AUTOMOTIVE CONSUMER ELECTRONICS
DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground
Bass ; ±12dB at 100Hz
Treble ; ±12dB at 10kHz
Less than 2.2A (CD play mode,
0.5W×4ch)
45W×4ch (at 1kHz, Vol. Max.)
4-8Ω
2V (CD play mode; 1kHz, 0dB)
200Ω
87.9 - 107.9MHz
11.0 dBf (1.25µV, 75Ω)
530 - 1,710kHz
28dB/µV (25µV, S/N 20dB)
32 times over sampling
Astigma 3-beam
Semiconductor Laser
CQ-DPX172U
Removable Front Panel MP3 CD Player
/ Receiver with Changer Control
Wavelength
Frequency Response
Signal to Noise Ratio
Wow and Flutter
Channel Separation
Dimensions**
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
Avobe specifications comply with EIA standards.
© 2002 Matsushita Communication Industrial Co.,
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.
ORDER No. ACED020274C1
780nm
20Hz to 20,000Hz (±1dB)
96dB
Below measurable limits
75dB
7"×1 15/16"×5 7/8"
(178×50×150mm)
3lbs. 5oz (1.5kg)
