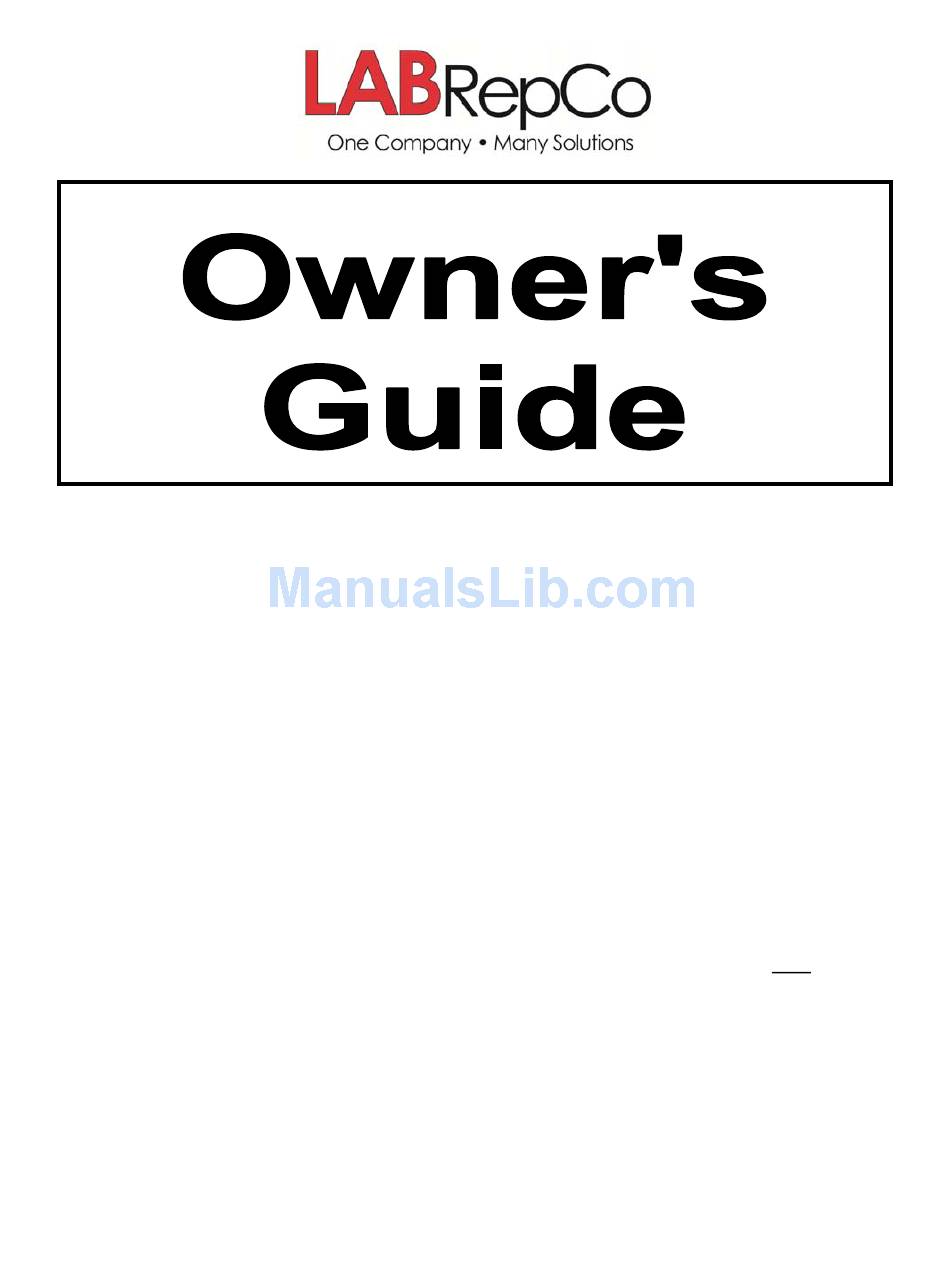

PRIME UNDER COUNTER BI SERIES REFRIGERATORS
This manual describes how to operate and care for your appliance to get the best, most efficient, performance.
Note to Customer:
This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility for its
safe delivery was assumed by the carrier upon acceptance of the shipment. As directed on the side of your
packing carton, claims for loss or damage sustained in transit must be made on the carrier as follows:
A.) Visible Loss, Damage, Shortage External Evidence of Loss or Damage: This type of damage must be noted on
the freight bill and acknowledged by the carrier's agent (driver) at time of delivery. Make sure you get a signed
copy. Send a written request for an inspection to the carrier.
B.) Concealed Damage: This type of damage may not be discovered until the unit is being unpacked. When
concealed damage is discovered, stop unpacking immediately and contact the carrier immediately to report
the claim and request an inspection. This should be done as soon as possible and, in any case, must be done
within 15 days or receiving the merchandise. If at all possible, do not move the item and save all packaging
material for carrier's inspection.
C.) FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN THE CARRIER REFUSING TO HONOR YOUR
COMPANY'S CLAIM. UNDER NO CIRCUMSTANCES SHOULD THE MERCHANDISE BE RETURNED TO THE
MANUFACTURER. NO RETURNS WILL BE ACCEPTED WITHOUT PRIOR AUTHORIZATION.
LABH‐5‐URB, LABH‐5‐URBSS
OWNER'S INSTRUCTIONS
READ THIS BOOK!
Advertisement
Related Manuals for LabRepCo LABH?5?URB
Summary of Contents for LabRepCo LABH?5?URB
- Page 1 PRIME UNDER COUNTER BI SERIES REFRIGERATORS LABH‐5‐URB, LABH‐5‐URBSS OWNER’S INSTRUCTIONS This manual describes how to operate and care for your appliance to get the best, most efficient, performance. READ THIS BOOK! Note to Customer: This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility for its safe delivery was assumed by the carrier upon acceptance of the shipment. As directed on the side of your packing carton, claims for loss or damage sustained in transit must be made on the carrier as follows: ...
-
Page 2: Table Of Contents
Horizon Scientific Warranty: Revision Date 125 Varnfield Drive 03/09/2012 Two-Year Parts and Labor Summerville, SC 29483 5 Years Compressor Parts Phone: 800-648-4041 Fax: 843-821-8051 TABLE OF CONTENTS RECEIVING .................. 3 INSTALLATION .................. 4 TEMPERATURE CONTROL .... ... -
Page 3: Receiving
RECEIVING Your unit was built, packaged, and inspected with extreme care. We shipped it to you using carriers we trust with a proven track record of careful handling, good customer service, and on time delivery. Unfortunately, regardless of all of these efforts sometimes accidents happen and occasionally those accidents result in shipping damage. When the carrier picked up the merchandise from us, they assumed responsibility for its condition en route to you. Thus, any claims for shipping damage must be filed with the carrier. Like anybody else, carriers don’t like to pay out on insurance claims, so their claims procedures and requirements are very restrictive. ... -
Page 4: Installation
INSTALLATION UNCRATING – Move your refrigerator as close to the final location as possible before unpacking. Remove the carton and the styrofoam strips. The location should be as close as possible to the power outlet so no extension cord is needed. This unit requires a minimum of 3 inches on the sides and top. Do not store material on the ... - Page 5 appliance, allow the cabinet to operate a minimum of four hours or until it has started cycling normally before placing product in the cabinet. The motor compressor may start and stop several times when the unit is first started or after defrosting, especially if the weather is very hot. This is only normal functioning of the motor overload protector. The ...
-
Page 6: Refrigerator Operation
Refrigerator Operation After the unit is properly installed and power is applied, it will take some time before the system is cooled down to temperature and cycling normally. You should wait 8 hours on the first startup before beginning to add product to the unit. This ensures that the unit is installed and operating properly before being put into service After this wait time, the unit should be cycling in the design temperature range. The units are calibrated before leaving the factory, so no adjustment should be necessary. Loading the units will again cause temperature to rise as the warmer product is introduced into the compartment. If a large amount of product is to be introduced, it is a good idea to do it in ... - Page 7 TempTech‐2000 Electronic Temperature Control Description and Functions The T‐1000 Electronic Temperature Control is a digital microprocessor based temperature control, indication, and alarm system. It continuously monitors the temperature of the refrigerator/freezer through its sensor assembly. When the temperature warms to the point where it reaches the upper temperature limit, the controller sends a signal to turn on the compressor, ...
- Page 8 Programming Mode Note: The TempTech‐2000 programming mode gives access to several functions that are not intended for user adjustment. The procedures below provide direction to the functions that you can adjust. Please do not attempt to change any of the other functions in the programming area or your unit may be damaged or become unstable. Locking and Unlocking the Control The control keys can be locked out to prevent inadvertent operation. ‐ To lock the control keys, simultaneously press and hold the up arrow and the down arrow. The display will show “POF”. At this point you can only use ...
- Page 9 Adjusting other User Adjustable settings: ‐ To change between Celsius and Fahrenheit scales, press SET and DOWN keys for 3 seconds to enter programming mode. “Hy” will display. Press the UP or DOWN keys several times to cycle through the parameters until “CF” is displayed. Press SET to display the current setting (either C for Celsius or F for Fahrenheit). Use the UP or DOWN key to choose the desired setting. Press SET again to lock it in. Press SET and UP to return to Operating Mode. ‐ To change the Hi or Low Alarm setpoints. , press SET and DOWN keys for 3 seconds to enter programming mode. “Hy” will display. Press the UP or DOWN keys several times to cycle through the parameters until “ALU” for Alarm Upper (High Temperature Alarm) or ALL for Alarm Lower (Low Temperature Alarm) is displayed. Press SET to display the current value. Use the UP and/or DOWN key to choose the desired value. Press SET again to lock it in. Press SET and UP to return to Operating Mode. Remote Alarm Contacts The Remote Alarm Contracts are located on top of the unit directly above the controller. See the picture below for connection information. 9 ...
-
Page 10: Quick Troubleshooting Guide
Quick Troubleshooting Guide Check these items before calling for service PROBLEM: POSSIBLE CAUSE / SOULTIONS: Electrical circuit is not 110‐120V 60Hz. The power cord is not plugged in. No power at electrical outlet. Check to make sure Unit does not run breaker is not tripped or fuse is not blown. Additionally, make sure unit is not plugged into a Ground Fault Circuit Interrupter (GFCI) type of outlet. Check the room temperature. We recommend the refrigerator or freezer should be placed in the air conditioned room between 65°F to 85°F. If the room temp is too warm, the refrigerator or freezer may not be able to maintain the interior temp at proper range. Door is not closed properly. Amount of stored product is overloaded. Unit does not maintain at the Product replacements are pushed against rear wall or proper temperature interrupted the proper refrigerator air circulation. For the proper air circulation, place the products evenly on each shelf. Do not push against the refrigerator’s rear or side walls. Evaporator is blocked by frost or ice. Remove the products, unplug the refrigerator or freezer power, and allow the unit to defrost. If the problem still exists, call for service. Prolong door openings. Control set too cold. Appliance runs too long ... - Page 11 PROBLEM: POSSIBLE CAUSE / SOULTIONS: Door gasket is not sealing properly. Check for debris, cracks, and items passing through door at the gasket. The refrigerator or freezer is facing a doorway or is underneath of air conditioning vent. Relocate the unit or redirect air vent. Moisture collects inside Too many door openings. Minimize time door is open. Hot, humid weather increases condensation. Make sure there is a water trap (U‐shaped loop) in the drain tube near the compressor. This will “trap” a small amount of water in the loop and prevent air from entering the chamber through the tube. Moisture collects on outside Hot, humid weather increases condensation. surface As humidity decreases, moisture will disappear. The display shows “SO” and The temperature sensor is open. Call for service. the compressor does not run The display shows “SC” and The temperature sensor is shorted. Call for service. the compressor does not run The display shows “HH” and The ambient temperature is above 40C/104F. Stop using the compressor does not run immediately. The display shows “LL” and the The ambient temperature is below ‐40C/‐40F. Stop using compressor does not run ...
-
Page 12: Maintenance And Cleaning
Maintenance and Cleaning These units require very little maintenance. They should be cleaned periodically to keep them running efficiently. Use the cleaning agents and suggestions below for best results. If ¼ to ½ inch of frost accumulates around the condenser tubes or if the unit will not maintain proper temperature, it should be defrosted per the procedure on page 14. CLEANING PART CLEANING AGENTS TIPS AND PRECAUTIONS Interior and Door Soap and water Use 2 tablespoons of baking soda in 1 quart of Liners Baking soda and water warm water Be sure to wring excess water out of sponge or cloth before cleaning around controls, light bulb or any electrical parts. Glass Doors (if Soap and water Clean the glass with a mild detergent and water applicable) on a soft cloth or sponge. Rinse with water and wipe dry Door Gaskets Soap and water Wipe gaskets and their seating surfaces with a clean soft cloth Shelves Soap and water Do not wash removable shelves in dishwasher Exterior and Soap and water Do not use commercial household cleaners, Handles Non Abrasive Glass ammonia, or alcohol to clean handles Cleaner Use a soft cloth to clean smooth handles Do not use a dry cloth to clean smooth handles ... - Page 13 Treat your water‐ Though this is not always practical, softening hard water can do much to reduce deposits. There are certain filters that can be installed to remove corrosive elements. If you are not sure of the proper water treatment, call a treatment specialist. Keep your equipment clean‐ Use proper cleaners at recommended strength. Clean frequently to avoid build‐up of hard stubborn stains. Rinse, Rinse, Rinse‐ If chlorinated cleaners are used, you must rinse and wipe dry immediately. The sooner you wipe off standing water, the better. After wiping the unit down, allow it to air dry. The oxygen helps maintain the stainless steels passivity film. Never use hydrochloric acid (muriatic acid) on stainless steel. Regularly restore / passivate stainless steel Job Cleaning Agent Comments Routine Cleaning Soap, ammonia, Apply with cloth or detergent medallion sponge Fingerprints & smears Arcal 20, Lac‐O‐Nu Provides barrier firm Ecoshine Stubborn stains & Cameo, Talc, Zud, First Rub in direction of polish discoloration ...
- Page 14 DEFROSTING It is important to defrost and clean the unit when ¼ to ½ inch of frost has accumulated around the condenser tubes or when the unit will not maintain proper temperature. When defrosting becomes necessary, press the DEF key for 2 seconds. The compressor will stop. Remove the product and leave the door open while defrosting the evaporator. The frost should melt and drain through the drain tube to the drain pan under the unit. Once the unit is defrosted, clean it using the cleaning suggestions in the table above. Wipe away any excess water. After 25 minutes, the unit will automatically return to normal operation. If you wish to end the defrost ...
-
Page 15: Product Warranty Information
PRODUCT WARRANTY INFORMATION HORIZON SCIENTIFIC, INC. PRODUCT WARRANTY Horizon Scientific, Inc. warrants to the original purchaser every new Horizon Scientific, Inc. refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, when such unit is installed, used, and maintained in accordance with provided instructions, for a period of two (2) years. The warranty period starts two weeks from the date of shipment from Horizon Scientific, Inc. This two week period allows ample shipping time so that the warranty will go into effect at approximately the same time your equipment is delivered. Unless subject to prior written agreement with Horizon Scientific, Inc., this warranty does not allow for any warranty start deferment greater than two weeks from date of shipment due to a delayed installation and/or start‐up. By purchasing any product from Horizon Scientific, Inc., you and any entity for which you are purchasing acknowledge and agree to each and every provision contained herein, and all other Notices and Terms provided to Purchaser by Horizon Scientific, Inc., which are hereby incorporated. Under this warranty, Horizon Scientific, Inc., through its authorized service organizations, will repair, or at its option, replace any part found to contain a manufacturing defect in material or workmanship without charge to the owner for parts, service labor or any shipping or cartage costs. Replacement or repaired parts will be warranted for only the unexpired portion of the original warranty. ADDITIONAL THREE YEAR COMPRESSOR WARRANTY In addition to the two (2) year warranty stated above, Horizon Scientific, Inc. warrants its hermetically and semi‐ hermetically sealed compressors to be free from defects in both material and workmanship under normal use and service for a period of three (3) additional years from the end of the initial two (2) year warranty period, but not to exceed five (5) years after shipment from Horizon Scientific, Inc. Compressors determined by Horizon Scientific, Inc. to have been defective within this extended time period will, at Horizon Scientific, Inc.'s option, be either repaired or replaced with a compressor or compressor parts of similar design and capacity. The three (3) year extended compressor warranty applies only to hermetically and semi‐hermetically sealed parts of the compressor and does not apply to any other parts or components, including, but not limited to, cabinet, paint finish, temperature control, refrigerant, metering device, driers, motor starting equipment, fan assembly or any other electrical components. Horizon Scientific, Inc.’s sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than expressly covered by this warranty. NO CONSEQUENTIAL DAMAGES. Horizon Scientific, Inc. is not responsible for economic loss; profit loss; or special, indirect or consequential damages, including without limitation, losses or damages arising from contents spoilage claims whether or not on account of refrigeration failure, electrical failure, power failure, or compressor failure. 15 ... - Page 16 HORIZON SCIENTIFIC, INC.’S MAXIMUM CUMULATIVE LIABILITY RELATIVE TO ALL CLAIMS AND LIABILITIES, INCLUDING OBLIGATIONS UNDER ANY INDEMNITY, WHETHER OR NOT INSURED, SHALL NOT EXCEED THE COST OF THE PRODUCT(S) GIVING RISE TO THE CLAIM OR LIABILITY. WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the original purchaser/user to whom delivered. Any such assignment or transfer shall void the warranties herein made and shall void all warranties, express or implied, including any warranty of merchantability or fitness for a particular purpose. NO IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. There are no other warranties, express, implied, or statutory, except the two (2) year warranty and the additional three (3) year compressor warranty as described above. These warranties are exclusive and in lieu of all other warranties, including implied warranty and merchantability or fitness for a particular purpose. There are no warranties which extend beyond the description on the face hereof, whether based on contract, warranty, tort (including negligence), strict liability, indemnity, or any other legal theory, and whether arising out of warranties, representations, instructions, installations, or non‐conformities from any cause. Purchaser further acknowledges that the purchase price of the Product reflects these warranty terms and remedies. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD OR OTHER EXTERNAL CAUSES. Horizon Scientific, Inc. is not responsible for the repair or replacement of any parts that Horizon Scientific, Inc. determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood or other external causes. It does not apply to defects resulting from failure to properly install, operate or maintain the product in accordance with the printed instructions provided, or damage caused by the storage of any corrosive material that comes in contact with the interior or exterior portions of the cabinet, or the use of spark producing equipment or containers (such as galvanized or carbonized steel containers) that come in contact with any interior portion of the cabinet. OUTSIDE U.S./CANADA. This warranty does not apply to, and Horizon Scientific, Inc. is not responsible for, any warranty claims made on products sold or used outside the United States and Canada. CHOICE OF LAW/VENUE. The laws of the State of South Carolina shall govern the validity, interpretation and enforcement of this warranty, regardless of conflicts of law principles. Purchaser agrees that proper venue for any action to enforce the terms of this warranty shall be the Dorchester County District Courts, South Carolina. Purchaser submits the jurisdiction of such courts over the Purchaser and the subject matter of any such action. Any action for breach of these warranty provisions must be commenced within one (1) year after that cause of action has accrued. WARRANTY CLAIMS. To obtain prompt warranty service, simply contact the manufacturer at 800‐648‐4041. Horizon Scientific, Inc.’s shipping records showing date of shipment shall be conclusive in establishing the warranty period. All claims should include: model number of the refrigerator, the serial number of the cabinet, proof of purchase, date of installation, and all pertinent information supporting the existence of the alleged defect. Any repairs must be authorized by Horizon in order for the warranty to be honored. 16 ...
