D-Linear7
High Definition digital music interface

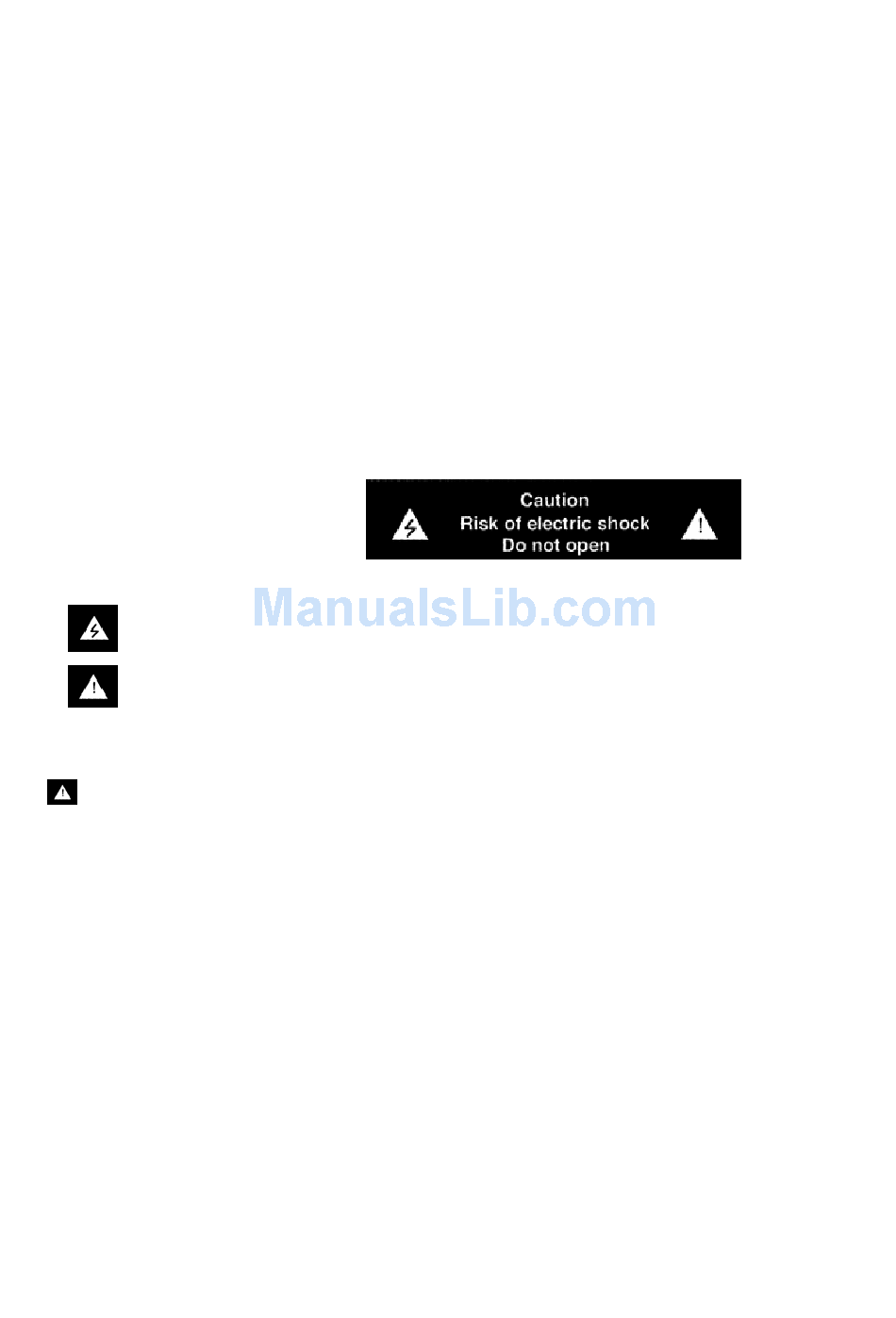

This icon marks a presence of un-insulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This icon marks important operating, maintenance and service information that should be
read to prevent possible personal injury
WARNINGS
Do Not Disassemble
Do not attempt to service the equipment beyond that described in this manual. Touching the
equipment's internal parts could result in severe personal injury. All other servicing or
problems as listed below should be referred to qualified Consonance service technicians:
•
The power supply cord or plug has been damaged
•
Objects have fallen or liquid has been spilled into the equipment
•
The equipment does not appear to function normally or exhibits a marked change in
performance
•
The equipment has been dropped or the enclosure damaged
Do not under any circumstances allow anyone to modify your Consonance equipment without
first checking with Opera Audio, your dealer, or your distributor. Unauthorized modifications
will invalidate your guarantee.
SAFETY INSTRUCTION
To avoid personal injury or damage to equipment, please
ensure that you read this manual in its entirety before
attempting to operate the equipment. Please retain this
manual for future reference.
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT
UNDER ANY CIRCUMSTANCES REMOVE ANY PARTS OF
THE
EQUIPMENT
SERVICEABLE PARTS INSIDE. ALL SERVICING MUST BE
CARRIED OUT BY QUALIFIED SERVICE PERSONNEL.
1
COVER.
THERE
ARE
NO
USER
Advertisement
Summary of Contents for Consonance D-Linear7
- Page 1 • The equipment has been dropped or the enclosure damaged Do not under any circumstances allow anyone to modify your Consonance equipment without first checking with Opera Audio, your dealer, or your distributor. Unauthorized modifications will invalidate your guarantee.
- Page 2 Lighting Consonance hi-fi system can be damaged by lightning. Power amplifiers are particularly at risk and therefore should be turned off when there is risk of lightning strike. For complete protection all mains plugs and any aerial cables should be disconnected when not in use.
-
Page 3: Table Of Contents
Table of Contents SAFETY INSTRUCTION INTRODUCTION UNPACKING & SET-UP GENERAL WARNINGS TROUBLESHOOTING GUIDE OPERATING TIPS REMOTE CONTROL TECHNICAL SPECIFICATION WARRANTY... -
Page 4: Introduction
General Warnings Every piece of Consonance equipment is designed to produce the finest sound quality that can be achieved, by avoiding compromise wherever possible. This can lead to circumstances that may be unfamiliar to the equipment owner. The material that follows contains advice specifically related to Consonance equipment as well as more general warning about the use of domestic audio products. - Page 5 • Sales slip or other proof of purchase if repair is claimed under warranty. • A proforma invoice with value of the goods, stating that the amplifier is returned to china for repair. • An accompanying letter describing faults, symptoms or problems with the amplifier. •...
- Page 6 【Main Menu】 After turning the player on and waiting 1 minute, the icon interface will show up as per the above picture, with five in total. Only three icons can be seen each time, they can me switched (moved) simply by touch or by remote control. For example, you can switch the icons from left to right by touching icon 1 and as a result, this icon will become larger and get centrally located;...
-
Page 7: Remote Control
【Player Interface】 When any stored file or any internet radio station is playing, the following interface will be available. Each indicates the function as follows: 1. Record button: you can record the current playing file and store it in your hardisk by touching this button. - Page 8 The remote control uses two 1.5-volt LR03 AAA batteries. Mute Standby :After powered on, the remote control will go into standby status until powered off. It will take 3 seconds to power off by pressing this key. Record: Press this key to record any radio station high quality audio broadcast, the recorded file is automatically named and saved in the mobile storage device.
- Page 9 Add/Open Favorites: Press this key to save a currently playing file or Internet radio station to your favorites for later playback directly. Ok : Serves as an enter key for system settings, operation or file selections. Vol+/Up: Increases the volume per touch, or hold down to make the volume gain continuously.
- Page 10 By pressing on the remote control for 2 seconds it will take you into standby status. WARNING: During playback of USB mobile HDD files, be sure to touch the icon of the touchscreen interface or key on the remote control to stop and exit to go into standby status, otherwise it is possible to damage the HDD.
- Page 11 Network Settings Help The machine has been enabled by default DHCP in the factory, if you can not connect to the network IP address it can be set manually to connect to the network. WI-FI and LAN connections Plug the WI-FI module into the USB HOST interface, then connect your home computer's network cable directly into the "LAN"...
- Page 12 Quick Play Select your favorite file in the file list or radio station in the internet radio and then click Add to Favorites ,choose their suitable file type and then press “Ok” key to finish. After that, you can play the file or radio station in the Favorites just by selecting it. You can create one play list through the function of Quick Play and you simply just need to select from this list to play next time.
-
Page 13: Technical Specification
The D-linear7 has one RCA standard SPDIF (Digital signal level is 0.5Vpp when terminated in 75 ohm load )and one AES Digital signal level that is 3Vpp when terminated in 110 ohm load )digital audio outputs. -
Page 14: Warranty
Please mail or e-mail the Registration Card to the address as follows: The Opera Audio Co., Ltd. No.2 JiuXianQiaoLu ChaoYang District Beijing, China Tel: 86 10 59789461 Fax: 86 10 59789265 support@opera-consonance.com www.opera-consonance.com Registration Card Name Address City State Email...
