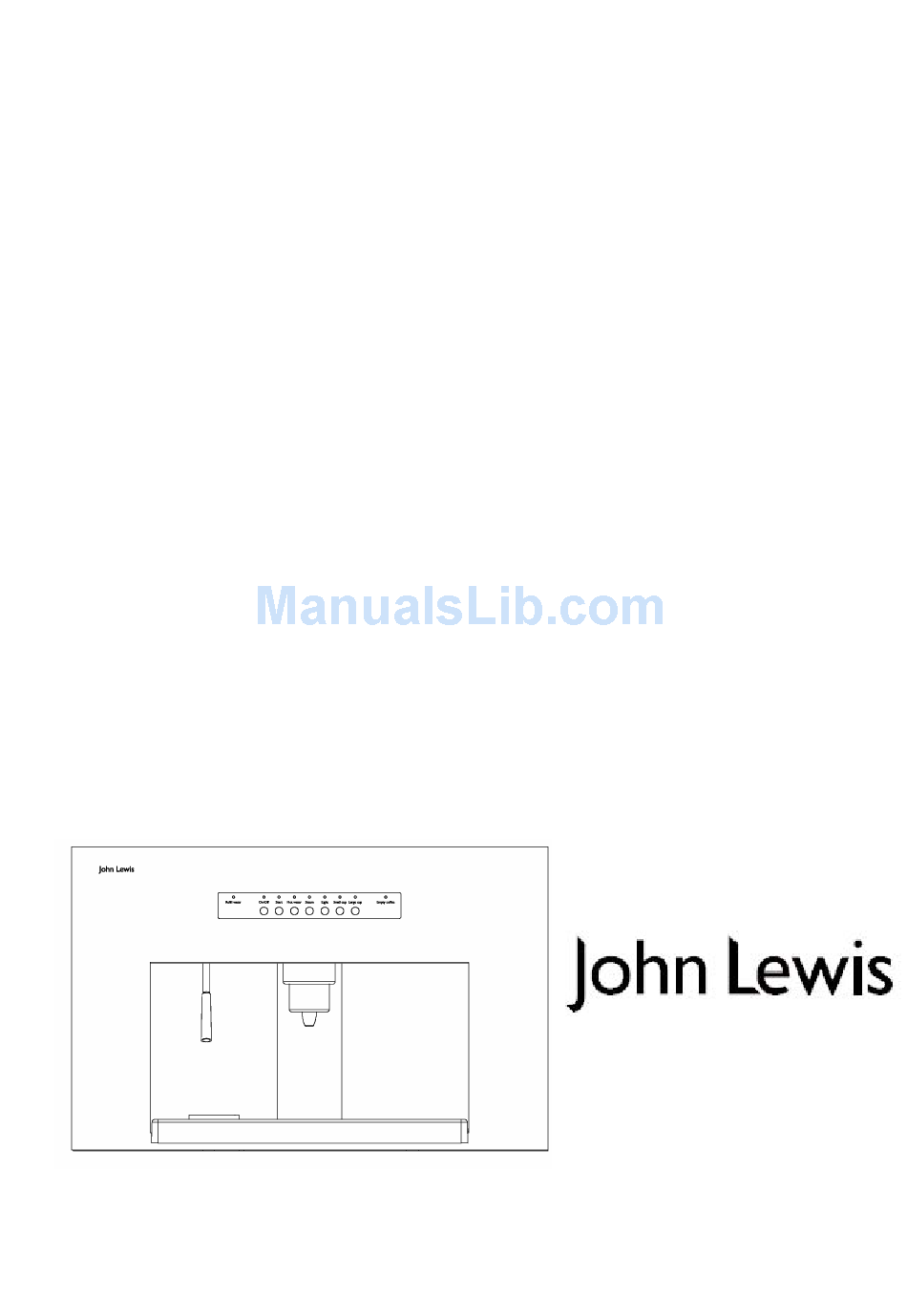

- Page 1 JLBICM 01 Coffee machine Instruction manual...
-
Page 3: Important Safety Information
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance. If you are unsure of the meanings of the these warnings contact the John Lewis branch from which you purchased the appliance. Installation •... - Page 4 During use For installation and servicing Keep this instruction manual together with the machine for any future reference. If the machine is sold or transferred to another person, make sure that this instruction manual is given to the new user, so that he/she can become familiar with the machineÊs functions and with the recommendations given.
-
Page 5: Table Of Contents
Contents For the User Important safety information Description of the coffee machine The control panel • touch controls Instruction for the first use • filling up the water reservoir • hardness of water • filling up the container with coffee beans •... -
Page 6: Description Of The Appliance
Description of the Appliance 1. Water reservoir 2. Brita filter 3. Coffee Outlet 4. Steam/water nozzle 5. Drip tray 6. Coffee beans container 7. Grinding regulation knob 8. Control panel 9. „Used‰ coffee drawer... -
Page 7: Installation
Installation Building-in Installing the machine into kitchen furniture with proper characteristics will ensure a correct operation of the equipment. Complying with the safety rules, ensure a proper protection against any contact with the electric components and with the parts protected only by functional insulation, by housing the machine correctly into the furniture. All components that guarantee protection, even a cover panel (for instance, when the machine is positioned at one of the ends of the modular furniture), should be firmly fixed so that they cannot be removed without tools. - Page 8 • Unscrew the cable clamp available on the machine. • Fix the power cable onto the machine as shown in the figure. • Connect the power cable as shown in the figure. This machine is designed for a single phase voltage of 230V. The power supply requires only outlets of 13A fuse and a double pole isolation switch with at least 3 mm between contacts.
-
Page 9: Installing The Machine
Installing the machine • Lay the U base plate of the machine on the shelf of the cabinet. • Insert the L plates, compensating for any space. The width of the housing unit the coffee machine depends on the thickness of the cabinetÊs sides. six side plates (four being 2 mm thick and two 1 mm thick) are provided to compensate for the different possible measures. - Page 10 • Fix the U base plate inserting 4 self-threading screws into the 4 front holes of the same plate. Then screw the telescopic runners to each side with the remaining 8 self-threading screw. • Insert the machine into the housing by coupling the machine to the runners fixed to the sides of the carcass.
-
Page 11: Technical Specifications
Technical specifications Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. WARNING: THIS APPLIANCE MUSTBE EARTHED. Should the appliance power supply cable need to be replaced, this must be carried out by a Service Force agent. The manufacturer declines any liability should this safety measure not be observed. -
Page 12: The Control Panel
The control panel Water refill indicator ON-OFF/stand-by indicator Start indicator Hot water selector indicator Steam selector indicator Light selector indicator Espresso coffee indicator Regular coffee indicator Used Coffee 'drawer full' indicator 10. ON-OFF/stand-by control 11. Start control 12. Hot water selector control 13. -
Page 13: Instruction For The First Use
Instructions for the first use Filling up the water reservoir • Squeeze together the unlocking levers found under the drip tray • Gently pull the coffee machine forward from the housing by sliding it along the telescopic runners. Hardness of water: •... - Page 14 • Remove the reservoir and fill it with approximately 2.5 litres of water as shown. • replace the water reservoir in its own housing tankig care to fully engage the water valve into the docking station. • Ensure the mains ON/OFF switch(at rear) is ON •...
-
Page 15: Filling Up The Container With Coffee Beans
Filling up the container with coffee beans • Press the unlocking levers located under the drip tray and pull the machine as it is shown in the figure. • pull the coffee machine forward from the housing along the telescopic runners . •... -
Page 16: Initial Start-Up
• Push the machine back into the housing until a „CLICK‰ can be heard. This indicate that the machine has been locked in position. Initial start-up • Put the main switch in position 1 • The led corresponding to the ON-OFF control will blink rapidly for 3 minutes. -
Page 17: Adjusting The Texture Ground Coffee
Adjusting the texture ground coffee CAUTION This machine is calibrated in the factory for an optimum level of ground coffee. Too „coarse‰ ground coffee will result in a weaker coffee. Too „fine‰ ground coffee will result in very strong coffee, delivered by „drops‰ and tasting „bitter‰. The time required for an espresso will range from 20-30 seconds. -
Page 18: Stand-By Mode
• Push the machine back into the housing until a „click‰ can be heard. This indicates that the machine is locked in position. Stand-by mode • Once powered and inserted into the cabinet, the machine is in stand-by mode: this will be signaled by the on/off LED blinking. -
Page 19: Making Coffee
Making coffee • Press the control corresponding to the desired selection. • Press the start control within 10 seconds and the machine will make the coffee selected. • The machine will stop automatically CAUTION: the desired function will be disabled if the start control is not pressed within 10 seconds. It will then be necessary to repeat the procedure. -
Page 20: Hot Water
Hot water • The steam/water pipe can be moved to the back of the cabinet when not in use. Pull forward when required. CAUTION: Do not touch when HOT! • To dispense hot water, place a container under the steam/water nozzle; then press the water control. •... -
Page 21: Steam
Steam - Heating liquids • The steam/water pipe can be moved to the back of the cabinet when not in use. Pull forward when required. CAUTION: Do not touch when HOT! • Press the steam control and the corresponding indicator blinks for 20 seconds. The machine will be ready to make steam when the indicator stops blinking and remains lit. -
Page 22: Programming The Amount Of Coffee
Programming the amount of coffee beans to be grinded • This espresso machine has already been calibrated in factory to dispense the ideal measure of ground coffee for one cup of espresso. • However this quantity of ground coffee can be increased or reduced, then the selected measure is stored. The programmable measure of ground coffee refers to both the espresso selection and to regular coffee selection. - Page 23 • Once you have modified the coffee ground quantity, press the start control for 10 seconds and the machine will automatically save the quantity desired and it will return to stand-by mode. CAUTION: the correct grinding time can change if a different kind of coffee is used. If any unpressed coffee powder is found when emptying the „used‰...
-
Page 24: Programming The Volume Of Coffee
Programming the volume of coffee dispensed in the cup • The volume of coffee dispensed can be adjusted as desired as follows: • Press the espresso control. • Keep the start control pressed until the programme starts (approximately 5 seconds); the start control LED flashes. •... -
Page 25: If You Wish To Reset The Standard
If you wish to reset the standard values Resetting standard values • This coffee machine is calibrated in the factory to make the optimum Italian espresso, the values set for the espresso coffee distribute 30 cc, the values set for the regular coffee is 80 cc. •... -
Page 26: Signal And Alarms
Signal and alarms Water refill indicator • This machine has a sensor which detects when the water reservoir is empty. • the reservoir empty led will illuminate. The machine will not operate until the water reservoir is refilled. Volumetric counter fault •... -
Page 27: Cleaning
Cleaning Outer parts • Clean the stainless steel parts of the machine with a soft cloth without using aggressive detergents. Never use any abrasive sponges nor steel wool to clean the parts of steel. Dry well with a soft cloth. Steam nozzle •... -
Page 28: Drip Tray
Drip tray • Remove the drip tray from the machine as it is shown in the figures above. • Make sure that the drip tray is periodically drained to prevent any liquid from seeping out and dirtying/damaging the underlying furniture. Drip tray and relevant grill can be washed in a dishwasher. To empty the „used‰... -
Page 29: Water Reservoir
• Replace the drawer and close the door. Replace the drip tray. Water reservoir • If the machine is not used for long periods, change the water in the reservoir and drain the boiler by pressing the coffee button several times. •... -
Page 30: Repairs-After Sales Service
Repairs - after sales service If your coffee machine is not performing satisfactorily, consult the fault finding guide within this instruction book (something not working). If a fault occurs which you can not resolve through following the advice and information contained within the instruction manual, the next step is to contact our extended warranty administrators on: 0870 010 7887 They will give you details for your local Service Force Centre. - Page 32 John Lewis Partnership 171 Victoria Street London SW I E 5NN www.johnlewis.com...
