High Pressure Washer Operator Manual

Overview ................................................................................... 2

Precautions ............................................................................ 2-4

Assembly Instructions .............................................................. 4

Operating Instructions .............................................................. 5

Using the Accessories .............................................................. 6

Working with Detergents .......................................................... 7

Shut Down and Clean-Up ........................................................ 8

Taking a Break .......................................................................... 8

Winterizing and Long-Term Storage ........................................ 8

Cleaning Tips ....................................................................... 9-10

Optional Cleaning Accessories .............................................. 10

Troubleshooting .................................................................11-12

Specifications

Max. Pressure

Max. Water volume

Voltage

Amp draw

Please keep the original box, packaging and receipt.

Before operating this unit, please read this manual

thoroughly and retain it for future reference.

1200 PSI

1.6 GPM

120 V

14 AMPS

5.959-837 0501

Table of Contents

Need help?

Do you have a question about the High Pressure Washer and is the answer not in the manual?

Questions and answers

Tom Colvin

February 16, 2025

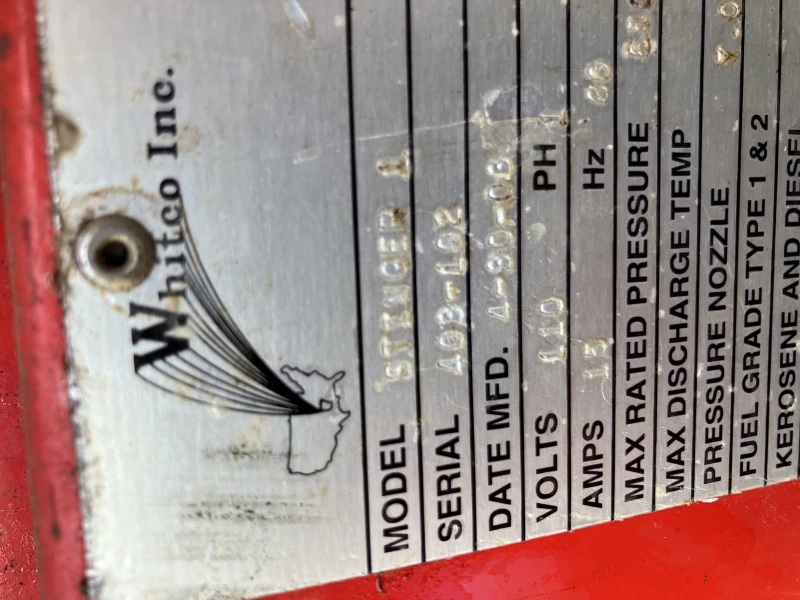

Need help trouble shooting a Whitco Stinger 1 steam cleaner. See attached info tag

1 comments:

Mr. Anderson

February 16, 2025

To troubleshoot a Stinger High Pressure Washer, follow these steps:

1. Garden Hose Connection Leaks
- Tighten loose fittings.
- Insert a new rubber washer if missing or worn.

2. Spray Wand or Extension Leaks
- Ensure the spray wand is properly attached by inserting it into the spray wand extension, pressing against spring tension, and twisting into the locked position.
- Ensure the spray wand extension is properly attached by sliding it into the gun and turning the wand collar clockwise until tight.
- If the o-ring or plastic insert is broken, contact the service center.

3. Noisy Pump
- Check that hoses and fittings are airtight.
- Turn off the machine and purge the pump by squeezing the trigger gun until a steady flow of water emerges.

4. Water Leaks from Pump
- Up to 10 drops per minute is permissible.
- Check that all fittings are tight.
- If water seals are damaged or worn, contact the service center.

5. Oil Drips
- If oil seals are damaged or worn, contact the service center.

For additional issues not listed, contact the service center for assistance.

This answer is automatically generated

Summary of Contents for Stinger High Pressure Washer

Page 1: Table Of Contents
High Pressure Washer Operator Manual Overview ................... 2 Precautions ................2-4 Assembly Instructions .............. 4 Operating Instructions .............. 5 Using the Accessories .............. 6 Working with Detergents ............7 Shut Down and Clean-Up ............8 Taking a Break ................8 Winterizing and Long-Term Storage ........
Page 2: Overview
OVERVIEW High Pressure Washer Machine includes 1. On/Off switch 6. Rotary nozzle 2. Connector for detergent suction tube 7. High/Low pressure nozzle 3. High pressure outlet 8. Trigger gun safety lock 4. Water inlet 9. Trigger gun with high pressure hose 5.
Page 3: Precautions
IMPORTANT PRECAUTIONS – Read First! Extension Cords Safety Warnings Use a sufficient gauge: Up to 25 ft = 12/2 When using this product basic precautions AWG: 25 to 50 ft =10/2 AWG. should always be followed: Use only extension cords that are intended •...
Page 4: Assembly Instructions
IMPORTANT PRECAUTIONS – continued (Outside Diameter) ASSEMBLY INSTRUCTIONS...
Page 5: Operating Instructions
OPERATING INSTRUCTIONS Step 1 Connect garden hose to the cold water source and turn water on completely. Step 2 Plug the power cord into the power outlet. Unlock the lock of the trigger gun (A). Trigger the gun (B) to eliminate trapped air, wait for a steady flow of water to emerge from the spray nozzle.
Page 6: Using The Accessories
USING THE ACCESSORIES High/low pressure nozzle Rotary nozzle This nozzle features a 0º pencil jet which This nozzle features two positions. The high rotates 360º for maximum dirt cutting action, setting provides a steady powerful 25° high effectively increasing cleaning performance pressure spray pattern, for general up to 40%.
Page 7: Working With Detergents
WORKING WITH DETERGENTS Stinger Pressure washers operate at two pressures. The high pressure is used for cleaning, you cannot apply detergents when working at high pressure. To apply detergents you must be operating at low pressure. Step 1 Install the High/Low pressure nozzle.
Page 8: Shut Down And Clean-Up
SHUTTING DOWN & CLEAN-UP Step 1 Step 2 Step 3 Step 4 Remove detergent suction Turn the switch to Turn off the water Press trigger to tube from jug and insert off (O) position and source. release water into 1gallon (5 L) of fresh unplug cord from pressure.
Page 9: Cleaning Tips
CLEANING TIPS Recommendations Cement Patios, Brick and Stone • Before cleaning any surface an inconspicuous area should be cleaned to (with or without detergent) test spray pattern and distance for Pre-rinse cleaning surface with fresh water. If maximum cleaning results. using Pressure Wash, place detergent suction •...
Page 10: Optional Cleaning Accessories
• Pipe Drain Cleaner • 25’ Extension Hose STINGER 1 YEAR WARRANTY CIP S.p.A. warrants to the original owner that this product shall be free from defects in material and workmanship for one year from the date of its original purchase.If such a defect appears during the warranty period, upon presentation of proof of purchase, CIP S.p.A.
Page 11: Troubleshooting
TROUBLESHOOTING Disconnect the machine from the power source before making any repair. Symptom Cause Solution Motor will not start On/Off switch is in the “OFF” (O) Turn switch to the “ON” (I) position position. Power cord is not plugged in. Plug in power cord.
Page 12 TROUBLESHOOTING – continued Symptom Cause Solution No detergent. Detergent suction tube not properly Check connection. connected to the machine. Detergent is too thick. Dilute detergent. Filter on detergent suction tube is Run warm water through filter to clogged. remove debris. Damaged or clogged detergent Remove obstruction or replace suction tube.
