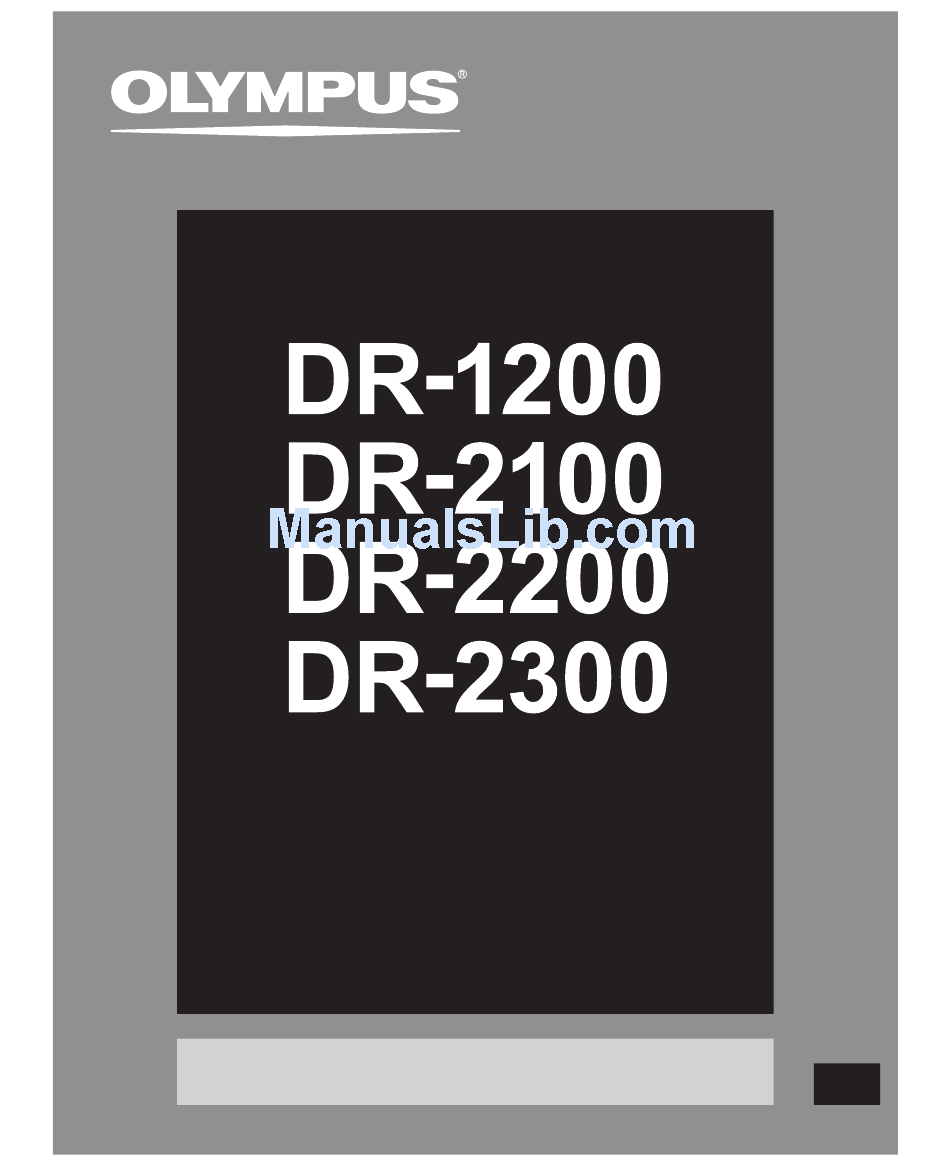

DIRECTREC
INSTRUCTIONS
Thank you for purchasing an
Olympus DIRECTREC.
Please read these instructions for information
about using the product correctly and safely.
Keep the instructions handy for future reference.
To ensure successful recordings, we recommend that you test the
EN
record function and volume before use.
Advertisement
Table of Contents
Related Manuals for Olympus DR-1200
Summary of Contents for Olympus DR-1200
- Page 1 DIRECTREC INSTRUCTIONS Thank you for purchasing an Olympus DIRECTREC. Please read these instructions for information about using the product correctly and safely. Keep the instructions handy for future reference. To ensure successful recordings, we recommend that you test the record function and volume before use.
-
Page 2: Safety Precautions
• Any liability for passive damages or damage of any kind occurred due to data loss incurred by a defect of the product, repair performed by the third party other than Olympus or an Olympus authorized service station, or any other reason is excluded. -
Page 3: Main Features
Safety precautions • Do not cover the Directrec with sand or mud, since the unit could receive an irreparable damage. • Do not subject the Directrec to severe shocks or vibrations. • Leaving magnetic cards near the Directrec’s speaker may lead to unusual behaviors of the data stored in the card. Main features This product is equipped with the following features. s New design and location of buttons enable single-handed control without ever having to visually check the placement of buttons. Directrec fits easily into your hand providing effortless control coupled with superb dictation experience. -
Page 4: Operating Environment
Operating environment Make sure that your computer meets the minimum requirements listed below. Please check with your system administrator or your Olympus Professional Dealer. Windows Operating System: Microsoft® Windows® XP Service Pack 3 (32bit/64bit) Microsoft® Windows Vista® Ultimate/Enterprise/Business Service Pack 1 (32bit/64bit) Microsoft® Windows® 7 Ultimate Professional (32bit/64bit) CPU/RAM: At least meeting the minimum requirements for the operating system in use... -
Page 5: Identification Of Parts

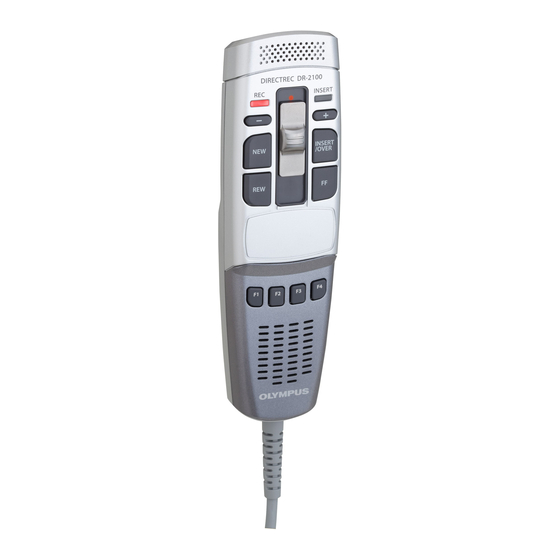

Identification of parts DR-2200 & DR-1200 DR-2100 DR-2300 1 Built-in microphone @ Insert / Overwrite button 2 Recording three color LED (red, #FF (Fast Forward) button green and blue) $ Trackball 3 Volume down button % RIGHT button 4 NEW button ^ F4 (Function 4) button 5 REW (Rewind) button & F3 (Function 3) button 6 LEFT button * Built-in speaker 7 F1 (Function 1) button ( USB cable 8 F2 (Function 2) button ) BACK button 9 Slide REC (Record)/STOP/PLAY/ - REC button REV (Review) switch = PLAY/PAUSE button 0 Insert Recording LED (green) q Barcode slot ! Volume up button... -
Page 6: Connecting To Your Pc
Connecting to your PC The Directrec can be used as a USB speaker or microphone when connected to a PC. If you use the Directrec as a USB speaker, you can output voice through the Directrec instead of using the PC speaker. When used as a microphone, you can record voice on your PC using your favorite application. Connecting to your PC using the USB Disconnecting from your PC cable 1 Disconnect the Directrec USB cable from your PC USB port or USB hub. Windows • Go to the Windows [start] menu, →[Control Panel]→[Sounds and Multimedia] and then select [Audio]. Audio]. ]. Open the [Audio] window and select window and select and select... -
Page 7: Specifications
PCM 16bit 44.1kHz mono 155 mm × 44.5 mm × 32.5 mm (without protrusions) 4 Input level: 4 Weight: — 70 dBv XX g (DR-1200), XX g (DR-2100), XX g (DR- 4 Microphone frequency response: 2200), XX g (DR-2300) xxxxxxxxxxxxxxxxxxxxxxx 4 Cable length: 4 Speaker acoustic frequency 2.5m...
