Summary of Contents for Transonic TC-2212LCD/DVD

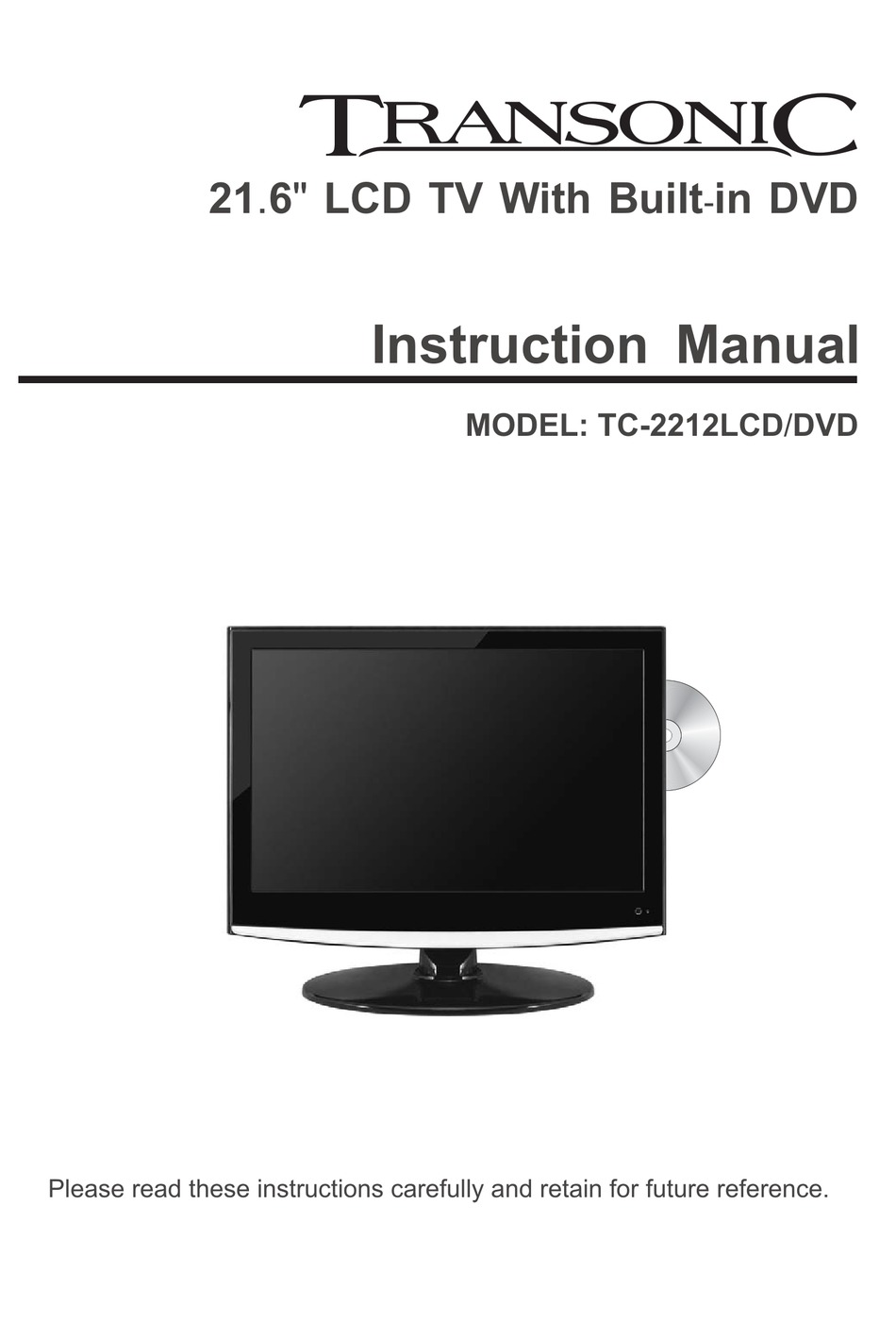

- Page 1 21 6 LCD TV With Built in DVD . " Instruction Manual MODEL: TC-2212LCD DVD Please read these instructions carefully and retain for future reference.
-
Page 2: Introduction
Help line INTRODUCTION Help line For assistance during normal working hours (9am-5pm,Mon-Fri, New Zealand local time) call Oriental Pacific International Ltd NZ call:0800 89 85 80 Email:service@orientalpacific.com IMPORTANT SAFEGUARDS The graphic symbol is used in this manual or on the back cover of the set mean the following: Read this manual in full before use. - Page 3 IMPORTANT SAFEGUARDS CAUTION! This is a class 1 laser product. However this player uses a visible laser beam which could cause hazardous radiation exposure if directed. Be sure to operate the equipment as directed. Do not place eyes close to any openings when connected to the mains supply. WARNING! Do not remove any cover.
- Page 4 Warning Warning CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated”dangerous voltage”within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
-
Page 5: Safety Instructions
Safety instructions Safety instructions WARNING : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. -
Page 6: Safety Instructions
Safety instructions Safety instructions continued 12. Use only cart, stand, tripod, bracket, or table specified 14. Refer all servicing to qualified service personnel. by the manufacturer or sold with the apparatus. Servicing is required when the apparatus has been damaged in any way. 13. -
Page 7: Table Of Contents
Contents Help line & Important safeguards Warning INTRODUCTION Safety instructions Contents PACKING LIST FRONT AND BACK CONNECTIONS OF LCD TV Power Cord Connection Antennas Connection AV Connection BASIC YPbPr Connection INSTALL TION S-Video Connection VGA Connection HDMI Connection Remote control instructions in TV mode Remote control instructions in TELETEXT mode REMOTE CONTROL Remote control instructions in DVD mode... - Page 8 Contents Basic operation MP3/JPEG Playback Function Settings DVD Function General setup System Setup Language Setup Audio Setup Digital Setup TROUBLESHOOTING AND ADVICE SPECIFICATIONS GUARANTEE CARD...
-
Page 9: Packing List
PACKING LIST 2. PACKING LIST POWER MUTE SOURCE PMODE SMODE AUDIO SLEEP I/II PROGRAM -/-- TV MENU EXIT TEXT DISPLAY GOTO ENTER DVD SETUP ANGLE REPEAT SUBTITLE HOLD SIZE REVEAL ZOOM D.DIS INDEX CANCEL SUBPAGE D.MENU ENTER LCD TV SET Remote Control 1.5V Power Cord... -
Page 10: Front And Back
FRONT BACK CONNECTIONS OF LCD FRONT BACK CONNECTIONS OF LCD Front View 6 7 1 “ ” 1. Press POWER button to turn standby mode on or off. “ ” “ ” SOURCE MENU POWER 2. Press P+ or P- to scan through channels. “... -
Page 11: Connections
BASIC INSTALL TION 4. BASIC INSTALL TION Power Cord Connection - Connect the power cord correctly as shown. - Press the POWER switch of your LCD V to switch the unit on . The power indicator on the front panel lights up in Green. - Page 12 BASIC INSTALL TION AV Connection Connect the VIDEO and AUDIO output jack of the DVD or VCR to the AV IN jacks on the set using the RCA cable (Yellow [video], White [left & Right audio]). Select the AV input source using the SOURCE button on the remote control.
-
Page 13: S-Video Connection
BASIC INSTALL TION S-Video Connection Connect the S-VIDEO output of the DVD or VCR to the S-VIDEO input on the set. The picture quality is improved compared to connecting a regular VCR to the video input. Connect the Audio output of the DVD or VCR to the Audio input jacks on the set using the RCA cable. Select S-VIDEO input source, using the SOURCE button on the remote control. -
Page 14: Hdmi Connection
BASIC INSTALL TION HDMI Connection HDMI connection allows the user to transfer all audio/video/control signals through one cable only. These signals are transferred in digital. HDMI cable is not supplied. -
Page 15: Remote Control
REMOTE CONTROL 5. REMOTE CONTROL Remote control instructions in TV mode POWER Turn the LCD TV ON or OFF. POWER MUTE SOURCE MUTE Press to mute the sound. Press again or press V+ to PMODE SMODE AUDIO SLEEP un-mute the TV. I/II SOURCE Press to cycle through the input source in following:... -
Page 16: Remote Control Instructions In Teletext Mode
REMOTE CONTROL Remote control instructions in TELETEXT mode POWER MUTE SOURCE PMODE SMODE AUDIO SLEEP I/II NUMBER BUTTONS Press 0-9 to select a teletext page. PROGRAM -/-- TV MENU EXIT TEXT DISPLAY TEXT Press to switch between TV and Teletext mode. GOTO ENTER P+/P-... -
Page 17: Remote Control Remote Control Instructions In Dvd Mode
REMOTE CONTROL Remote control instructions in DVD mode AUDIO(I/II) AUDIO selection buttons in DVD mode. NUMBER BUTTONS POWER MUTE SOURCE Numerical buttons for various data. PROGRAM PMODE SMODE AUDIO SLEEP Program a disc playing in a desired sequence. I/II GOTO It is possible to get access to any chapter directly using the ‘GOTO’... -
Page 18: Remote Control Setup
REMOTE CONTROL Remote control setup Battery Installation 1. Open the cover. 2. Your remote requires 2X AAA Batteries. When inserting the batteries, make sure correct polarity marks"+"and "-" on the batteries match the diagram as shown within the battery compartment. 3 Replace the battery cover To prevent battery leakage which may result in bodily injury or damage to the remote: 1. -
Page 19: Configuration Of The Lcd
CONFIGURATION OF THE LCD CONFIGURATION OF THE LCD Enter sound menu 1. Press TV MENU on the remote to open the main menu 2. Press ◄ / ► to select: 3. Press ▼ enter the setting sound menu, the outline border turns red. 4. - Page 20 CONFIGURATION OF THE LCD Options: 1. Brightness Brightness Press ◄ to darken the picture. Contrast Press ► to brighten the picture. Colour 2. Contrast Sharpness Press ◄ to decrease contrast Tint Press ► to increase contrast Noise Reduction 3. Colour Press ◄...
-
Page 21: Enter Overview Menu
CONFIGURATION OF THE LCD Enter Overview menu 1. Press TV MENU on the remote to open the main menu. 2. Press ◄ ► to select: 3. Press ▼ to enter the overview menu, the outline border turns yellow. 4. Then press ▲/ ▼ to select options in the overview menu. 5. - Page 22 CONFIGURATION OF THE LCD 4. Timers Press ► to enter the Timers submenu. Then press ▲/ ▼ to select function. Sleep timer Reminder timer Off timer Switch timer Switch program -Sleep timer Each time you press ◄/►, the period of time changes as follows: 15 …...
-
Page 23: Enter Channel Setting Menu
CONFIGURATION OF THE LCD Enter channel Setting menu Notice: This menu is only available in TV mode. Use SOURCE button to select TV mode. 1. Press TV MENU key to open the main menu. 2. Press ◄ ► to select: 3. -
Page 24: Teletext Operation
CONFIGURATION OF THE LCD TELETEXT OPERATION Display Teletext: 1. Select a TV channel with Teletext signal. 2. Press the TEXT button to enter Teletext mode. 3. Press the TEXT button again or CANCEL button to return or exit to normal TV mode. Page selection: 1. -
Page 25: Basic Operation
DVD Operation 7. DVD Operation Basic operation 1. Turn ON and OFF the function - Turn on the LCD TV and then press SOURCE button to select mode. 2. Playback - Insert DVD discs, if PBC is “ON” status, press button will enter the disc menu. -
Page 26: Function Settings
DVD Operation Function Settings DVD Function General setup TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING DEFAULT EXIT SETUP - Press the DVD SETUP button to activate the player OSD menu; - Press ◄ / ► buttons to move and highlight between different sub-menus. Press ▲ / ▼ ENTER button to enter the highlighted sub-menu. -
Page 27: Screen Saver
DVD Operation SCREEN SAVER If the screen saver option is on, when your DVD player is in Stop, Open, or No Disc state, or there is a frame frozen for more than 60sec, the screen saver will be displayed. This feature can protect the screen from damage. ON: Choose this setting to activate the screen saver. - Page 28 DVD Operation TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING DEFAULT EXIT SETUP RATING You can select the rating setting according to your preference. Rating restriction is divided into eight different category from KID SAFE to ADULT. NOTE Only editable when password is unlocked 1 KID SAFE TV SYSTEM SCREEN SAVER...
-
Page 29: Audio Language
DVD Operation Language Setup Press DVD SETUP button to enter the menu. OSD LANGUAGE ENGLISH - OSD Language AUDIO LANG GERMAN Use navigation buttons to select the OSD LANGUAGE setup icon, press ENTER button to confirm. There are 6 languages SUBTITLE LANG SPAN for your selection, press ▲... -
Page 30: Audio Setup
DVD Operation MENU LANGUAGE OSD LANGUAGE AUDIO LANG - Use navigation buttons to select the MENU LANG setup icon, SUBTITLE LANG ENGLISH press ENTER button to confirm. There are 7 languages for you selection.Press ▲ & ▼ buttons to toggle between different MENU LANG GERMAN l a n g u a g e s . -
Page 31: Digital Setup
DVD Operation Digital Setup DYNAMIC RANGE FULL DYNAMIC RANGE DUAL MONO - Switch the compress mode to “Audio output” to adjust the compress ratio for different effects. When selected FULL, the peak signal value is smallest. When selected OFF, the peak signal value is largest. -
Page 32: Troubleshooting
TROUBLESHOOTING AND ADVICE 8. TROUBLESHOOTING AND ADVICE Should your unit develop a problem, please refer to the below troubleshooting table before requesting assistance. Troubleshooting Control No signal Please check that all cables are correctly plugged in. Adjust the contrast, the color and the brightness No color shades Maybe result from a lighting signal from car, motor, neon light and Stain show on the... -
Page 33: Specifications
SPECIFICATIONS 9. Product Specification 21 6" screen WXGA ( 1366x768 ) Resolution FEATURE Wide Viewing Angle (170°H / 160°V ) Specification Items Screen Size 21 6 . ” TFT -LCD Panel Aspect Ratio 16 9 1366X768 Resolution 0 1165X0 3495 Pixel Pitch Display colors 16 7M... -
Page 34: Guarantee Card
Guarantee Card Warranty Card This product is guaranteed against faulty materials and workmanship for a period of one year from the date of purchase with proof of purchase. The obligation to the purchaser under this warranty is limited to servicing the unit and replacing defective parts or refund when the product is returned freight prepaid to the retailer with proof of purchase.
