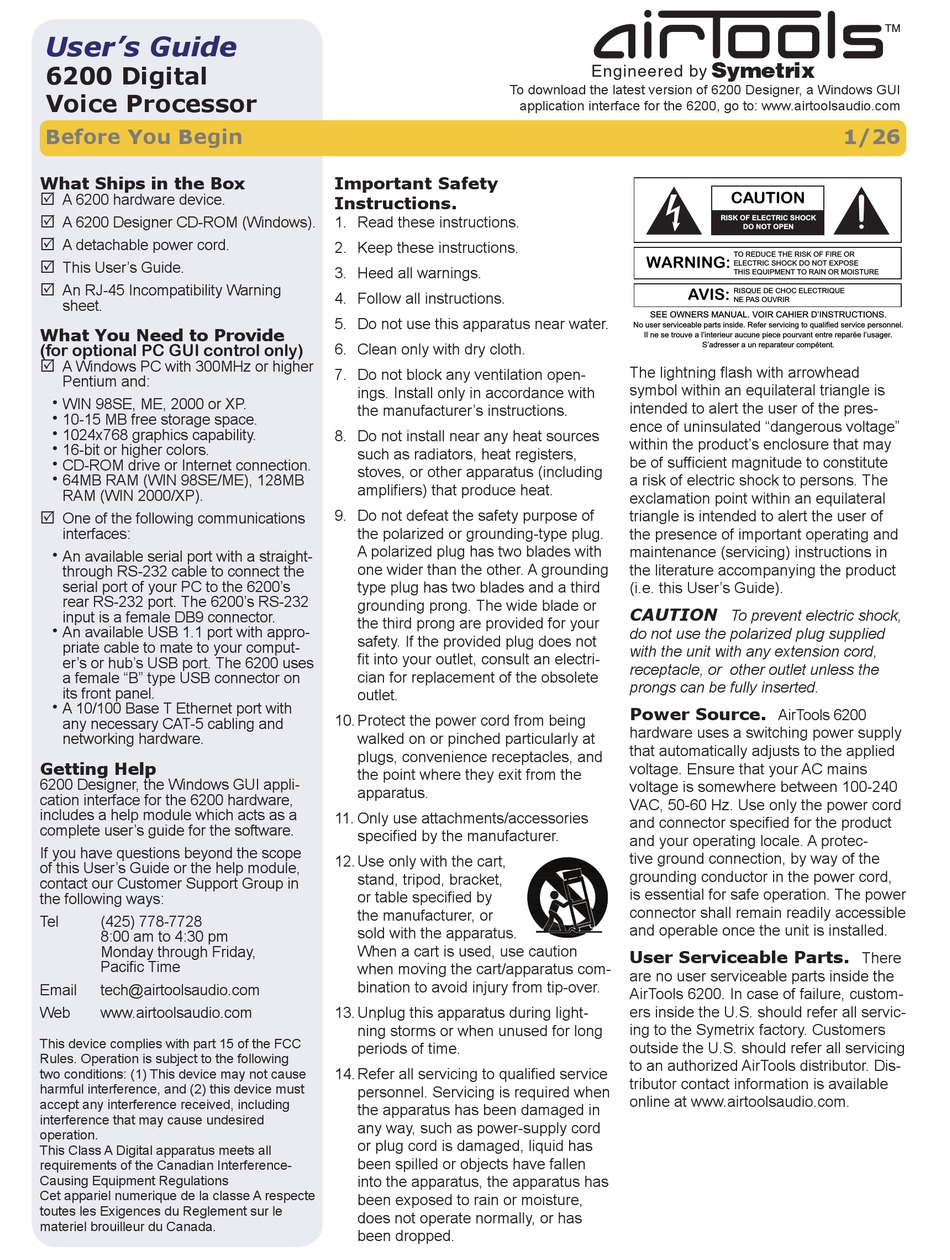

Symetrix airTools 6200 User Manual

User's Guide
6200 Digital
Voice Processor

Before You Begin

What Ships in the Box
A 6200 hardware device.

A 6200 Designer CD-ROM (Windows).

A detachable power cord.

This User's Guide.

An RJ-45 Incompatibility Warning

sheet.
What You Need to Provide
(for optional PC GUI control only)
A Windows PC with 300MHz or higher

Pentium and:
• WIN 98SE, ME, 2000 or XP.
• 10-15 MB free storage space.
• 1024x768 graphics capability.
• 16-bit or higher colors.
• CD-ROM drive or Internet connection.
• 64MB RAM (WIN 98SE/ME), 128MB
RAM (WIN 2000/XP).
One of the following communications

interfaces:
• An available serial port with a straight-
through RS-232 cable to connect the
serial port of your PC to the 6200's
rear RS-232 port. The 6200's RS-232
input is a female DB9 connector.
• An available USB 1.1 port with appro-
priate cable to mate to your comput-
er's or hub's USB port. The 6200 uses
a female "B" type USB connector on
its front panel.
• A 10/100 Base T Ethernet port with
any necessary CAT-5 cabling and
networking hardware.

Getting Help

6200 Designer, the Windows GUI appli-
cation interface for the 6200 hardware,
includes a help module which acts as a
complete user's guide for the software.
If you have questions beyond the scope
of this User's Guide or the help module,
contact our Customer Support Group in
the following ways:
Tel (425) 778-7728
8:00 am to 4:30 pm
Monday through Friday,
Pacific Time
Email tech@airtoolsaudio.com
Web www.airtoolsaudio.com
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
This Class A Digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations
Cet appariel numerique de la classe A respecte
toutes les Exigences du Reglement sur le
materiel brouilleur du Canada.
To download the latest version of 6200 Designer, a Windows GUI
Important Safety
Instructions.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation open-
ings. Install only in accordance with
the manufacturer's instructions.
8. Do not install near any heat sources
such as radiators, heat registers,
stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of
the polarized or grounding-type plug.
A polarized plug has two blades with
one wider than the other. A grounding
type plug has two blades and a third
grounding prong. The wide blade or
the third prong are provided for your
safety. If the provided plug does not
fit into your outlet, consult an electri-
cian for replacement of the obsolete
outlet.
10. Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with the cart,
stand, tripod, bracket,
or table specified by
the manufacturer, or
sold with the apparatus.
When a cart is used, use caution
when moving the cart/apparatus com-
bination to avoid injury from tip-over.
13. Unplug this apparatus during light-
ning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in
any way, such as power-supply cord
or plug cord is damaged, liquid has
been spilled or objects have fallen
into the apparatus, the apparatus has
been exposed to rain or moisture,
does not operate normally, or has
been dropped.
Engineered by
application interface for the 6200, go to: www.airtoolsaudio.com
WARNING:
AVIS:
SEE OWNERS MANUAL. VOIR CAHIER D'INSTRUCTIONS.
No user serviceable parts inside. Refer servicing to qualified service personnel.
Il ne se trouve a l'interieur aucune piece pourvant entre reparée l'usager.
The lightning flash with arrowhead
symbol within an equilateral triangle is
intended to alert the user of the pres-
ence of uninsulated "dangerous voltage"
within the product's enclosure that may
be of sufficient magnitude to constitute
a risk of electric shock to persons. The
exclamation point within an equilateral
triangle is intended to alert the user of
the presence of important operating and
maintenance (servicing) instructions in
the literature accompanying the product
(i.e. this User's Guide).
CAUTION
do not use the polarized plug supplied
with the unit with any extension cord,
receptacle, or other outlet unless the
prongs can be fully inserted.
Power Source.
hardware uses a switching power supply
that automatically adjusts to the applied
voltage. Ensure that your AC mains
voltage is somewhere between 100-240
VAC, 50-60 Hz. Use only the power cord
and connector specified for the product
and your operating locale. A protec-
tive ground connection, by way of the
grounding conductor in the power cord,
is essential for safe operation. The power
connector shall remain readily accessible
and operable once the unit is installed.
User Serviceable Parts.
are no user serviceable parts inside the
AirTools 6200. In case of failure, custom-
ers inside the U.S. should refer all servic-
ing to the Symetrix factory. Customers
outside the U.S. should refer all servicing
to an authorized AirTools distributor. Dis-
tributor contact information is available
online at www.airtoolsaudio.com.
Symetrix
1/26
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
S'adresser a un reparateur compétent.
To prevent electric shock,
AirTools 6200
There
TM
