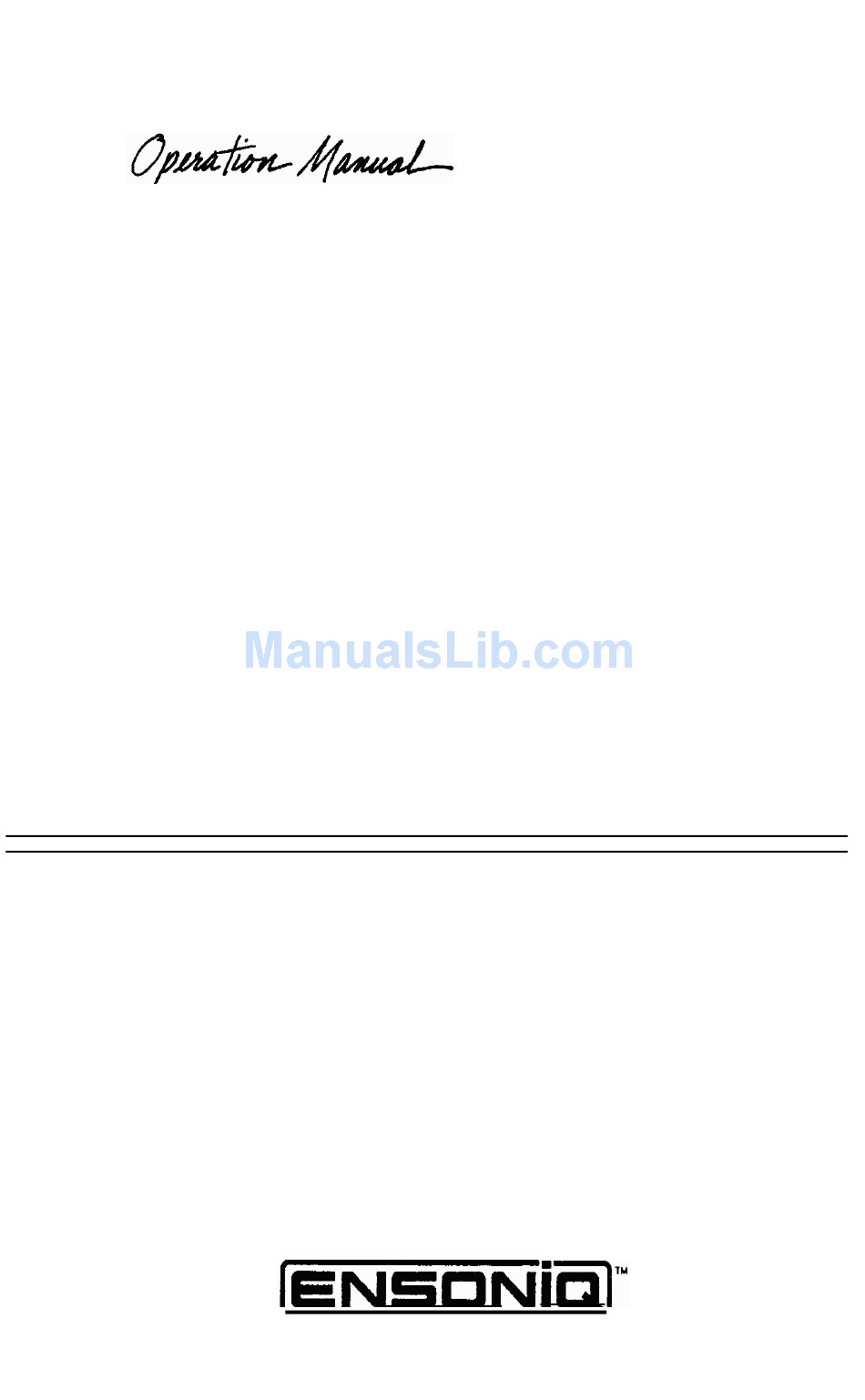

- Page 1 OEX-6sr Output Expander...
- Page 2 ASR/EPS-16 PLUS to the OEX-6sr. Do not connect this cable to any other device that uses a similar connector (such as a Macintosh), as this will damage both units and void their warranties.
- Page 3 WaveSample level or at the track level. Setting-up the OEX-6sr Although you can set-up your OEX-6sr any way you like, we suggest using one of these practical mounting methods: Rubber Feet Only Mount Here’s what you’ll need to get started:...
- Page 4 ASR/EPS- 16 PLUS at a later time. You should now be able to place your OEX-6sr on the velcro strips and have it remain in position. We suggest cleaning the velcro strips periodically to maintain a secure fit.
- Page 5 ENSONIQ) Two 6-32 x 3/8 SEM machine screws (included) Optional 19” rack mount shelf. The following universal rack shelves are compatible with the OEX-6sr: MIDDLE ATLANTIC PRODUCTS model #UTR- 1 For the dealer nearest you, contact: MIDDLE ATLANTIC PRODUCTS, INC.
- Page 6 OEX-6sr Operation Manual Position the OEX-6sr on the optional rack shelf, aligning the two outer holes on the bottom of the OEX-6sr with a pair of holes on the rack shelf. The OEX-6sr can be mounted facing either way, but we suggest facing the Output jacks of the OEX-6sr towards the front of the rack shelf.
-
Page 7: Output Busses
OEX-6sr, as well as to the ASR Main Audio Outputs, is crucial to your getting the most out of the OEX-6sr. The signal flow of the six output busses is shown in the diagram on the facing page. - Page 8 OEX-6sr Oueration Manual...
- Page 9 OEX-6sr Operation Manual Understanding the EPS-16 PLUS Output Busses A sound in the EPS-16 PLUS can be assigned to one of four stereo sends, which we call busses. An understanding of how these busses are routed to the OEX-6, as well as the EPS- 16 PLUS main audio outputs, is crucial to your getting the most out of the OEX-6.
- Page 10 OEX-6sr Operation Manual...
- Page 11 WS=ALL Now select the WaveSample that you would like to route to the OEX-6sr by either pressing the key on the keyboard that the WaveSample is assigned to, or by editing (using the Up/Down Arrows buttons or the Data Entry Slider) to the desired WaveSample number.
- Page 12 Set OUT=AUX 2 and stop. The display should look like this: OUT=AUX 2 have now selected the AUX 2 the OEX-6sr to play output WS 16. You should now be able to hear sound out the A UX 2 outputs. If for some reason you do not, check the following:...
- Page 13 3) Routing an Instrument*Sequence Track or Audio Track to an OEX-6sr Stereo Output You can also route a signal to the OEX-6sr by using the OUT parameter on the Edit/Track page. This method overrides the previous example and requires the results to be saved as a part of a bank.
- Page 14 OEX-6sr Operation Manual Using the OEX-6sr with the EPS-16 PLUS The EPS- 16 PLUS can route a single wavesample, layer, or Instrument/Track to any of the outputs. The procedure for each is similar. 1) Setting up EPS-16 PLUS for use with OEX-6.
- Page 15 WS=All.. The screen should now look like this: NAME OF INST LYR=A WS=ALL Now select the wavesample to send to the OEX-6 by either pressing a key on the keyboard designated for that wavesample, or scroll (using Up/Down Arrows buttons or Data Entry Slider) to the desired wavesample number.
- Page 16 through the effects processor to the main stereo outputs. (You may want to change this.) You have now selected the BUS 2 output of the OEX-6 to play WS 1 6 . You should now be able to hear sound out those outputs.
- Page 17 As with the Edit/Track OUT parameter, the Edit/Track PAN settings will override the Edit/Amp settings. As you will find, the features and flexibility of the OEX-6sr Output Expander are unmatched. Remember, that comments and suggestions from musicians like yourself, help to make our musical products better.
-
Page 18: Limited Warranty
Power to the ASR must be off prior to connecting or disconnecting the OEX-6sr to the ASR. Failure to do so will damage the ASR and/or the OEX-6sr itself. This will invalidate their warranties. - Page 19 ENSONIQ’s liability, for any defective product, is limited to repair or replacement of the product. ENSONIQ shall not be liable under any circumstance for: Damages based upon inconvenience, loss of the OEX-6sr Output Expander, loss of time, interrupted operation, or commercial loss.
- Page 20 OEX-6sr Operation Manual...
- Page 21 Part #9310013401 Price $3.95 (US) Model #OM-6sr...
