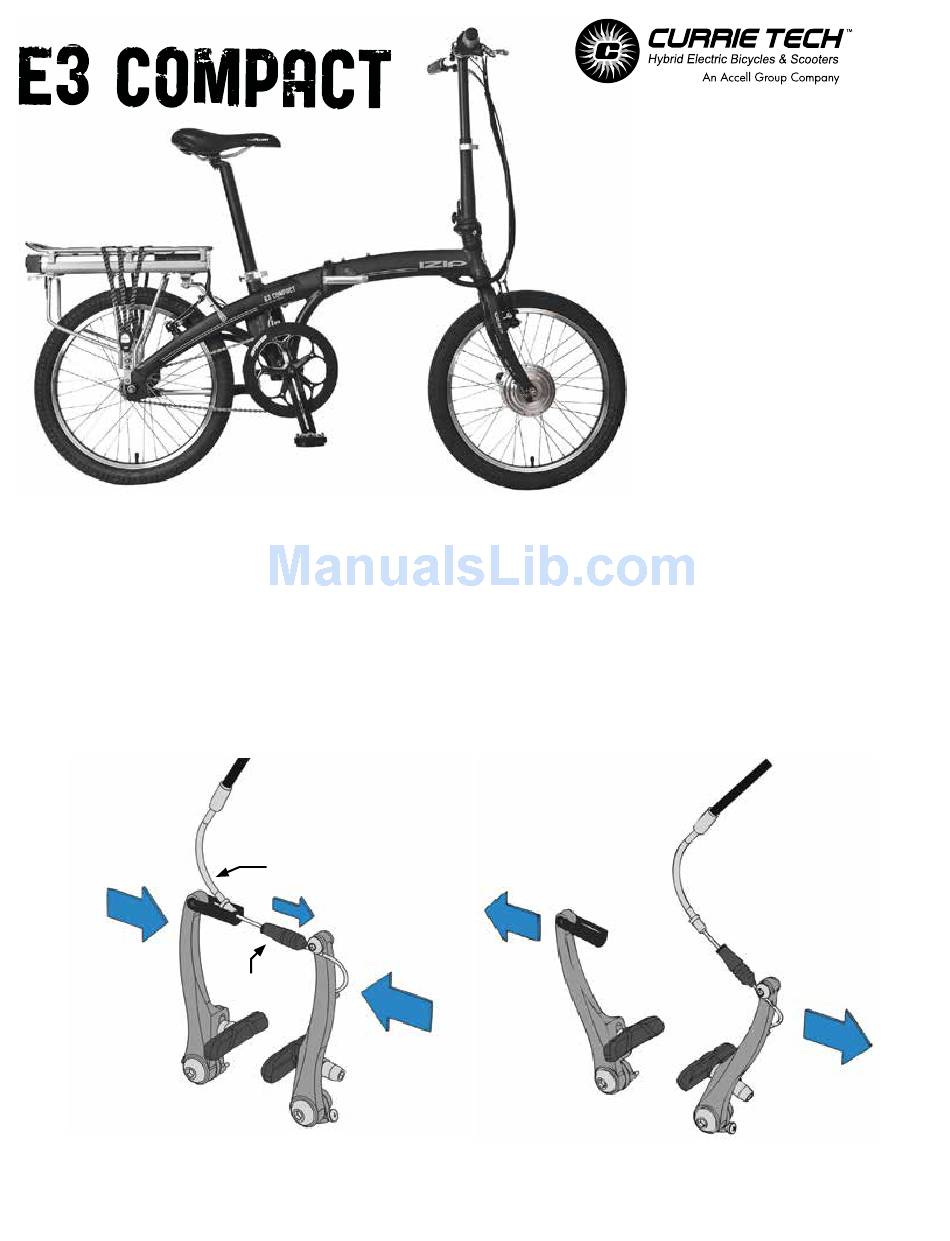

Assembly & Usage Guide - IZIP
1. Install the front wheel in the fork, tightening the two axle nuts with a 15mm wrench to 390 in-lbs/44.1 Nm. Follow the
instructions on page 70 of your owner's manual (Front Wheel - Bolt-on Installation). Make sure the wheel is facing in the correct
direction so the motor does not spin backward: from the perspective of a rider seated on the bike, the left side of the hub has a
circle of 6 bolts, and the motor wire exits the right side.
The front brake needs to be disengaged before the wheel will fit in the fork (see diagram below). Re-engage the brake before
riding. See the section of your owner's manual beginning on page 74 for more information on brakes.
After the wheel is installed, connect the motor to the mating plug on the fork leg. Each side of the plug body has an embossed
arrow; match the arrows to properly align and connect the plugs. Make sure the plugs are engaged completely or the motor will
not run!
Last updated April 9, 2013 10:30 AM
Pull back rubber boot. Squeeze brake arms
inward and pull "noodle" out of holder. To
re-close brake, simply reverse the process.
Noodle
Boot
This guide is intended to be followed by
an experienced bicycle mechanic. If you
have any doubts about your ability to
safely assemble a bicycle, please let a
professional do the work for you!
While assembling this bicycle, be sure to
refer to the Bicycle torque values reference
sheet at the back of your owner's manual.
Components that are not properly tightened
could fail, causing injury.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Izip E3 Compact
Summary of Contents for Izip E3 Compact
- Page 1 Assembly & Usage Guide - IZIP This guide is intended to be followed by an experienced bicycle mechanic. If you have any doubts about your ability to safely assemble a bicycle, please let a professional do the work for you! While assembling this bicycle, be sure to refer to the Bicycle torque values reference sheet at the back of your owner’s manual.
- Page 2 2. Assemble the handlepost. Insert the upper telescoping part of the handlepost into the lower, securing the quick release clamp tightly. The handlepost quick release clamp is functionally the same as a seat post quick release clamp; refer to the instructions on page 66 of your owner’s manual (Seat post clamp: quick release) for detailed use instructions.
-
Page 3: Operation
5. Install the pedals. Note that the left-side pedal is reverse threaded (left-hand); it needs to be tightened counter- clockwise. Be sure to grease the pedal threads. See the torque values chart and page 65 of your owner’s manual (Pedals and crank set) for detailed instructions. - Page 4 The instructions on the following pages are reproduced from printed materials created and copyrighted by Dahon. Headset Your headset should be checked periodically. If there is play or looseness in the fork or handlepost, the headset may need to be adjusted. A properly adjusted headset eliminates play or looseness while allowing the handlebars to be turned easily.
-
Page 5: Handlepost Hinge
Handlepost Hinge The Different Handlepost Hinges The latch of the handlepost hinge on Dahon folding bikes should be checked before each ride to make sure OPEN CLOSED that it closes tightly to secure the handlepost. A closed handlepost hinge with a properly adjusted and secured latch should have little to no side-to-side movement. -
Page 6: Dealer Pre-Delivery Checklist
Dealer Pre-delivery Checklist Part Item to Check Passed Remarks The frame is free from damage or defect. All frame joints are free from physical defect or damage. The main hinge(s) opens and closes freely. Frame The main hinge(s) is free from all play when locked. The main hinge safety latch functions correctly. - Page 7 Part Item to Check Passed Remarks Are free from physical damage or defect, are correctly seated in the right direction. Tires Have the correct air pressure, dust caps are present on the valves. Wheel rims, bearings and spokes are free of physical damage or defect. Wheel nuts and spoke nipples are tight.
- Page 8 Rotate the handlebar so the brake levers are pointing straight down. Extending the handlepost until the red dot on the upper post is visible helps the handlebars align properly when folded. Be sure to lower it past the minimum insertion line (marked on the upper post) before riding again.
- Page 9 ©2009 DAHON | 2008.11.IL.UNO | http://www.dahon.com/support Last updated April 9, 2013 10:30 AM...
