KGuard Security KG-CA108-H03 User Manual

【User's Manual name】

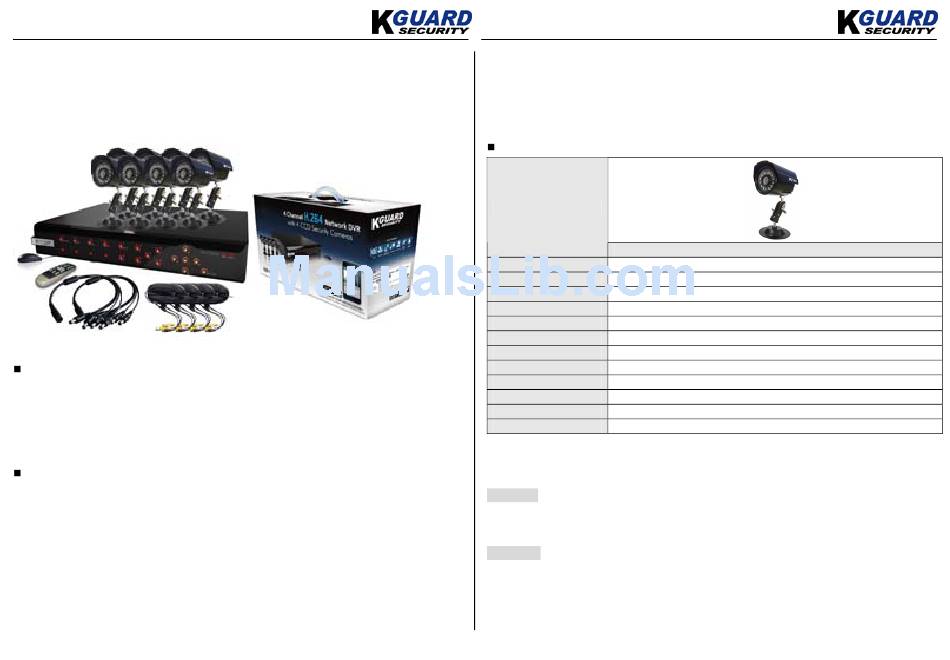

KG SHA series DVR Combo KIT_8ch DVR Combo KIT
Model Name: KG-CA108-H03
8ch DVR + Camera KIT ( Camera *8pcs )

Overview

A perfect & complete combination of high quality standalone DVR and IR
cameras for day and night environment. Stylish & streamline hardware design, user
friendly software operation interface, excellent system performance function and
quick/easy installation. The ideal surveillance solution for economical and entry level
market and for you.

Features

【DVR】
1. 4/8Ch Video-in & 1Ch Audio-in
2. Display & Recording Speed: 4/8Ch:120/240 fps(N) ; 4/8Ch: 100/200 fps(P)
3. Max. Resolution: 1920x1200
4. Up to 1 pcs of 2TB SATA HDDs
5. Video Compression Frame: H.264
6. Mobile Phone remote surveillance ( iPhone, blackberry, windows mobile, Symbian
phone )
【IR Camera】
1
【User's Manual name】
1. 1/3" Sony or1/4" SHARP CCD
2. High Resolution
3. 10 or 20M IR Distance
4. Weatherproof (IP66)
5. Illumination: 0Lux(IR ON)

Specifications

IR Camera Model
Image Sensor
Effective Pixel
Horizontal Resolution
IR Distance
Video Output
SIN Ratio
Min Illumination
Lens Mount
Electronic Shutter
Weather Proof
Operating Temp
Power Supply
*1: All specifications are subject to change without notice. Details please refer to the
real product. The outline of product and bundled software versions are subject to
change without notice.

PROFILE

*This product is adopted CCD and digital signal processor (DSP) technique. Plugboard is processed with
SMT art design. This style is of reliable quality and excellent image. It has strong capacity to defend the
interference magnetism. It's durable and installed easily. It is your best choice for CCTV system.
CAUTION
*Please use the camera in clean, dry and no dust environment or set a protective cap which quality is better
than lP65 for it. the camera will be longevity of service.
*ln the condition of the camera without lens and cover cap. Please don't put it under the high light especially
under the sunshine.
*Please don't touch CCD component by your hand directly. Using soft cloth dipping alcohol to wipe it off
when you need to clean it.
www.kguardsecurity.com www.kguardsecurity.com
IR Camera
1/3" Sony or 1/4" SHARP CCD (*1)
PAL: 500(H)X582(V) ; NTSC:510(H)X492(V)
420/480/520TV Line (*1)
10 or 20M (*1)
1.0Vp-p. 75ohm (BNC)
>48dB
0 LUX /F1.2
3.6mm Lens
PAL: 1/50-1/100.000sec ; NTSC: 1/60-1/100.000sec
IP66
-10° ~ 50°C
12V DC, 200mA (IR ON)
2
