OWC Multi-Mount
Chapter 6 - Bracket Installation
6 OWC MULTI-MOUNT INSTALLATION

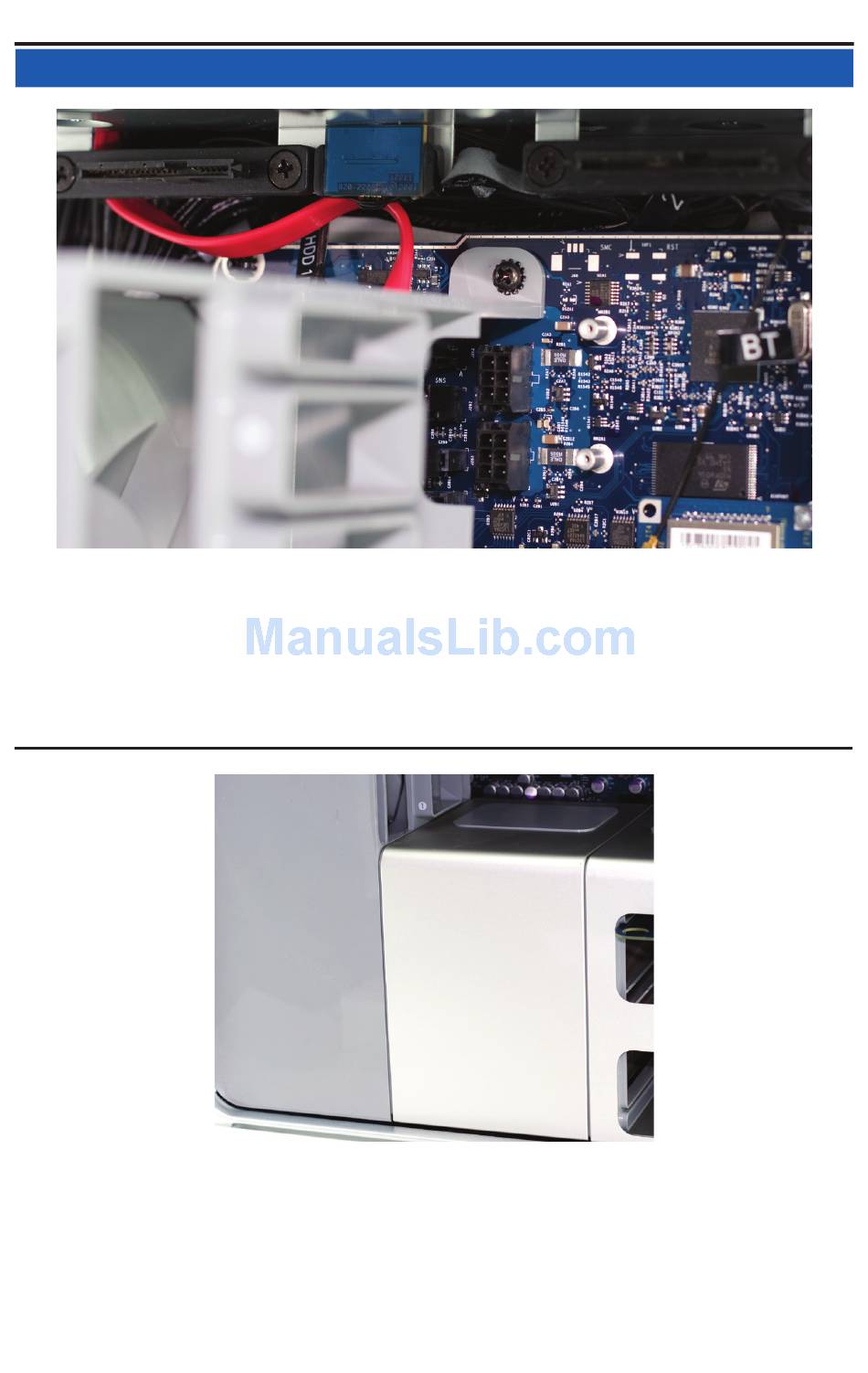

Reinsert the fan module into the computer, sliding it on it's base track
and then reinserting it's Phillips screw into the logic board. Take careful
note of the location of the red SATA cable in this picture - you will need
to make sure that the cable is not behind the mounting bracket when
you tighten the screw.
Mac Pro 667MHz Owners; Turn to the end of Chapter 2 and work
backwards to complete reassembly of your Mac Pro.
Mac Pro 800MHz Owners: Reinsert the Phillips screw you removed
from the base of the fan unit. Replace the processor cover. You're all
set - enjoy your new drive(s)!
