Sahara NetSlate a525 Quick Start Manual

Tablet pc
Hide thumbs

Advertisement

Quick Links

Download this manual
Top Side
Left Side
!
@Z Z
@
CM
(
#
BL
$
BM
Z %
BN
^
&
*
Left Side
1.
Carry Strap Attachment
2.
3G WWAN and GPS
Auxilary Antenna
3.
Ethernet Port (RJ45)
4-5.
USB 2.0
6.
Headphone Jack
7.
Audio In Jack
8.
Stylus Pen Garage
9.
SAS Button
10.
Screen Rotation Button
11-12.
Volume or Brightness
Control Buttons (user
programmable)
BO
BPBQ BR BS BT BU

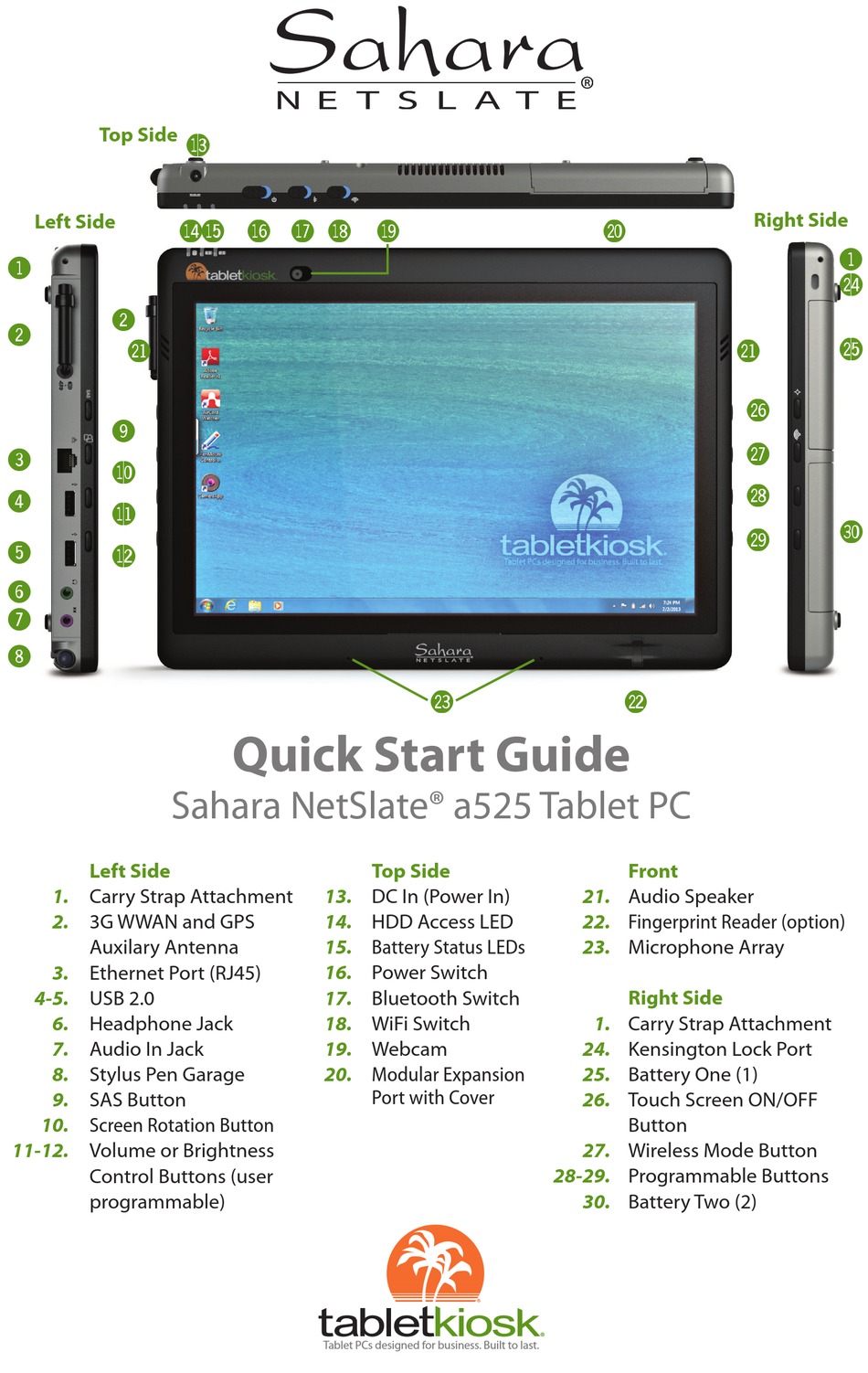

Quick Start Guide

Sahara NetSlate® a525 Tablet PC
13.
14.
15.
16.
17.
18.
19.
20.
Tablet PCs designed for business. Built to last.
CO
Top Side
DC In (Power In)
HDD Access LED
Battery Status LEDs
Power Switch
Bluetooth Switch
WiFi Switch
Webcam
Modular Expansion
Port with Cover
CL
CN
Front
21.
Audio Speaker
22.
Fingerprint Reader (option)
23.
Microphone Array
Right Side
1.
Carry Strap Attachment
24.
Kensington Lock Port
25.
Battery One (1)
26.
Touch Screen ON/OFF
Button
27.
Wireless Mode Button
28-29.
Programmable Buttons
30.
Battery Two (2)
Right Side
!
CP
CQ
CM
CR
CS
CT
DL
CU

Advertisement

loading
Need help?

Need help?

Do you have a question about the a525 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sahara NetSlate a525

  • Page 1: Quick Start Guide

    Top Side BPBQ BR BS BT BU Right Side Left Side @Z Z & Quick Start Guide Sahara NetSlate® a525 Tablet PC Left Side Top Side Front Carry Strap Attachment DC In (Power In) Audio Speaker 3G WWAN and GPS...
  • Page 2 CAUTION: When turning over the Sahara NetSlate, be careful not to place it on a surface that could scratch or damage the touch panel. You can place the included slip case on the surface before carefully setting the tablet down to protect the screen.
  • Page 3 AC adapter and running it on battery power for the first time. NOTE: When you first connect the Sahara NetSlate into an external power source, the battery charge indicator(s) will begin to glow orange. When the battery is fully charged the indicator(s) will turn green.
  • Page 4 When using a digitizer, you may only navigate using the pen. On a dual mode Sahara NetSlate a525 Tablet PC, the screen will intelligently sense the tip of the stylus pen when it draws near (within 10 - 14 mm) and automatically switch on the digitizer. The pen’s tip doesn’t need to touch the screen to activate and move the pointer.
  • Page 5 In the “Display” tab, tap on the “Calibrate... ” button. If a Window appears asking you which If your Sahara NetSlate a525 has a dual mode type of screen you to want to calibrate (“Touch screen, you will see this window asking you to choose an input panel to calibrate.
  • Page 6 NOTE: If you fi nd the “Standard Calibration” to be too imprecise, the “Advanced Calibration” mode off ers additional points for calibrating. For both modes, it is recommended that you use the stylus pen, rather than your fi nger, to produce the most accurate results. Follow the on-screen instructions by pressing and holding on each red square that appears until you are...
  • Page 7 , the Bluetooth icon in the System Tray will turn red. To reenable it, double-tap on the icon. Using the Modular Feature Expansion System Your Sahara NetSlate features the Modular Feature Expansion System which allows for the easy integration of expansion modules that enhance the capabilities of your Tablet PC.
  • Page 8 Programming the Tablet Buttons The Sahara NetSlate has four function buttons on both the left and right sides of the system. Most of them can be reprogrammed to some degree to serve a variety of functions, including emulating keyboard keystroke combinations, launching applications and taking a picture with one of the built-in cameras.
  • Page 9 Before running the Tablet PC on battery power for the first time, you should fully charge both of the batteries. On the front of the Sahara NetSlate just above the TabletKiosk logo are two battery status indicators. These indicators will track the charging status of the system’s two Lithium-Ion battery packs.
  • Page 10 AC adapter and turn the system back on. Cleaning and Caring for Your System After sustained usage, you will probably find that your Sahara NetSlate will require cleaning. Never use household cleaning supplies or glass cleaner with ammonia to clean the case or the LCD screen.

  • Page 11: Important Safety Instructions

    Sahara NetSlate. Keep this information and the User’s Guide for future reference by you and other users. Never pour liquids into any opening or directly on the Sahara NetSlate. This could result in fire or electrical shock.
  • Page 12 ©2013 Sand Dune Ventures, Inc. d/b/a TabletKiosk. All Rights Reserved. Sahara NetSlate and TabletKiosk are registered trademarks of Sand Dune Ventures, Inc. in the United States and other countries. Windows, the Windows logo, and Windows 7 are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.
