Summary of Contents for Festivo 75 CF

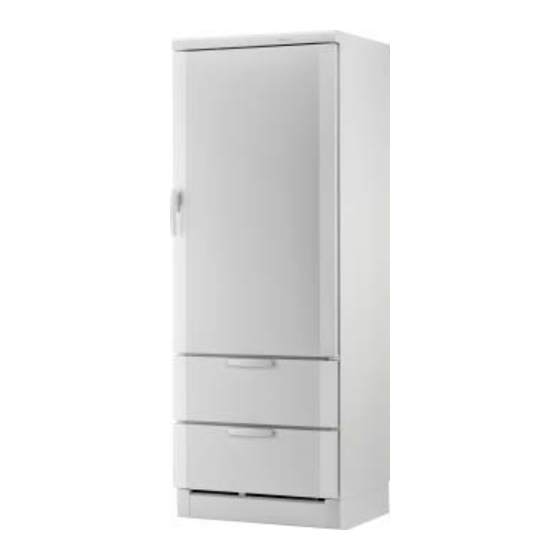

- Page 1 Cooling Cabinet / Freezer 75 CF It is strongly adviced that these instructions be read carefully prior to the installation and operation your new refrigerator/freezer. INSTRUCTIONS FOR INSTALLATION AND USE...
-
Page 2: Table Of Contents
Table of Contents SAFETY PRECAUTIONS ............3 STIPULATIONS FOR USE ............ 3 SAFETY INFORMATION ............4 Before starting to use the appliance ......4 INSTALLATION..............4 Location ................. 4 Electric connection ............5 Balancing and locking the castors ........ 6 Prevention of tilting ............ -
Page 3: Safety Precautions
Safety precautions Stipulations for use In connection with installation, it is essen- The cooling cabinet /freezer is suitable for tial to fix a tilting guard also. cooling and freezing of foodstuffs. When cleaning the cooling cabinet /free- It is intended for use in households. For zer, switch off the voltage using the main use in other establishments, it is necessa- switch and remove the plug from the... -
Page 4: Safety Information
• take the plug of the appliance out of the electric socket ventilated room. • ventilate the room for several minutes Do not situate the cabinet in the imme- • contact the Festivo-service orga- diate vicinity of a radiator, stove or other nization. heat source. -
Page 5: Electric Connection
The floor cover can also be ordered from Festivo-service. A suitable place for the socket is in the back wall at the location of the cooling ca- The refrigerator-freezer combination can... -
Page 6: Balancing And Locking The Castors
BALANCING, AND LOCKING THE FITTING THE BOTTOM FRONT PLATE CASTORS Push the cooling cabinet /freezer into Fix the bottom front plate in place. The place. The appliance must be installed at front plate sticks onto the bottom part by the same level as the surrounding floor means of clamps (C). -
Page 7: Fitting The Cooling Cabinet Shelves
FITTING THE COOLING CABINET M6 x 20 SHELVES The cooling cabinet part has glass shelves 3 pcs and one half glass shelf as standard equipment. Upper hinge Fitting the shelves: see the picture. Bearing Drawing 1 Lower M5 x 16 hinge ADJUSTMENT OF THE DOOR If it is necessary to adjust the door, the... -
Page 8: Functional Description
In the cooling cabinet, ice formed on the Functional description expansion coil melts automatically and the resulting water is conducted to the evapo- ration trough in the compressor area, FUNCTIONING OF THE COOLING from which it evaporates automatically. MECHANISM The cooling mechanism consists of the AIR CIRCULATION compressor, the condenser and the ex- pansion coil;... -
Page 9: Switches And Thermostats
Switches and thermostats Main switch ( I ) This switches on the voltage for the appliance. Red indicator expresses wich compartment is in the display C -button Guide Display cooling cabinet Main switch (I) (not buttons) F -button freezer Adjusting the fresh storage tempera- Control knob of the fresh storage ture If it is desired to alter the temperatures,... -
Page 10: Using The Cooling Cabinet /Freezer
Using the appliance Switching off Before using the appliance, clean its inte- Switch off the appliance using main rior parts, following the instructions on p. switch (I). Do not start to use the appliance imme- If the appliance remains unused during a diately after transportation or after it has long period, then take the plug out of the been kept in a cold place, but let it stand in... -
Page 11: Adjusting The Temperature
Adjusting the temperature Speedy cooling Actual temperature in the refrigerator/ ACTIVATION OF SPEEDY COOLING freezer = display doesn't flash (refrigerator) Set point in the display = display flashes The refrigerator can be activated to Factory set point: operate for 4 hours at a temperature colder than the set value (at about +2...+3 Refrigerator +5°C... -
Page 12: Sounds During Operation
Activating the function: Storage of foodstuffs Press the F-button of the display enough times so that the text SF appears on the COOL STORAGE screen; this text stays on the screen The internal temperature of the cooling throughout the speedy freezing period. cabinet has been adjusted at the factory During speedy freezing, neither the set to +5 ºC. -
Page 13: Frozen Storage
FROZEN STORAGE The length of time that they will keep de- pends on the type of foodstuff. (If frozen foods are kept for longer than the maxi- mum period allowed, their quality will dete- riorate.) PUTTING FOODS IN THE COOLING CABINET / FREEZER Allow warm foods and drinks to go cold before putting them into the cooling cabi-... -
Page 14: Example Of Arrangement
EXAMPLE OF ARRANGEMENT Cooling cabinet: Temperature +2 ... +7 ºC. The upper two shelf levels of the cooling cabinet are, for instance, suitable for sto- ring products that keep a long time, e.g. various preserves and juices. On the next shelf levels you can keep e.g. -
Page 15: Freezing
2 If the quantity to be frozen is more than Freezing 5 kg, then allow the mechanism to go through one freezing cycle (48 hours) Before the freezing process is started, the before beginning the freezing. After the foods already in the freezer are cooled 48-hour freezing cycle, the electronic down further to prevent them warming up thermostat returns automatically to the... -
Page 16: Cleaning
The vegetable drawer can be removed for Cleaning cleaning. The plastic drawer is removed by lifting trough upwards and pulling it out. CLEANING THE COOLING CABINET The drawers withstand machine washing. When replacing the drawer, it is necessa- Stop the mechanism of the cooling cabi- ry to care that it is horizontal and lock to its net using the operating switch ( C ), for place. -
Page 17: Cleaning The Freezer
CLEANING THE FREEZER For that reason, it may be necessary to protect the floor, with a large towel for It is advisable to always do the cleaning of instance. Check now and then to see if the freezer part in connection with the towel should be changed or wrung defrosting. -
Page 18: Functional Disorders
CORRECTING MINOR DISORDERS long-life 3 W LED-light. If the light doesn't work, please contact All functional disorders do not necessarily the Festivo-service organization. require the help of service personnel. So check first whether you can eliminate the The freezer displays excess tempera-... -
Page 19: Error Messages
The freezer will operate despite the Error messages sensor fault, according to the programme set by using the control bar. Please contact the Festivo-service orga- Cooling cabinet nization. E1 + sound signal = sensor fault E3 + sound signal = excess temperature,... -
Page 20: Disposal Of The Appliance
Disposal of the appliance DISCARDED COLD STORAGE APPLIANCES ARE HAZARDOUS WASTE By a law amendment that came into force on 1st January 2002, discarded cold storage appliances are classed in the whole EU area as hazardous waste. Warning! Do not damage the cooling unit! Especially the pipes are not allowed to da- mage because otherwise the refrigerant and oil of the cooling unit will get to the... - Page 22 Suomen Kotikylmiö Oy, Ravitie 3, 15860 Hollola, FINLAND Tel. +358 (0)3 553 8600, fax +358 (0)3 553 8668 www.festivo.fi...
