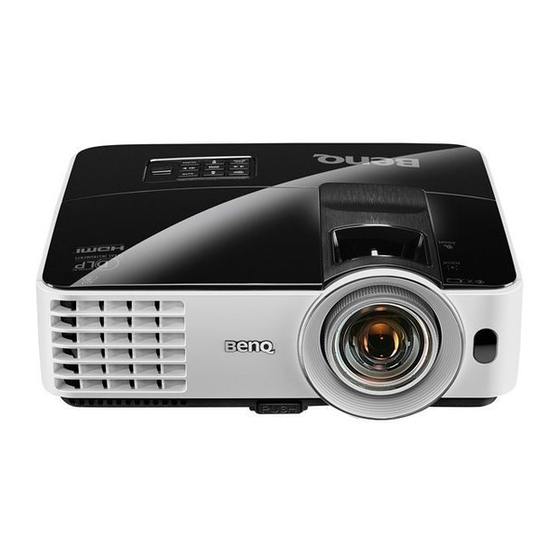

BenQ MX620ST Operation Manual

Network projector
Hide thumbs Also See for MX620ST:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Network Projector Operation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX620ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BenQ MX620ST

Summary of Contents for BenQ MX620ST

  • Page 1 Network Projector Operation Guide...

  • Page 2: Table Of Contents

    Table of contents Preparation..................3 Connecting the projector with your computer ........3 Wireless connection (for selected models)................. 3 QPresenter ..................5 Minimum system requirements ..............5 Downloading QPresenter................5 Installing QPresenter ..................5 For PC ............................5 For MAC ............................6 Using QPresenter.....................6 Controlling the projector remotely through a web browser.....................9 Using the web control lock................13 Projecting computer screen contents ............15...

  • Page 3: Preparation

    QPresenter. Connecting the projector with your computer Wireless connection (for selected models) Plug a BenQ wireless dongle (optional) to the USB Type A connector on the projector. Do one of the following: •...
  • Page 4 In this mode, the projector establishes a wireless LAN which allows computers to connect to this specific wireless LAN. Make sure the BenQ wireless dongle (optional) is plugged to the USB Type A connector on the projector.

  • Page 5: Qpresenter

    • Web browser: Internet Explorer version 7 or 8 (Java Plug-in should be installed and JavaScript should be enabled.) BenQ does not guarantee the compatibility in respective user environments. Different PC/notebook may have different compatibility results. Downloading QPresenter There are several ways to do it: •...

  • Page 6: For Mac

    Set user name and password of Qpresenter and then click "Next". Click "Install" to complete the process. For MAC When the download is complete, click the dmg file. Double-click the file, and this will mount the disk image called QPresenter. Double-click the disk image "QPresenter"...
  • Page 7 The Special Feature page provides some advanced functions to manage the projected images. • To display a full screen, click Full Screen. • To display a partial screen, click Selectable. A square appears on your screen. You can adjust its size and place it where you want to project. This function is not available when audio out is activated.
  • Page 8 The Advanced Settings page allows you to configure QPresenter. • To display still pictures, click the down arrow to reveal a drop-down list and select Graphic. Click Apply. To display video clips, click the down arrow to reveal a drop-down list and select Video. Click Apply. Graphic mode: worse image quality but faster transmission speed.

  • Page 9: Controlling The Projector Remotely Through A Web Browser

    Controlling the projector remotely through a web browser This function is not available when the broadcasting function is activated. Once you have the correct IP address for the projector and the projector is on or in standby mode, you can use any computer that is on the same local area network to control the projector.
  • Page 10 The Virtual Keypad page displays a virtual keypad with which you can control the projector as if using the physical keypad on the projector. See the chapter "Controls and functions" in the user manual for how to operate it. The Display Setting page provides some selective OSD menu items necessary for controlling the projector or adjusting the projected pictures.
  • Page 11 The Picture Setting page provides all the OSD menu items in the PICTURE menu for adjusting the projected pictures. See the chapter "Menu Operation" in the user manual for how to use them. The Information page displays the information about the projector status, network status.
  • Page 12 To have access to the Admin page, you need to enter a password. The page provides more network settings. The default password is “0000”. If you want to change the password, enter the Basic page. The Basic page allows you to change the password and set the maximum number of connected computers.

  • Page 13: Using The Web Control Lock

    The Wireless LAN page allows you to adjust the Wireless LAN settings. The maximum length for SSID is 16 bytes. Please use different SSID when more than two projectors are connecting through wireless LAN. These quick buttons are always provided on the web page for you to operate the projector.
  • Page 14 Go to the SYSTEM SETUP: Advanced > Security Settings > Change Security Settings menu after opening the OSD menu system. Press MODE/ ENTER. The message “INPUT PASSWORD” appears. Enter the current password. If the password is correct, the OSD menu returns to the Security Settings page. Press to highlight Web Control Lock and press to select On or Off.

  • Page 15: Projecting Computer Screen Contents

    USB mini B port on the projector. Press SOURCE and select USB Display in the source bar. Go to My Computer on you PC and double-click the BenQ QPresenter icon. The projector automatically displays the content in your computer. Supported Resolutions The projected computer screen will be automatically rescaled to 1024 x 768.
