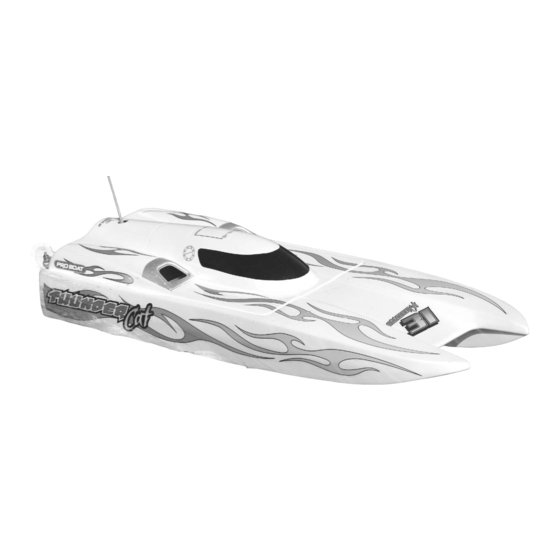

ThunderCat 31 Assembly Manual
.32 Size Nitro Powered Catamaran Boat
Specifications
Length ..................................................................................................31 in (775mm)
Beam .................................................................................................11.5 in (287mm)
Engine .................................DYN .32 Marine w/Tiger Drive and Tuned Exhaust
Radio System ..........................................................................Pro Boat AM 27MHz
Weight ...................................................................................................6.3 lb (2.8 kg)
Fuel Tank Capacity ........................................................................12 oz (0.35 liter)
Advertisement
Table of Contents
Summary of Contents for Pro Boat ThunderCat 31
- Page 1 .32 Size Nitro Powered Catamaran Boat Specifications Length ....................31 in (775mm) Beam ....................11.5 in (287mm) Engine .........DYN .32 Marine w/Tiger Drive and Tuned Exhaust Radio System ................Pro Boat AM 27MHz Weight ....................6.3 lb (2.8 kg) Fuel Tank Capacity ................12 oz (0.35 liter)
-
Page 2: Introduction
Carefully unpack ThunderCat 31 and examine the boat and its contents. The box should contain the ThunderCat 31 RTR with radio installed, a boat stand, and the Pro Boat radio transmitter. If you are missing any of these items or notice any damage, immediately contact the place of purchase. -
Page 3: Table Of Contents
Section 14: Appendix ..............................15 Additional Required Items Although the ThunderCat 31 comes fully assembled and ready for action, you will need a few tools to get you ready to run your boat. You will need the following: Blue Thunder™ 20% Fuel (quart) (DYN2320) -
Page 4: Warranty Information
Warranty Information Pro Boat™ guarantees this kit to be free from defects in both material and workmanship at the date of purchase. This warranty does not cover any parts damaged by use or modification. In no case shall Horizon Hobby’s liability exceed the original cost of the purchased kit. Further, Horizon Hobby reserves the right to change or modify this warranty without notice. -
Page 5: Section 1: Building The Boat Stand
Section 1: Building the Boat Stand 1. There are 4 plywood pieces. The 2 short plywood pieces are the ends of the boat stand. 2. Attach the 2 long plywood pieces of the interlocking boat stand to one end of the short plywood pieces. -
Page 6: Section 3: Installation Of Receiver And Transmitter Batteries
Section 3: Installation of Receiver and Transmitter Batteries Receiver Batteries 3. Remove the dry cell battery holder from the radio box and unwrap the foam from around the dry cell battery holder. Install 4 “AA” alkaline batteries as shown. Note the proper polarity. Wrap the battery box in foam. - Page 7 Section 3: Receiver and Transmitter Batteries (continued) Transmitter Batteries 1. Remove the transmitter from the box. 3. Secure the batteries using the battery cover. 4. Turn on the radio and confirm that all LEDs illuminate, indicating proper installation of fully charged batteries.
-
Page 8: Section 4: Range Checking The Pro Boat Radio System
Section 4: Range Checking the Pro Boat Radio System Before the first run of the ThunderCat 31, you 3. If everything appears to be operating should check the radio for proper operation and to correctly, raise the antenna and start the engine... -
Page 9: Section 8: Handling Adjustments
Section 8: Handling Adjustments Opertate your ThunderCat in low to medium wake conditions to avoid having problems with the boat overturning. If the conditions are questionable, adjust the prop strut down a bit to reduce the likelihood of having the boat overturn. Section 9: The Dynamite .32 Marine Engine Water-Cooled Engine Carburetor... -
Page 10: Section 10: Starting The Engine
Section 10: Starting the Engine Hand-Held Starter Operation 1. Fully charge a 7.2V sub-C battery pack and install it in the starter as shown. Fill the fuel tank with 20% glow fuel and attach a fully charge glow driver to the glow plug. Turn on the radio system and insert the starting wand into the Tiger Drive and actuate the starting switch until the engine begins to run. - Page 11 Section 10: Starting the Engine (continued) Breaking in Your Engine Needle Settings The first start-up of the engine is the most critical When adjusting the settings, always adjust the moment of the engine’s life, dictating how the needles in small increments, about 1⁄16 of a full engine will perform from that time forward.
-
Page 12: Section 11: Troubleshooting Guide
Wipe off any exhaust residue from the boat. If operation of the boat will prevent many problems. you operate the ThunderCat 31 in salt water, it is suggested that you thoroughly rinse the deck, hull, Before operating ThunderCat 31... - Page 13 Section 12: Maintenance (continued) Lubrication It is important to lubricate the flex shaft of the ThunderCat 31 with silicone cable grease after every two hours of operation. You can purchase this silicone grease at your local hobby store. To lubricate the drive shaft, follow these simple instructions.
-
Page 14: Section 13: Thundercat 31 Replacement Parts
Section 13: ThunderCat 31 Replacement Parts In the event that you need to purchase replacement parts for your engine or the ThunderCat 31, please see your local hobby store. You can also purchase them from Horizon Hobby by calling 1-800-338-4639 or shop online @ www.horizonhobby.com... -
Page 15: Section 14: Appendix
Section 14: Appendix Engine compartment and components. Transom and components. Engine water cooling lines. - Page 16 © 2006, Horizon Hobby, Inc. 4105 Fieldstone Road Champaign, Illinois 61822 (877) 504-0233 www.horizonhobby.com Printed in China 8379...
