Pansat T-100 User Manual

High-definition digital terrestrial & cable receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

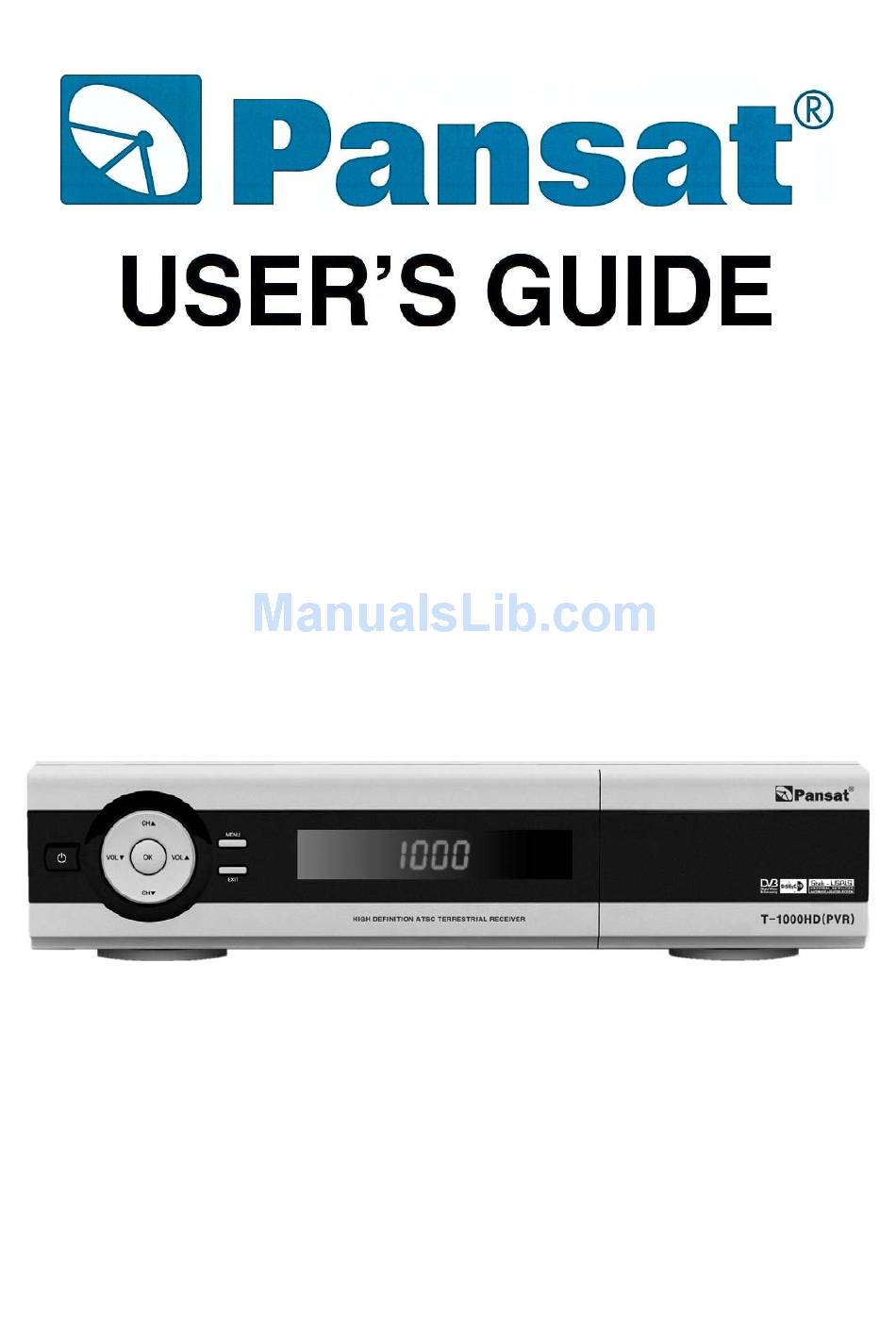

T-1000
HIGH-DEFINITION DIGITAL
TERRESTRIAL & CABLE RECEIVER
Panarex Electronics
Sun Valley, California, U.S.A.
ⓒ 2009 by Panarex Electronics

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pansat T-100

Summary of Contents for Pansat T-100

  • Page 1 T-1000 HIGH-DEFINITION DIGITAL TERRESTRIAL & CABLE RECEIVER Panarex Electronics Sun Valley, California, U.S.A. ⓒ 2009 by Panarex Electronics...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS CAUTION RISK OF ELECTRONIC SHORK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRONIC SHORK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PART INSIDE. REFER SERVICE TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage”...

  • Page 3: Important Safeguards

    NOTE Never connect the plug to an electrical source other than one providing 120V~, 60Hz power. Use only the attached power cord. If the polarized AC cord does not fit into a non- polarized outlet, do not cut or file the blade. You are responsible for having the obsolete outlet replaced with a polarized outlet.
  • Page 4 plug having one blade wider than the other). This plug will fit into a power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet.
  • Page 5 ⓒ 2009 by Panarex Electronics...
  • Page 6 FCC RF INTERFERENCE STATEMENT NOTE : This equipment has been tested and found to comply with the limit for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference will occur in a particular installation.

  • Page 7: Table Of Contents

    PREFACE I. OVERVIEW 1. WHAT IS THIS PRODUCT FOR? 2. WHAT FEATURE DOES THIS PRODUCT OFFER? 3. FOR YOUR SAFETY 4. PLEASE CHECK THE FOLLOWING ACCRSSORIES ARE ENCLOSED 5. HOW TO USE THE REMOTE CONTROL KEY 6. FRONT PANEL 7. REAR PANEL 8.

  • Page 8: What Is This Product For

    I. OVERVIEW 1. WHAT IS THIS PRODUCT FOR? This product is designed for using Digital Terrestrial & Cable and allows you to enjoy a lot of broadcasting whenever you want to watch it anytime. By simply pressing the button of the remote control unit, the vivid picture and life –like sound of digital broadcasting that your TV portrays through this product, allows you to watch whatever channel you wish of the digital broadcasting.
  • Page 9 come into the inside the product. ▪ Do not connect to modify cables when the product is plugged in. ▪ Socket-outlet shall be installed near the equipment and shall be easily accessible. ▪ Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases shall be placed on the apparatus.

  • Page 10: How To Use The Remote Control Key

    5. HOW TO USE THE REMOTE CONTROL KEY Function Turns the equipment on/off Sounds Off/On Toggles between TV and Radio operation TV/RAD Shows signal / quality level Shows current Time TIME Holds the picture or release the pause PAUSE Selects audio mode AUDIO (mono / Stereo, left only and right only).

  • Page 11: Front Panel

    6. FRONT PANEL 2 3 4 2 4 5 6 POWER To put power in and out of standby mode VOLUME To make volume up and down. Moves the cursor upward/downward in the menu screen To confirms selection, To show Channel List CHANNEL To move up and down in the menus, To change channels EXIT...

  • Page 12: Rear Panel

    7. REAR PANEL 1 2 3 4 6 7 9 12 13 NAME FUNCTION ATSC INPUT ATSC / Cable signal input ATSC OUTPUT Loop-through signal output VIDEO Composite Video Output AUDIO-L/R Left/Right Audio Output YPbPr Component video output S/PDIF For digital audio output IF INPUT IF INPUT from LNB to receiver (Satellite option) IF OUTPUT...
  • Page 13 Connecting to digital TV using YPbPr port OR HDMI port. Connect Receiver’s YPbPr output and Audio L/R output to a YPbPr in and Audio L/R in of TV or connect Receiver’s HDMI port to HDMI port of TV. Please refer TV’s user manual for detailed YPbPr and/or HDMI connection method. Connecting TV to A/V receiver (Dolby digital amplifier) Connect Receiver’s optical audio output port to A/V receiver.

  • Page 14: Ii. Operating

    II. OPERATING 1. Start Up Please follow the brief procedure below and watch the satellite programs. 1) Select the User Setup and confirm Language 2) Select the Installation for terrestrial or cable 3) Execute scanning to find program 4) Exit from installation after all programs are searched. Language When the receiver is turned on for the first time, main menu is appeared as below photo.
  • Page 15 2.1 Automatic Scan Select a specific media by using keys ◀ ▶ between Terrestrial or Cable. Select frequency range by using keys ◀ ▶ Press [OK] to start scan procedure in the ‘Start Scan’ 2.2 Manual Scan Select a specific media by using keys ◀...
  • Page 16 3.1 Channel Edit window You can move highlight by press▲▼ key and press [OK] key to implement between Sort, Move, Delete, P-Lock, Skip, Rename. You can press [Menu] or [Exit] keys to go back to “Edit Channel” menu. 3.2 Edit – Sort Press [OK] key can open the “Sort”...
  • Page 17 3.4 Edit – Delete Press [OK] key, then press ▲▼ key to select delete method and press [OK] key. Press ◀ ▶ key to make a mark. Press [OK] to delete and press [OK] key again to confirm delete in the “Press OK to save or EXIT ”information window.
  • Page 18 3.7 Edit – Rename Press [OK] key can enter rename mode and press ▲▼ key to move the highlight and press ◀ ▶ key to enter keyboard type window. After edit name move to place of [OK] and press [OK] key. 3.8 Favorite Edit You can change destination favorite 1 ~ 5 by using [FAV] key.

  • Page 19: User Setup

    4. User Setup In this USER SETUP mode, you can select the sub-mode by pressing [OK] and ▲▼ key. The changed set-up is activated and stored by pressing [EXIT] key. 4.1 Time Setting 4.1.1 Current Time After selecting Time mode, you can adjust the time as follows. - Current Year : Set up by pressing numeric keys.
  • Page 20 4.1.2 Timer List After selecting timer, you can see timer list and adjust the time as follows. - Time zone - summer time - Timer mode : Once, Daily - Wakeup time : Set up by pressing numeric keys - Sleep Time : Set up by pressing numeric keys 4.2 Parental Control After selecting parental control and entering the correct password, the screen appears.
  • Page 21 (2) To enter parental control menu (3) To enter edit menu (4) To execute factory setting (5) To enter installation menu In case of forgotten password programmed, call Pansat’s dealer to get master factory password. 4.3 Language Setting 4.3.1 OSD Language Press EXIT key after you select your preferable language and audio language by using ◀...

  • Page 22: Osd Setting

    4.4 AV Setting 4.4.1 TV Screen Format You can set the TV aspect ratio (4:3 for normal TV & 16:9 for wide TV) by pressing ◀ ▶ keys. 4.4.2 Video Format You can set by pressing ◀ ▶ keys (480p, 720p, 1080i).

  • Page 23: System Setup

    If you do not want to continue this mode, press [EXIT] key before you enter password. Common password is “0000”. In case selected password is forgotten, call Pansat’s dealer to get factory master password.
  • Page 24 6. USB (1) USB menu can be watched after inserting USB stick and the menu list cab be displayed. (2) Flash ROM writing file is in code backup folder and channel data is in channel data backup folder. (3) Select Flash ROM writing file and press [OK]. API code transfer menu is displayed and API code download is executed.

  • Page 25: Channel List

    7. Channel List You can see the channel list as shown in the figure by pressing OK key. To watch another channel, move the cursor to the channel you want by using ▲▼ PG↑ PG↓ and press [OK] key. If favorite channels are saved, the list is changed from channel list TV to favorite list.

  • Page 26: Program Guide

    8. Program Guide The title and start time of the program is shown as in the figure after pressing [EPG] key. Select the particular channel and press [OK] key then the channel will be changed. If you want to watch TV with full screen, press [EXIT] key. By press [RED] key, you can switch between multi channel EPG mode and single channel EPG mode.

  • Page 27: Recall The Favorite Channel

    10. Recall the Favorite channel Press [FAV] key to recall a stored favorite channel. Favorite channel is programmed and stored in the Favorite Edit menu. ⓒ 2009 by Panarex Electronics...

  • Page 28: Iii. Optional Items

    III. Optional Items 1. UHF Remote Control Kit (Optional) Kit List UHF Receiver Module (U-50) UHF Remote Control (U-50) Battery (AAA Type)-2pcs Installation Get the AC power plug out of the receiver from the wall socket. Connect the UHF receiver module to the UHF on th rear of the receiver. Plug the AC power cord and turn on the receiver Use UHF remote controller.

  • Page 29: Iv. Specification

    IV. SPECIFICATION ATSC Tuner 1RF Input Connector F-type, IEC169-24 1RF output(loop through F-type, zero power out) Frequency Range NTSC all band, 54MHz ~ 866MHz ATSC A/53 compliant 8/16 VSB and MMDS 2/4/8/16 VSB ITU-T J.83 Annex B, C compliant 64/256 QAM Integrated de-interleaver RAM for all modes Relative low power consumption MPEG transport Stream A/V Decoding...
  • Page 30 Front Panel Display 4Digits LED Power, Channel Down/Up, Volume up/down, 8 keys Menu, Exit, OK USB2.0 1 Host Data port Connector 9 pin D-sub Type Protocol RS232 Asynchronous Data Rate Max. 19.2Kbps Rear Panel ATSC Tuner 1 input with loop through out S2 Tuner Option UHF RCU...

  • Page 31: V. Trouble Shooting

    V. TROUBLE SHOOTING There may be various reasons for the abnormal of the unit. Therefore, if the unit does not work properly, Check the unit according to the procedures shown in the table below. Problem Possible causes Remedy AC Power cord disconnected Connect power cord properly LED on front panel into the power socket...
  • Page 32 LIMITED WARRANTY PANAREX Inc. warrants to the original purchaser that this product shall be free from defects in workmanship and material for two years from the date of original purchase. During this warranty period PANAREX will provide free of charge both part and labor necessary to correct defects in workmanship or material.
