Summary of Contents for Soundcast SubCast

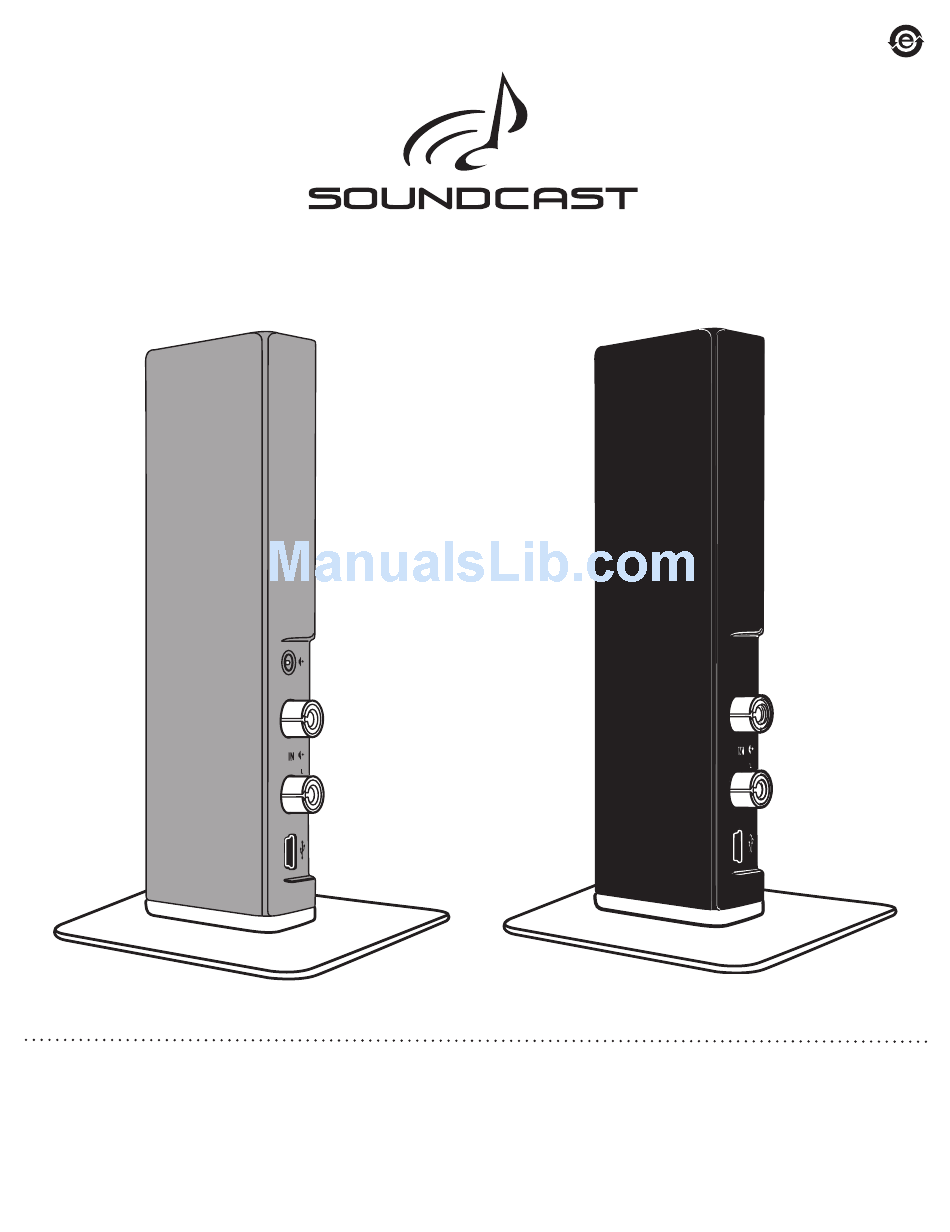

- Page 1 SubCast Transmitter/Receiver Subwoofer Kit Rev. A...
- Page 2 Keep these instructions for future reference. AC/DC Adapter Power Supply Use only the AC/DC adapter that was supplied by Soundcast Systems. Do not use a substitute AC/DC adapter. Using an incorrect AC/DC adapter may cause damage to the product and will void its warranty.
- Page 3 Disconnect from the mains wall socket by pulling on the mains power plug, not the cord. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE THE POWER SUPPLY TO RAIN OR MOISTURE. OPERATING INSTRUCTIONS SubCast SWK-510 US (120 volts) SubCast SWK-520 UK, EC, AUS (240 volts)
- Page 4 The following items are included in this package: 3.5 mm Mini to RCA cable RCA single/RCA single LFE Cable RCA to RCA Cable SubCast Transmitter SubCast Receiver RCA single/RCA Dual cable (2) USB Cables Owners Manual Velcro (2) Magnetic Bases...
-
Page 5: Installation
Installing the AC adapters Insert the (2) wall socket plug adapters into the slot on the (2) AC/DC power supplies that came with your SubCast kit. The plug adapters that are in your box should be the correct type for your country’s mains sockets. - Page 6 Then connect the receiver to your subwoofer by running the single RCA to RCA cable from the left (white) jack on the back of the SubCast Receiver to the LFE input on the powered subwoofer. If your subwoofer has only stereo input jacks, then you can use the included stereo RCA to RCA cable to connect both output jacks of the SubCast Receiver to your subwoofer.
-
Page 7: Additional Features
See explanation of this feature below. You can leave the SubCast system hooked up 24 hours per day if you wish to do so – it is designed for continuous operation. However, if... - Page 8 By linking two transmitters in this manner, and by using two SubCast Receivers for each one, you can create a four subwoofer system. Please remember that the same music source will be heard in all subwoofers and that you can only link a maximum of two transmitters in this fashion.
- Page 9 Soundcast unit there is a three position selector switch to allow the user to select different transmission channels. When you wish to use two Soundcast systems at the same time, leave one system on Channel 1 Channel selector 1, 2, or 3...
-
Page 10: Information To User
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause Soundcast Systems harmful interference to radio or San Diego, California television reception, which can US only 1-800-722-1293 be determined by turning the... - Page 11 Soundcast Systems’ sole obligation Authorization number (RMA) issued by under this express warranty shall be, Soundcast in advance of any shipment to at its option and expense, to repair the Soundcast Warranty Repair Service the defective product or part, deliver Center.
- Page 12 For Warranty Claim Service Please Contact: Soundcast Systems San Diego, California US only 1-800-722-1293 customersupport@soundcastsystems.com www.soundcastsystems.com PN 2-230-011-01...
