JL Audio 6W3v3-4 Owner's Manual page 2

U.S. PATENTS: #5,734,734 #6,118,884 #6,501,844 #6,219,431 #D480,709 Other U.S. & Foreign patents pending.
B
D

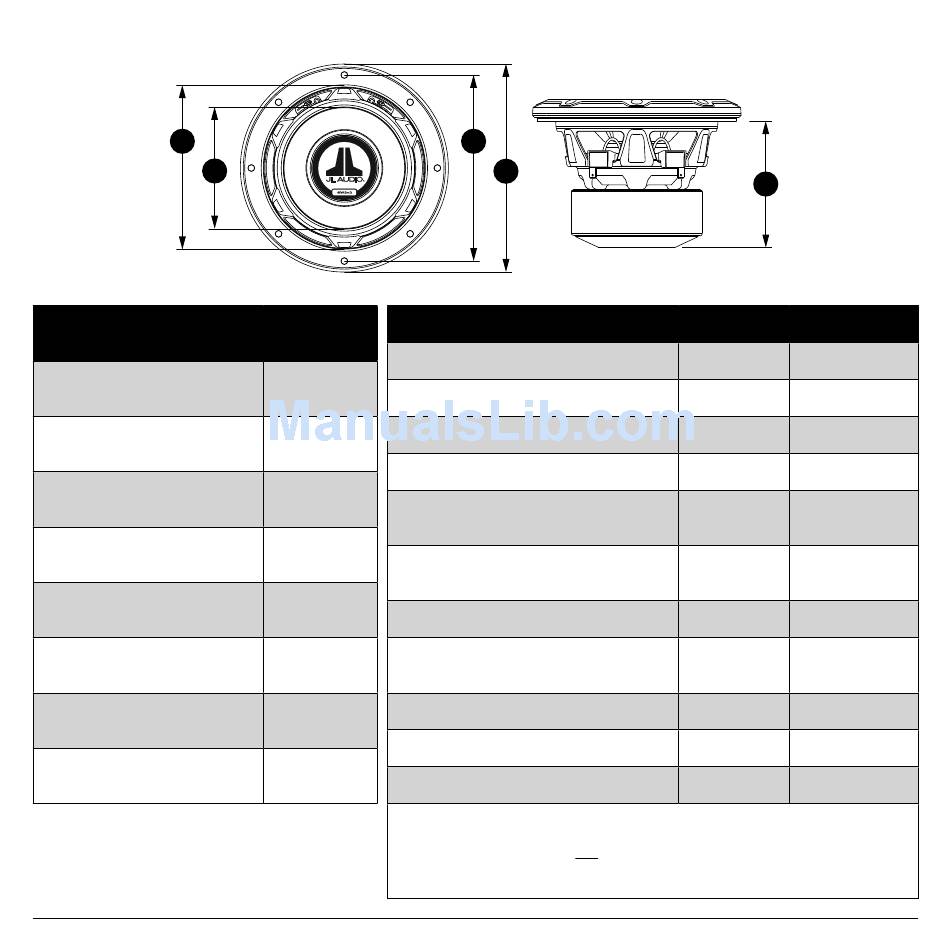

6W3v3 SUBWOOFER PHYSICAL
SPECIFICATIONS
Nominal Diameter:
Overall Diameter (A):
Mounting Hole Diameter (B):
Bolt Hole Circle (C):
Magnet Diameter (D):
Mounting Depth (E):
Net Weight:
Driver Displacement:
2
JL AUDIO 6W3v3-4 / 6W3v3-8
6.5 in.
165 mm
6.85 in.
174 mm
5.5 in.
140 mm
6.125 in.
156 mm
4.25 in.
108 mm
4.25 in.
108 mm
6.1 lbs
2.8 kgs
0.02 ft³
0.57 litres
** Efficiency (1W/1m) is not an accurate indicator of a subwoofer's
C
A
SUBWOOFER
Free Air Resonance (Fs): 41.80 Hz
Electrical "Q" (Qes): 0.533
Mechanical "Q" (Qms): 11.027
Total Speaker "Q" (Qts): 0.508
Equivalent Compliance (Vas):
One-way, Linear Excursion (Xmax)*:
Efficiency (1W/1m)**: 80.49 dB
Effective Piston Area (Sd):
DC Resistance (Re): 3.476 ohm
Nominal Impedance: 4 ohm
Power Handling (continuous): 150W
* Xmax specifications are derived via one-way voice coil overhang
method with no correction factors applied.
output capability and should not be used as a comparison to other
subwoofers to determine which one is "louder" !
E
6W3v3-4
44.05 Hz
0.666
10.291
0.625
0.181 ft³ 0.78 ft³
5.13 litres 5.04 litres
0.35 in. 0.35 in.
8.89 mm 8.89 mm
80.13 dB
17.36 in² 17.36 in²
0.0112 m² 0.0112 m²
7.917 ohm
8 ohm
150W
JL AUDIO 6W3v3-4/6W3v3-8
6W3v3-8
