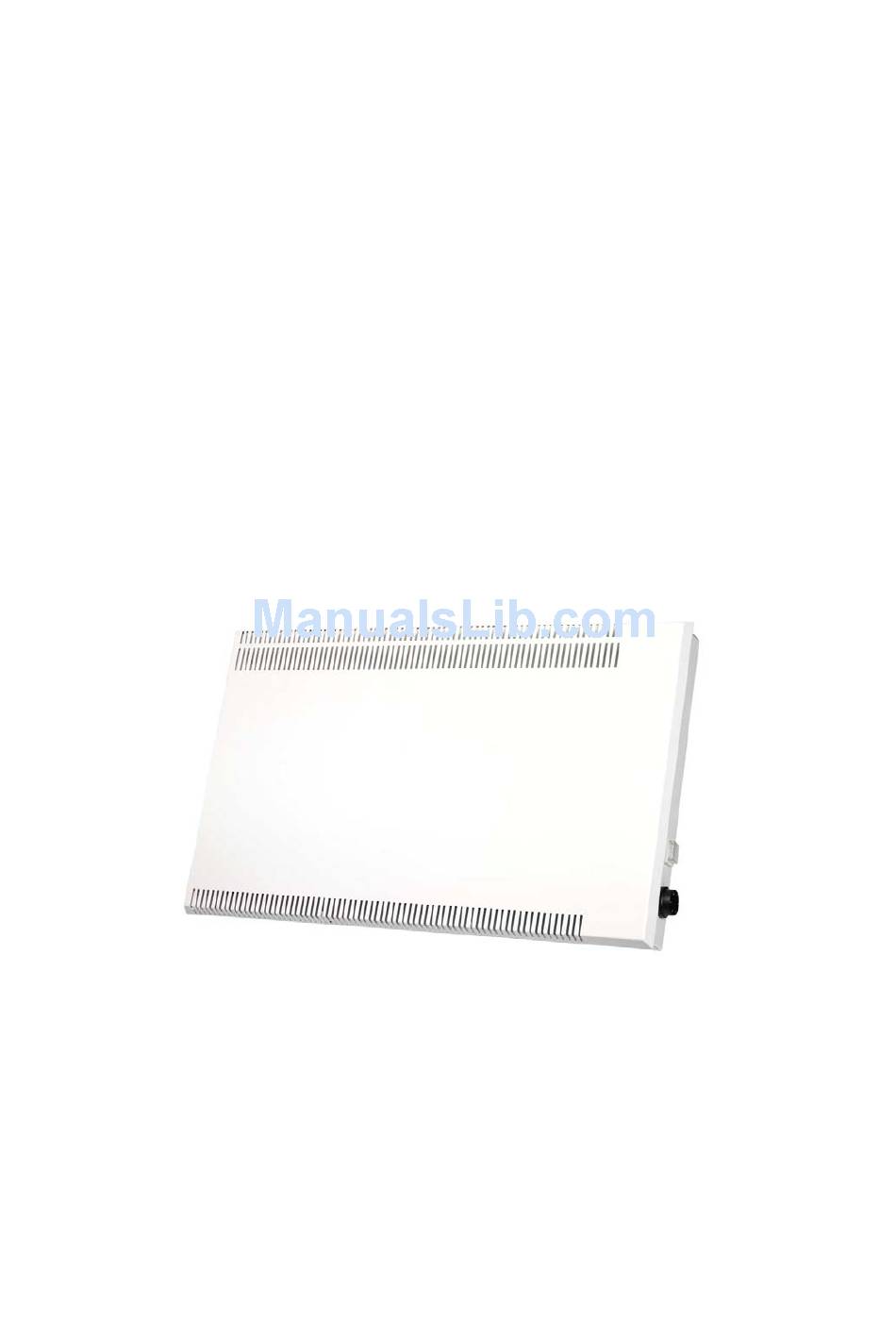

- Page 1 INSTRUCTIONS for installation and operation of electrical direct-heating convector PROTHERM PROTHERM, s.r.o. [Ltd] 909 01 Skalica, Pplk Pljušťa 45 , Slovak Republic phone: +421 346966101 fax: +421 346966111...
- Page 2 1 Function of an Electrical Convector A convector is a heating device the function of which is based on conversion of electrical energy into heat and on the upward flow of warm air. It uses traditional principles of electrical heating and the chimney effect in an advanced combination. Thus, an electrical conveyor forms something like a small chimney fitted with an electrical heating element in its bottom part.
- Page 3 Te convector is a modern version of the tried-and-tested hot-air heating. The convector is equipped with a thermostat for controlling the required room temperature between 5°C and 30°C. If more than one convectors are used connected to an independent power supply, the temperature can be regulated by a central room thermostat or a programmable regulator.
- Page 4 3 Use The electrical convector can be used: - as an additional heating device to a current heating system (it can be easily plugged into an electrical socket) - for comprehensive heating of flats, houses, offices, etc. at the attractive electricity rate BP.
- Page 5 Assembly – suspension on a wall is depicted in Fig. 3. Fig. 3: Wall mounting In order for the convector to function to your absolute satisfaction, the following conditions must be met: - it must be mounted (we recommend suspended on a wall) so that the bottom edge is at least 15 cm above the floor, - the convectors bottom and top openings must be free of obstacles to allow for unobstructed circulation of air,...
- Page 6 Caution: During the first start up of the convector a slight odour might be perceived, which is caused by the burn-off of residues inside the convector. After longer time of not using convector (summer, holiday ..) after restarting up it could appear slight dour caused by the burn-off dust on the heating elements.
- Page 7 Certificate and proof of purchase must be submitted when aking a warranty claim. 1 Safety This product is approved under ŠS SKTC 101 . he PROTHERM convector is a class 1 product, protection cover IP 31. Fig. 4: Wiring diagram...
