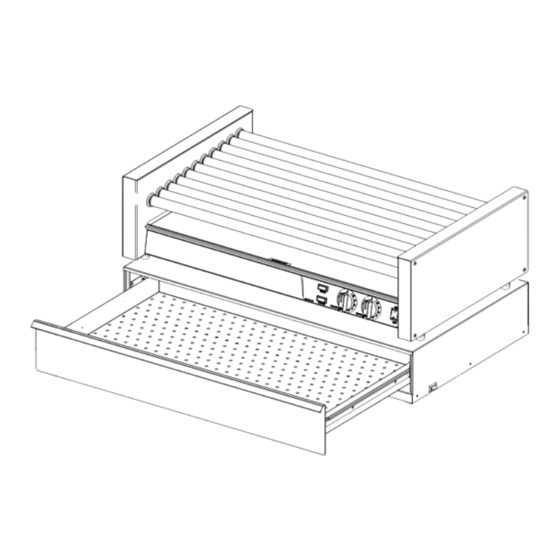

- Page 1 GRILL-MAX EXPRESS ¨ ROLLER GRILLS X30, X45, X50, X75 Infinite Controls BUN WARMERS XBW-30, XBW-50 Installation and Operation Instructions 2M-Z13702 Rev. A 12/22/2010 IL2072 is a registerd trademark of Star International Holdings Company Inc, All rights reserved.
- Page 2 SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE NUMBER GENERAL SAFTEY INFORMATION GENERAL INSTALLATION INFORMATION Connection Load & Sepecifications GENERAL OPERATING INSTRUCTIONS Cleaning ROLLERGRILL EXPLODED VIEW PARTS LIST 30 MODEL SERIES 45 MODEL SERIES 50 MODEL SERIES 75 MODEL SERIES WIRING DIAGRAM BUN WARMER EXPLODED VIEW PARTS LIST XBW-30 & XBW-50 MODEL WARRANTY GENERAL SAFETY INFORMATION This equipment is designed and sold for commercial use only by personnel trained and experienced in CAUTION its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. B efore using your new equipment, read and understand all the instructions & labels associated with the unit prior to putting it into operation. Make sure all people associated with its use understand the units operation & safety before they use the unit. All shipping containers should be checked for freight damage both visible and concealed. This unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier. Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a request for inspection of concealed damage must be made with carrier within 15 days. Be certain to retain all contents plus external and internal packaging materials for inspection. The carrier will make an inspection and will supply necessary claim forms. -
Page 4: General Installation Information
GENERAL INSTALLATION INFORMATION The grill should be connected to a wall type receptacle, a direct line or individual branch circuit. An individual branch circuit is preferred. If connected to an overloaded circuit the grill will not operate properly. The unit should be level when installed. Adjustable 1-inch legs are standard on all models. Bun Warmers must be level for self closing feature. This grill is equipped for the voltage shown on the nameplate. It will operate on alternating current only, however, the specified voltage must be applied. IL2071 Nameplate CONNECTION LOAD: Value Roller Grill Model No (W) Width (D) Depth (H) Height Voltage Wattage Amps Plug 20-5/8” 1150 23-3/4” 28-1/2” 1650 13.8 5-15P 10” 20-5/8” 1535 12.8 35-3/4”... -
Page 5: General Operating Instructions
GENERAL OPERATING PROCEDURES The main switch located on the control panel controls all the power to the unit. With the main switch on, the rollers will turn, but no heat will be supplied unless the heat controls are turned on. For flexibility the heating section of the grill is divided into two individually controlled heat sections. The right control regulates the heat to the rear section (grey roller seals) and the left control regulates the heat to the front section (black roller seals). The switch is lighted to indicate when the unit is turned on. A signal light is provided for each heat control and indicates when the heated section is on. COOKING The heat controls provide an infinite range of settings for a wide variety of food products and installation conditions. The size, content and shape of the product and the installation of any sanitary food shields or sneeze guards will determine the proper heat setting. The National Sanitation Foundation requires that perishable foods be kept at 140°F or above during serving periods. Do not keep the food product on a low setting for more than two hours. The product should be kept refrigerated until ready for use. Cooking time will vary depending on the starting temperature and the qualities of the product. For best results when cooking hot dogs use a hot dog made for grilling. USE ONLY PLASTIC OR COATED UTENSILS FOR HANDLING THE FOOD PRODUCT. METAL COULD SCRATCH THE ROLLER COATING AND AFFECT CAUTION THE CLEAN ABILITY OF THE ROLLERS. DO NOT USE STEEL WOOL OR ABRASIVE CLEANERS ON THE ROLLERS. -
Page 6: Rollergrill Exploded View
Nameplate GRILL-MAX EXPRESS ¨ VALUE ROLLER GRILL: MODEL X30, X45, X50, X75 SK2473 REV - 9/14/2010... -
Page 7: Parts List
PARTS LIST September 8, 2010, Rev. - VALUE ROLLER GRILL MODEL X30, X30S, X30SG, X30F, X30SF, X30SGF Fig No. Part Number Description Quantity Applications A5-Z2185 DRIP TRAY 30 A5-RG3001 ROLLER ASSY CHROME X30, X30F PS-RG3078 ROLLER ASSY POLY WELDED X30S, X30SF A5-RG4565 ROLLER ASY HIGRIP 30S/45S... -
Page 8: Model Series
BUSHING HEYCO SR 17-2 A5-Z13679 COVER,BODY PANEL, X45 2K-Y8571 BUSHING SNAP 2 1/8 2A-Z11501 FOOT 1” SOLID RUBBER 2J-Z2195 INFINITE CONTROL 120V 2M-Z13657 OVERLAY, MODEL X30, X45 2E-Z1858 SWITCH-LIGHTED 2R-Z1854 KNOB-CONTROL 2J-Z13654 PILOT LIGHT RECT-RED-120V A5-Z13687 ELEMENT RETAINER,LWR-16CT 2P-Z0584 TONGS-PLASTIC 9”... -
Page 9: Model Series
PARTS LIST September 8, 2010, Rev. - VALUE ROLLER GRILL MODEL X50, X50S, X50SG, X50F, X50SF, X50SGF Fig No. Part Number Description Quantity Applications A5-Z2305 DRIP TRAY 50 A5-RG7501 ROLLER ASSY CHROME X50, X50F A5-RG7502 ROLLER ASSY POLY X50S, X50SF A5-RG5057 ROLLER ASY HIGRIP 50SG/75SG X50SG, X50SGF 2N-Z2179 ELEMENT 120V 50/75... -
Page 10: Model Series
PARTS LIST September 8, 2010, Rev. - VALUE ROLLER GRILL MODEL X75, X75S, X75SG, X75F, X75SF, X75SGF Fig No. Part Number Description Quantity Applications A5-Z2306 DRIP TRAY 75 A5-RG7501 ROLLER ASSY CHROME X75, X75F A5-RG7502 ROLLER ASSY POLY X75S, X75SF A5-RG5057 ROLLER ASY HIGRIP 50SG/75SG X75SG, X75SGF 2N-Z2193 ELEMENT 230V 50/75... -
Page 12: Bun Warmer Exploded View
GRILL-MAX EXPRESS ¨ VALUE BUN WARMER: MODEL XBW30, XBW50 SK2474, REV -, 8/19/2010... -
Page 13: Xbw-30 & Xbw-50 Model
STRAIN RELIEF STR HEYCO 2C-Z12945 WIRE HARNESS SWITCH ORIENTATION (AS VIEWED FROM THE SIDE OF THE UNIT) FOIL ELEMENT BLACK WHITE (AS VIEWED WITH BOTTOM COVER REMOVED.) ALL XBW MODELS 120V & 230V UNITS GRILL-MAX EXPRESS ¨ WIRE DIAGRAM SK2475... -
Page 14: Warranty
Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same. - Page 16 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 781-2777 www.star-mfg.com...
