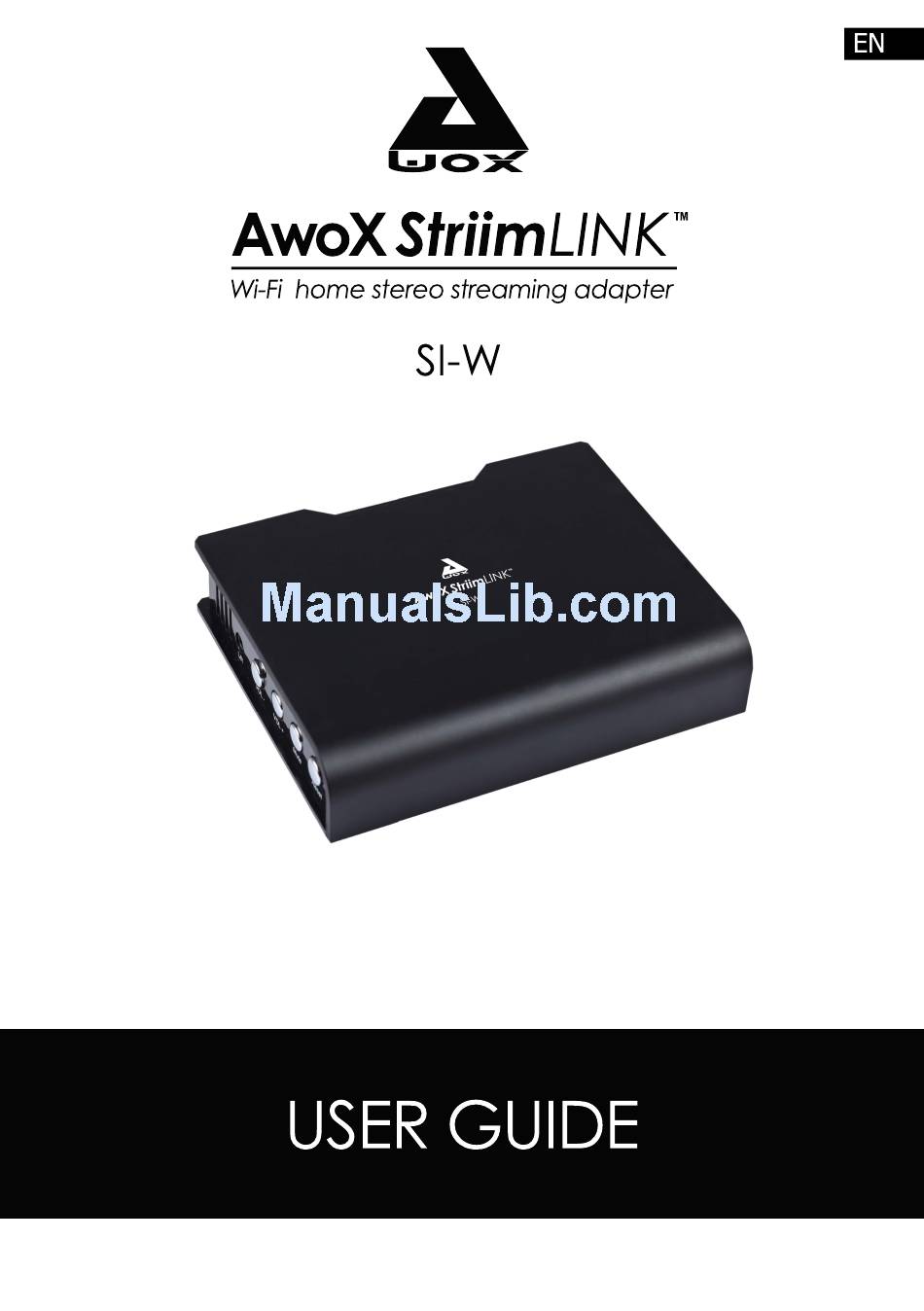

AwoX StriimLINK SI-W User Manual

Wi-fi home stereo streaming adapter

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Table of Contents

Need help?

Do you have a question about the SI-W and is the answer not in the manual?

Questions and answers

Summary of Contents for AwoX StriimLINK SI-W

Page 2: Table Of Contents
EN www.awoxstriim.com Contents Contents ................... 2 Getting started with AwoX StriimLINK ........ 3 Before you begin .............. 4 AwoX Striim CONTROL setup ........... 4 Connect AwoX StriimLINK to your stereo ........ 5 More information on your CD‐ROM ........ 5 StriimLINK overview .............. 6 Using AwoX Striim CONTROL ........... 8 Using AwoX StriimSERVER ............. 1 2 Overview of the Play tab ...
Page 3: Getting Started With Awox Striimlink
EN www.awoxstriim.com Getting started with AwoX StriimLINK Welcome Congratulations and thank you for choosing the AwoX StriimLINK Wi‐Fi home stereo streaming adapter. With this compact device, you get:  A fun and easy way to play music from many sources, including your Apple iOS™ or Google Android™ smartphone or tablet, PC or Mac , the Internet, and USB drives  Access to hundreds of Internet radio stations  AwoX media player software for your iPhone®, iPad®, iPod (3) touch®, or Android smartphone. What’s in the box  StriimLINK Wi‐Fi/Ethernet stereo streaming adapter  AC adapter (5V, 2A)  3.5mm jack  dual RCA cable, Dual RCA  3.5 mm jack adapter What else you need  Internet access with a Wi‐Fi or Ethernet connection  Home stereo equipment with standard RCA connectors, a 3.5 mm input jack, or optical digital input (SPDIF) ...
Page 4: Before You Begin
EN www.awoxstriim.com Before you begin 1. Start by downloading the free AwoX media app for your device: Apple iPhone, Download and install AwoX iPad, iPod touch Striim CONTROL™ software from the App Store. Google Android Download and install AwoX devices Striim CONTROL™ software from the Google Play Store. 2. On your Apple or Android device, make sure Wi‐Fi is turned on and use the device’s settings to connect to your home network. AwoX Striim CONTROL setup 1. Tap on the launcher icon to run AwoX Striim CONTROL. 2. The setup wizard starts the first time you launch the application. 3. Choose to install AwoX StriimLINK. 4. The wizard guides you through the all the steps for connecting your AwoX StriimLINK to your local network so you can begin ...
Page 5: Connect Awox Striimlink To Your Stereo
EN www.awoxstriim.com Connect AwoX StriimLINK to your stereo Depending on your stereo equipment, you may use the 3.5 mm jack‐to‐dual RCA cable (red/white stereo plugs), or an optical (SPDIF) cable. 1. Insert the 3.5 mm jack into the L/R plug on your StriimLINK module. 2. Plug the red/white RCA plugs into your stereo equipment. Use the dual RCA‐to‐jack adaptor if needed. 3. If you are using an optical cable, plug one end of the cable into the optical port on the StriimLINK module and the other end into your stereo. More information on your CD-ROM Complete instructions for using the free AwoX software are provided on your AwoX StriimLINK CD‐ROM. AwoX StriimLINK Quick‐Start Guide| 5 ...
Page 6: Striimlink Overview
EN www.awoxstriim.com StriimLINK overview StriimLINK buttons and connectors Back view: Power | USB port | Optical output | Ethernet port (RJ‐45) Left side: WPS | Power light | LAN light | Wi‐Fi light Right side: Stereo out | Volume | Mute | Reset 6 | AwoX StriimLINK User Guide ...
Page 7 EN www.awoxstriim.com Sample usage diagram Connect StriimLINK to your home stereo and stream music from:  Your iOS or Android device  Internet radio  Your home computer  USB drives Home media library Smartphone or AwoX StriimLINK tablet running connected to AwoX Striim your stereo CONTROL AwoX StriimLINK Quick‐Start Guide| 7 ...
Page 8: Using Awox Striim Control
EN www.awoxstriim.com Using AwoX Striim CONTROL Note: the instructions provided here are identical for devices running Apple iOS and Google Android operating systems. Application overview AwoX Striim CONTROL finds and plays music from your various media sources. Here is an overview of the application layout: Find Music Play Settings Source Bar (choose source by  swiping left right on ) these icons Options available on selected source Back/Exit Home Help 8 | AwoX StriimLINK User Guide ...
Page 9 EN www.awoxstriim.com Choosing your music Tap on the Find Music tab to see available music sources. The source bar contains Playlists, Local, AwoX StriimLINK, and any other media sources you may have available on your network. Playing media using your StriimLINK 1. Tap to select StriimLINK in the source bar. 2. Select the desired option: Internet Radio or USB Storage. Tap on Find Music Tap on StriimLINK 3. Tap to play Internet Radio: ‐ Navigate through countries, favorites, and other options to choose the music you want to hear. AwoX StriimLINK Quick‐Start Guide| 9 ...
Page 10 EN www.awoxstriim.com ‐ When you tap directly on a station, the application switches to the Play tab and your selection begins to play. ‐ Tap on for other options (see Playlists and queues). 4. To play music from USB Storage: ‐ Plug a USB drive into the USB port on your StriimLINK. ‐ Tap USB Storage and navigate through the folders on the drive. ‐ When you tap directly on a selection, the application switches to the Now Playing tab and your selection begins to play. ‐ Tap on for other options (see Playlists and queues). Playing local media from your iOS or Android device 1. Tap to select Local Music in the source bar 2. Tap the available options to choose your music. Tap on Local Music Tap here to play Tap for options 10 | AwoX StriimLINK User Guide ...
Page 11 EN www.awoxstriim.com 3. When you tap directly on an item in the list, the window switches to the Play tab and your selection begins to play, replacing the current song queue. 4. Tap on for other options: Add to queue: Adds the song to be played after other songs in the queue. Info: Song details. Create new… Creates a new playlist. Tap here for other options Playing songs from your PC/Mac or other DLNA audio server 1. Swipe the Source Bar to choose the desired server or device. 2. Navigate in the list of songs to choose the music you want to hear. 3. When you tap directly on an item, the application switches to the Now Playing tab and your selection begins to play. 4. Tap on for other options (see Playlists and queues). ...
Page 12: Using Awox Striimserver
EN www.awoxstriim.com Using AwoX StriimSERVER With versions for Mac and Windows, AwoX Media Server makes your home audio library available as a source to Striim devices in your network. StriimSERVER works exclusively with AwoX Striim products. Follow these steps to get AwoX StriimSERVER up and running on your computer: 1. You will find the StriimSERVER setup application on the CD‐ROM provided with your product. You may also choose to download it from here: http://www.awox.com/mediaservers. 2. Navigate to CD‐ROM or download folder on your computer and double‐click on the StriimSERVER installer for Mac or Windows, depending on your operating system, and follow the instructions on your screen. 3. Launch StriimSERVER by clicking on the StriimSERVER icon installed on your computer’s desktop ( ). Allow access to your private networks if prompted by the application. 4. The application opens to the Settings window: Assign a name and choose the media types you want to share. 12 | AwoX StriimLINK User Guide ...
Page 13 EN www.awoxstriim.com 5. Make sure the server is on (when the Stop the server button is displayed, which is the default setting). 6. Click on Settings: ‐ Use the Server Name field to change the name of your server as it will be seen in your network. ‐ Select the Media Types that you would like to be able to share (make sure to select Music for use with StriimLINK). 7. Click on Apply when to save your changes. 8. Click on Library  Add to add media folders to your library. 9. Browse your hard drive to choose a folder, then click on Select Folder to include the folder in the library published by StriimSERVER. Click to add or remove media folders. 10. If you make changes to a media library on your computer, click on Library  Refresh. If you encounter any problems with the file list display, click on Rebuild. AwoX StriimLINK Quick‐Start Guide| 13 ...
Page 14 EN www.awoxstriim.com 11. Your StriimSERVER media library is now appears as a source in the Striim CONTROL source bar. Browse media published by StriimSERVER 12. You may turn the server off by clicking on Settings  Stop the server. To restart the server, simply click this same button. 14 | AwoX StriimLINK User Guide ...
Page 15: Overview Of The Play Tab
EN www.awoxstriim.com Overview of the Play tab The Play tab show the music that you have selected to play, and provides standard player controls. Play tab (tap to change view) Back Play/Pause Next Current song or radio station Repeat Shuffle Volume Control music playback using the icons at the bottom of the screen. Note When StriimLINK is connected via SPDIF to your stereo, the volume cannot be controlled from the Awox Striim CONTROL application or from the volume buttons on the StriimLINK unit, but only from the stereo itself. AwoX StriimLINK Quick‐Start Guide| 15 ...
Page 16: Playlists And Queues
EN www.awoxstriim.com Playlists and queues Creating a playlist You may create playlists of songs located on any available audio sources. A single playlist may contain songs from several different sources. Start by creating a new (empty) playlist 1. Tap on the Find Music tab 2. Tap on My playlists 3. Tap to Create New Playlist and enter a name for the playlist. Add songs to your playlist 1. Swipe the Source Bar to select the source. Tap to 2. Locate the music you want and create new playlist then tap on , select Add to [your playlist name]. 3. Add as many songs as you Add music want in this manner. from your sources Managing songs in playlists 1.
Page 17 EN www.awoxstriim.com list, without deleting the file from the source. Managing playlists On the My Playlists screen, tap on for other playlist options: Play Begins to play the playlist. Add to queue Adds the playlist to be played after other songs in the queue. Rename Allows you to rename the playlist (not available for songs). Delete Allows you to delete the playlist or a song. Adding tracks to queues Instead of creating a playlist, you may simply select songs from one or more sources and queue them up to be played sequentially one after the other. To do this: 1. Tap on the Find Music tab ( ) and select a song that you would like to play, such as from a USB drive on StriimLINK, or songs on your home audio server. 2. Click on and select Add to queue. The first song in the queue begins to play right away. 3. Add as many other songs as you want to the queue in the same manner. AwoX StriimLINK Quick‐Start Guide| 17 ...
Page 18: Other Configuration Options
EN www.awoxstriim.com Other configuration options Several additional configuration options are provided on the Settings tab. Settings tab  1. Tap on the Settings tab Phone. Here you may set the following options: Incoming call Determines what the app should do if you receive a phone call (No action, Mute phone volume, or Pause playback). View mode Graphical view (displays album covers & icons) List view (player lists songs alphabetically) 18 | AwoX StriimLINK User Guide ...
Page 19: Updating Awox Striim Control
EN www.awoxstriim.com Rescan devices in the network Updates list of available StriimLINK modules, DLNA servers and media sources. Configure a new audio device Runs the device installation Wizard so you can configure another AwoX Striim product. Reset application settings Removes current settings and restores factory configuration. 2. Also on the settings tab, you may tap on Audio devices to: ‐ Set the device as the default audio device ‐ See technical information about your StriimLINK module. ‐ Change the network name of your StriimLINK module. Updating AwoX Striim CONTROL To check on‐line for updates to the AwoX Striim CONTROL application: 1. In the Settings tab, tap on the Information ( ). 2. If a more recent version of the software is available, tap on Update now to update your device. AwoX StriimLINK Quick‐Start Guide| 19 ...
Page 20: Technical Specifications
EN www.awoxstriim.com Technical specifications Hardware Supported media MP3 (up to 48 kHz, CBR & VBR) AAC (up to 48 kHz, 8‐320 kbps) WMA (up to 48 kHz, CBR & VBR) including lossless LPCM, WAV (up to 48 kHz, up to 1.44 Mb/s Network 10/100 Mbps Ethernet, RJ‐45 Wi‐Fi b/g/n (WEP/WPA, WPS) Audio output 3.5 mm stereo, optical SPDIF digital line‐out USB interface USB 2.0 port Size 125 x 95 x 25 mm Weight (net) 150 g Environmental Operating conditions 0° to +80°c 10% to 85% RH (no condensation) Storage conditions ‐10° to +80°c 5% to 90% RH (no condensation) Power supply AC adapter, 5V DC@2A Consumption 3.5W max 20 | AwoX StriimLINK User Guide ...
Page 21: Troubleshooting
EN www.awoxstriim.com Troubleshooting AwoX StriimLINK is not listed as an available Wi‐Fi device.  Make sure Ethernet cable is not plugged in.  Unplug the AC power plug from the unit and plug it back in to reactivate Wi‐Fi.  Press the reset button to erase any previous configuration settings. I can connect to StriimLINK but Internet Radio doesn’t list any available stations.  Check to make sure that your home Internet connection is working properly.  Try playing a song from a USB drive. If that works, the problem is most likely due to your home Internet connection. AwoX StriimLINK Quick‐Start Guide| 21 ...
