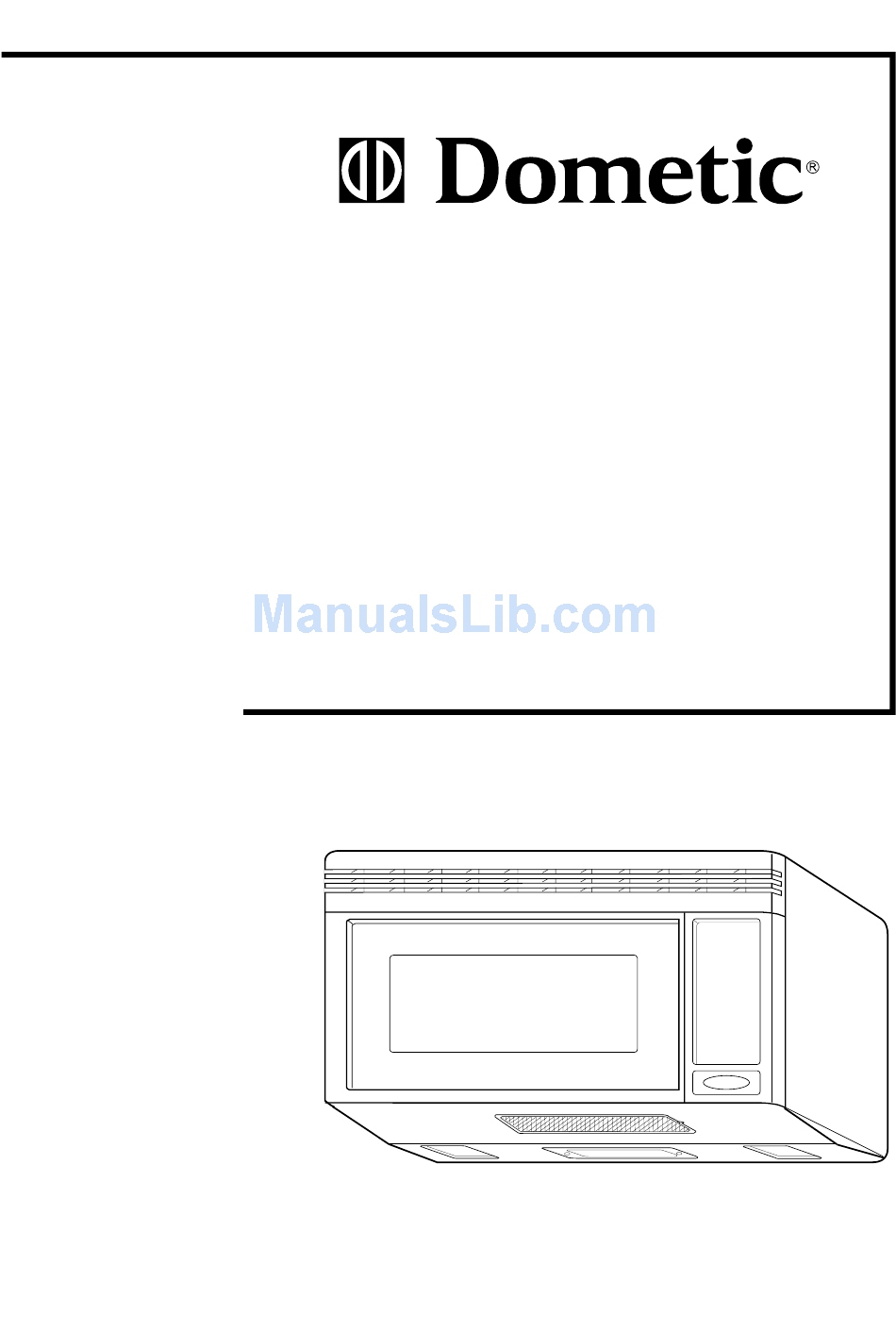

Page 1: Microwave Oven
OVER THE RANGE MICROWAVE OVEN INSTALLATION INSTRUCTIONS Please read and save these installation instructions. MODEL NO.: DOTR12CWIV/DOTR12CBIV P/N: 3828W5U0202... -
Page 2: Your Safety First
YOUR SAFETY FIRST Read this entire manual before you begin. BEFORE YOU START • Proper installation is the installer's responsibility! – Write the model & serial numbers on the owner’s manual. The model number label is located on the oven front. - Page 3 YOUR SAFETY FIRST • THIS APPLIANCE MUST BE GROUNDED! – If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug.
-
Page 4: Mounting Space
MOUNTING SPACE • MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT. – Mount the oven against a flat, vertical wall, so it is supported by the wall. The wall should be constructed to support 150 lbs. – ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, frame member. –... -
Page 5: Installation Hardware
INSTALLATION HARDWARE THE FOLLOWING PARTS ARE NOT SUPPLIED WITH THE OVEN EXCEPT DUCT CONNECTOR. NOTE: Depending on your ventilation requirements, you may not use all of these parts. One power cord clamp and Duct connector One dark-colored mounting screw (for roof-venting or wall-venting installation) (to hold the power cord) Not Actual Size Actual Size... - Page 6 YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE INSTALLATION: Carton or other heavy material for covering the counter top. Clear tape Stud finder or thin nail. (for taping the templates to the wall) Keyhole saw (for the power cord hole) Saber saw (for cutting vent holes for roof or wall venting) Electric drill...
-
Page 7: Step1: Prepare The Electrical Connections
STEP1: PREPARE THE ELECTRICAL CONNECTIONS W A R N I N G AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED! 1. Locate the grounded electric outlet for this oven in the cabinet above the oven, as shown in Figure 5. Upper Cabinet NOTE: The outlet should be on a circuit dedicated to the... -
Page 8: Step 2: Prepare The Venting System
STEP 2: PREPARE THE VENTING SYSTEM NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork fittings and length are shown in Figure 10, page 9. W A R N I N G -F I R E H A Z A R D THIS OVEN MUST BE PROPERLY VENTED! You may vent your oven in one of three ways. -
Page 9: Standard Fittings
STEP 2: PREPARE THE VENTING SYSYTEM STANDARD FITTINGS NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension duct installed between the damper assembly and the adapter to prevent the exhaust damper’s sticking. DUCT LENGTH The total length of the duct system, including straight duct, elbows, transitions, and wall or roof caps must not exceed the equivalent of 140 feet. - Page 10 STEP 3: PREPARE THE VENT MOTOR Your microwave oven is shipped with the vent motor assembled for wall venting. If you want roof-venting or room-vented (recirculating) installation, you must change the fan, as detailed below. W A R N I N G ELECTRICAL SHOCK HAZARD! UNPLUG UNIT BEFORE WORKING ON IT.
-
Page 11: Wall-Vented Installation
WALL-VENTED INSTALLATION: 1. Remove one motor mounting screw and two mount-all mounting screws. Take off the mount-all Knockouts Use side cutters or tin snips. from the oven. See Figure 15. 2. Carefully lift the vent motor of the microwave oven. 3. -
Page 12: Step 4: Prepare The Wall And Upper Cabinet For Installation
STEP 4: PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION BEFORE YOU START A thick, protective covering 1. Remove any shipping materials and parts from inside the microwave oven. 2. Cover the counter top or cooktop with a thick, protective covering to protect it from damage and dirt. -
Page 13: Drill The Holes In The Wall And Upper Cabinet
STEP 4: PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION DRILL THE HOLES IN THE WALL AND UPPER CABINET. W A R N I N G BE VERY CAREFUL WHEN DRILLING HOLES INTO THE WALL. Electrical wires could be concealed behind the wall covering and if the drill hits them you could get an electric shock. -
Page 14: Step 5: Install The Mounting Plate
STEP 5: INSTALL THE MOUNTING PLATE 1. Remove the template from upper cabinet. NOTE: If you are venting the oven through the wall, be sure you align the duct connector (included) on the rear of the mounting Figure 21 1 /4 plate with the 3 "x10"... -
Page 15: Step 6: Attach The Oven To The Wall
