DTS-2 Radio Control System
3-channel, 2.4GHz, FHHS
Digital Proportional System
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTS-2 Radio Control System and is the answer not in the manual?

Questions and answers

Summary of Contents for Gragon RC DTS-2 Radio Control System

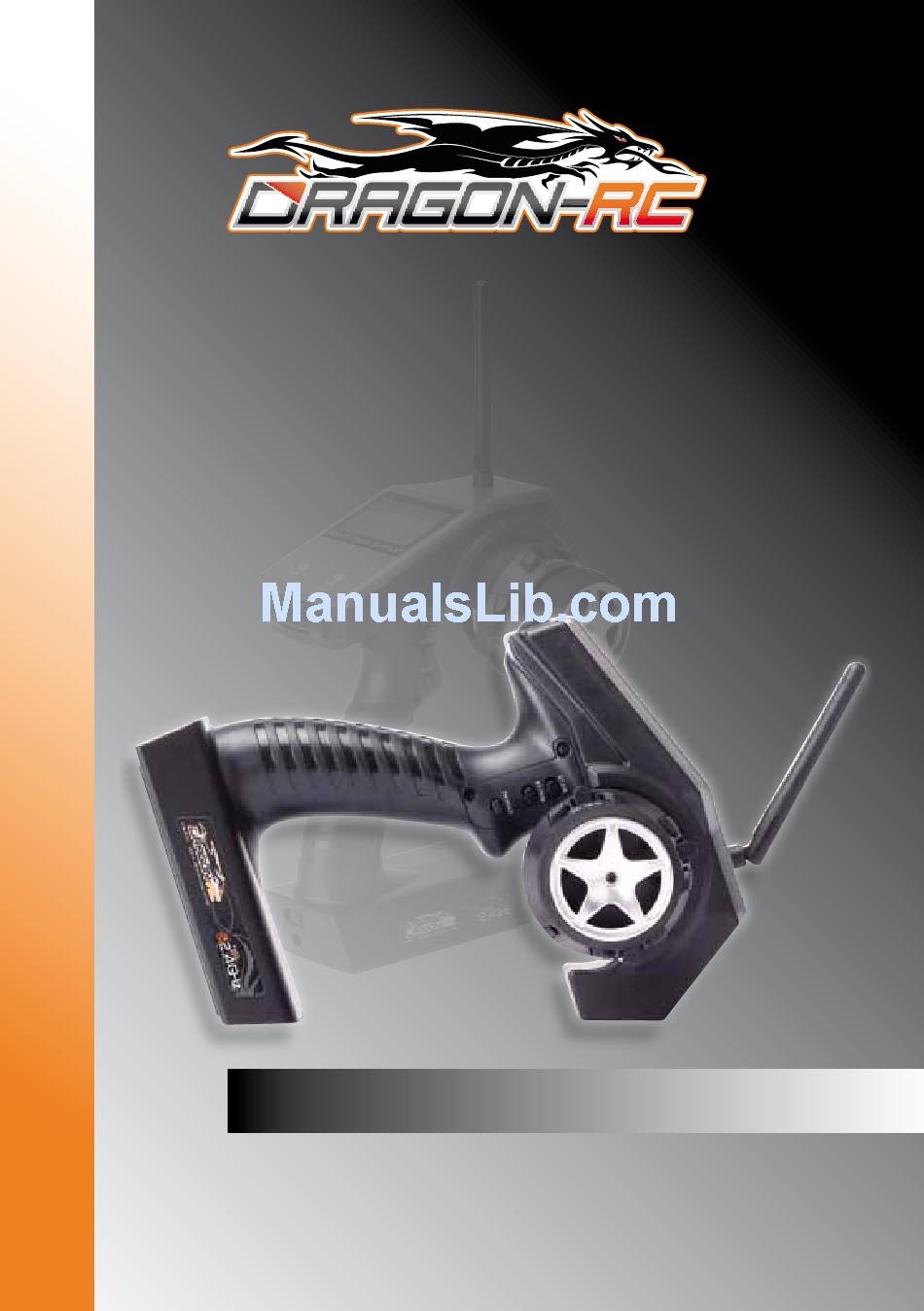

  • Page 1 DTS-2 Radio Control System 3-channel, 2.4GHz, FHHS Digital Proportional System Instruction Manual...
  • Page 2: Table Of Contents

    Table of Contents Transmitter introduction Transmitter Binding, Inserting batteries, connecting sytem Specifications Menu introduction Main Function S-Trim ST CURV TH CURV 2.10 2.11 MODEL 2.12 Speed 2.13 2.14 BK-Mix 2.15 2.16 TH Hold 2.17 2.18 Neutral 2.19 Sound 2.20 RESET 2.21 M-RES 2.22...
  • Page 3 Dragon-Rc radio DTS-2 3-Ch 2.4G Radio Control System Introduction Thank you for purchasing the Dragon-RC DTS-2 3-Ch 2.4GHz Radio Control System Before using, read this manual carefully. Updated info and manuals can be found on: www.dragon-rc.com...
  • Page 4 ANTENNA ST.TRIM STEERING TENSION ADJUSTMENT BACK LOCK ROLLING SELECTOR ST.D/R STEERING WHEEL ST.TRIM TH.TRIM TH.HOLD THROTTLE TRIGGER ON/OFF SWITCH CHARGE BATTERY BOX JACK...
  • Page 5: Transmitter

    Warning: 1. This product is equipped for radio controlled models only. 2. We will not be responsible for the (ab)use, damages caused by unauthorized modification, adjustment or replacement of parts of this product; 3. The manual may be altered without prior notice. Please contact us if you have any corrections or clarifications that should be made in the manual.
  • Page 6: Specifications

    2.1 Specifications Function 5.0V Function 5.0V 1: EPA 11: BR-MIX 2: D/R 12: MIX 3: S-TRIM 13: TH HOLD 4: REV 14: F/S 5: ST CURV 15: NEUTRAL Function 5.0V Function 5.0V 6: TH CURV 16: SOUND 7: ABS 17: REST 8: MODEL 18: M-RESET 9: SPEED...
  • Page 7: Menu Introduction

    2.2 Menu INTRODUCTION D/R (page 9) EPA (page 8) EPA 10.2V ST D/R 10.2V ATS 10.2V POS 0: F: 00% 120% 100% POS 1: 100% B: 00% 120% 100% S-TRIM (page 9) REV (page 10) S-TRIM 10.2V REVERSE 10.2V MIX 10.2V TH: 0 TH AUX ST CURV (page 10)
  • Page 8 SPEED (page 15) ATS (page 16) SPEED 10.2V SPEED 10.2V ATS 10.2V ATS 10.2V TRI: TRI: POS: POS: SPD.FL: 0% SPD.FL: 0% DLY: DLY: MOD: MOD: SPD.BK: 0% BK-MIX (page 17) MIX (page 17) BK-MIX 10.2V MIX 10.2V MIX 10.2V RATE TH: L50 AUX: L60...
  • Page 9: Main Function

    2.3 Main Menu FUNCTION VOLTAGE 5.0V SBT: SUB TRIM LOCK LOCK M 00: MOD 00 ALL 16 MODEL NAME STEERING D/R: T-1:00:00 TIMER DUAL RATE HLD: STEERING TRIM THROTTLE HOLD MOD: THROTTLE TRIM MODULATION 2.4 EPA Function 5.0V EPA 5.0V EPA 5.0V 1: EPA 2: D/R...
  • Page 10: S-Trim

    2.5 D/R ST: D/R Function 5.0V ST D/R 5.0V 1: EPA POS 0: 100% 2: D/R 3: S-TRIM POS 1: 70% 4: REV 5: ST CURV - D/R is used to change the action range of steering servo when turning the steering wheel. Increasing D/R will make the steering wheel action more sensitive.
  • Page 11: Rev

    2.7 REV This function reverses the direction of operation of the servos related to transmitter steering, throttle, and chan- REVERSE 5.0V nel 3 operation. 1. Press ’Roller’ to see FUNCTION MENU. 2. Use the roller to choose REVERSE, and press ’Roller’ TH AUX to enter REVERSE adjusting interface.
  • Page 12: Th Curv

    2.9 TH-CURV TH CURV THROTTLE CURVES This function makes the throttle high side and brake side direction servo operation quic- ker or milder. It has no effect on the servo maximum operation amount. For the high side, selection from among three kinds of curves (EXP/VTR/CUR) is also possible. Note: When the course conditions are good and there is no sense of torque at the power unit, set each curve to the +side(quickside).
  • Page 13 TH-CURV 10.2V TH-CURV 10.2V TH-CURV 10.2V M: CUR M: CUR M: CUR R: 25 R: 88 R: 88 BR: 0 BR: 0 BR: 0 Adjustment method for VTR curve. - Select VTR at setup item ‘M’. - Select setup item ‘R’ and make the following adjustments: 1.
  • Page 14: Abs

    2.10 ABS 10.2V PT: 10% WD: 50 CY: 15% DL: 0 SM: 0 DT: 1 MODE: INH Without ABS With ABS 2.11 ABS - Anti-Lock Brake System When the brakes are applied while cornering with a 4-Wheel Drive or other type of vehicle, under-steer may occur.
  • Page 15: Model

    2.11 MODEL - Press ‘Roller’ in the power on interface, and enter function menu interface. Press the roller to choose MDL, and press ’Roller’ to enter MODEL adjusting interface. MODEL 10.2V MODEL 10.2V MODEL 10.2V MDL.N Mod 00 MDL.N Mod 00 MDL.N Mod 01 Press ‘Roller’...
  • Page 16: Speed

    2.12 SPEED FUNCTION 10.2V SPEED 10.2V SPEED 10.2V 9: Speed 10. ATS 11. BR-MIX SPD.FL: 0% SPD.FL: 0% 12. MIX SPD.BK: 0% This function include tow items: STEERING SPEED and THROTTLE SPEED. 1. Press ‘Roller’ to see FUNCTION MENU 2. Use the roller to select the SPEED function and press the roller to enter. 3.
  • Page 17: Ats

    2.12 THROTTLE SPEED - Sudden throttle trigger operation on a slippery road only causes the wheels to spin and the vehicle cannot accelerate smoothly. Setting the throttle speed function reduces wasteful battery consumption while at the same time permitting smooth, enjoyable operation.
  • Page 18: Bk-Mix

    - When the throttle trigger is moved to the preset trigger position (TRI), the throttle servo moves to the preset position (POS). - When the throttle trigger is operated slowly so that the wheels will not spin, the car automatically accelerates to the set speed. - This function is effective only for the first throttle trigger operation at starting.
  • Page 19: Mix

    2.15 MIX FUNCTION 10.2V MIX 10.2V MIX 10.2V 12: Speed 13. TH HOLD 14. F/S 15. NEUTRAL This function allows customer to apply mixing between the steering, throttle, and chan- nel 3 channels.There are main channel and sub-channel in the MIX selection. The servo travel value of the sub channel is changed along with the change of the main channel according to the setting rate.
  • Page 20: Neutral

    2.17 F/S FUNCTION 10.2V F/S 10.2V F/S 10.2V 12: Speed 13. TH HOLD 14. F/S 15. NEUTRAL This function does not work in PPM mode. If the RF signal loss, it should occur the receiver adjust the Steering or Throttle or both to a preset value. The servo value of Steering channel and Throttle channel in the fail status can be set through fail safe Function.
  • Page 21: Sound

    2.19 SOUND FUNCTION 10.2V SOUND 10.2V SOUND 10.2V 16: SOUND SOUND: ACT SOUND: INH 17: RESET 18: M-RES 19: TIMER This function can open or close the buzzer sounding. 1. Press ‘Roller’ to see FUNCTION MENU. 2. Use the roller to select the SOUND function and press the roller to enter. 3.
  • Page 22: Timer

    2.22 MODEL RESET TIMER 10.2V FUNCTION 10.2V TIMER 10.2V 16: SOUND MODE: DN-T MODE: 17: RESET T: 3 m 2 s T: 0 m 0 s 18: M-RES 19: TIMER Use the timer by selecting one of the two timers UP TIMER and DOWN TIMER, and if the MODE is INH, It will close the TIMER Function.
  • Page 23: Trim Adj

    3.1 TRIM ADJ Please start the motor or the engine while making the adjustment of these settings. 1. Connect the receiver, servos, and other components and then turn on the power switches to transmitter and receiver. 2. Be sure the Steering trim and Throttle trim on the transmitter are at their neutral position.
  • Page 24 www.dragon-rc.com made in China #82355...
