Summary of Contents for Beam RST825 SatRADIO

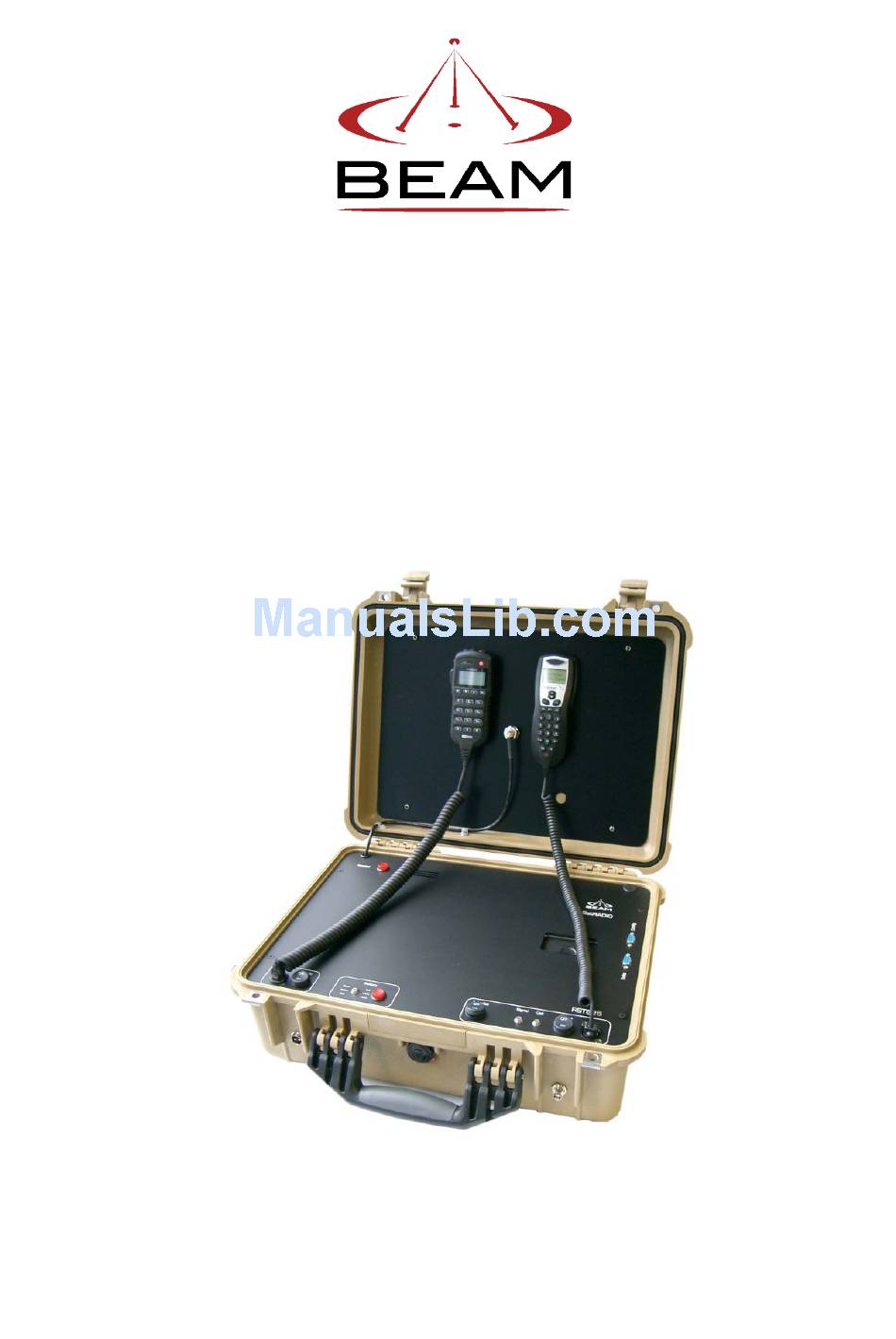

- Page 1 Portable Satellite and Radio Communications System RST825 SatRADIO Beam Communications Pty. Ltd.
- Page 2 8 Anzed Court, Mulgrave, Victoria, 3170, AUSTRALIA Information furnished by Beam Communications Pty Ltd (Beam) is believed to be accurate and reliable. However, no responsibility is assumed by Beam for its use, or for any infringement of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Beam.
-
Page 3: Package Contents
Package Contents The RST825 package contents 1 x Rugged Case enclosure 1 x RST820 unit – including Iridium transceiver (internal) 1 x UHF or VHF Radio (internal) 1 x RST825 power management and interfacing module (internal) ... -
Page 4: User Information
User information Please record your serial number here for future reference: Model: BEAM RST825 Serial no.: This number can be copied from the white shipping label on the RST825 box Eg. 100A2800 The following PIN codes may be required to use your RST825, please complete these details for future reference. -
Page 5: Table Of Contents
USER INFORMATION ..........................4 SAFETY INFORMATION ........................6 ABOUT BEAM COMMUNICATIONS ..................... 8 RST825 S RADIO ......................9 BOUT YOUR USING RST825 SATRADIO ......................... 10 GETTING STARTED ..........................11 RST825 CONNECTOR OVERVIEW ..................... 12 RST825 OPERATION ........................... 13 ..........................13 YSTEM OWER UP ...................... -
Page 6: Safety Information
Safety Information IMPORTANT! Please read the following information carefully before installing and using this BEAM equipment. Failing to follow instructions may compromise the safety of the product and may result in personal injury and/or equipment damage. Please consult your supplier if you have any further questions. - Page 7 Exposure to Radio Frequency Signals Your wireless mobile telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. International agencies have set standards and recommendations for the protection of public exposure to RF electromagnetic energy.
-
Page 8: About Beam Communications
About BEAM Communications BEAM Communications, is an authorised manufacturer of Iridium Satellite products. BEAM develops subscriber products that utilise the Iridium satellite network of Low Earth Orbit satellites, known as LEOs. The Iridium network is extensively used around the world by commercial enterprises and defence agencies. -
Page 9: About Your Rst825 Satradio
The RST825 extends your existing Radio network using an Iridium satellite link with an easy- to-deploy portable solution in a self-contained rugged carry case. The RST825 SatRADIO works by becoming another participant in your local radio net, with the other end of the satellite connection anywhere in the world: your central base, or another remote radio net. -
Page 10: Using Rst825 Satradio
Using RST825 SatRADIO The RST825 is a fully self contained standalone portable Radio over Iridium Satellite system in a rugged carry case. It has its own battery supply for over 50 hours operation, with external power input for longer term use. The carry case is a quick deployment solution with all that is required contained within the case. -
Page 11: Getting Started
Getting Started The RST825 requires that a valid Iridium or Telstra Mobile Satellite SIM card to be installed. This is not included in the RST825 kit and you should consult your place of purchase is you do not have an active SIM card enabled to make Iridium Satellite calls. Warning: To prevent possible damage, make sure the RST825 system is completely switched OFF before installation. -
Page 12: Rst825 Connector Overview
RST825 Connector Overview Two-way Antenna Connector Config Port Data Port Power Input Iridium Antenna Connector Connecting the Antenna Cable Plug the antenna cable into the TNC antenna jack located on the front right side of the RST825 case. Ensure that the specified cable being used does not exceed the Iridium maximum-loss rating of 3dB to ensure maximum performance of the terminal. -
Page 13: Rst825 Operation
RST825 Operation System Power up After installation has been completed, the RST825 system is now ready to be switched on. To turn on the system: 1. Switch on the Radio Component by simply selecting the ON position 2. Switch on the Satellite Component by simply selecting the ON position 3. -
Page 14: Using Satellite Handset Mode
The Satellite module provides the air interface to allow two-way radio systems to interface to either another Beam SatRADIO terminal or any terrestrial phone service anywhere on earth. There are three key ways to use the Satellite component of the RST825 Handset Mode This mode enables you to simply make a satellite telephone call using the Iridium handset of the terminal. -
Page 15: Using A Radio Handset - Dtmf Model
End the call by pressing C on the Intelligent Handset. NOTE: The call cannot be terminated from a radio if it was originated or answered on the Intelligent Handset. Repeat steps above for transferring the next call when required. NOTE 1: “AutoDial” (in Beam Management Settings) must be disabled. NOTE 2: “Auto Answer”... -
Page 16: Accessing Speed Dials Form Radio Handset
8. Hanging up the call: If the call was manually dialed or was incoming, it can be hung-up by the handheld user by simply pressing the transmit button of the radio followed with a DTMF- 0 (zero). Accessing Speed Dials form Radio Handset The quick-dial mechanism can also be used if any of the quick-dial numbers have been setup in the SatRADIO. - Page 17 Setting up Autodial feature The Auto-dial switch indicates to the SatRADIO that a number is to be auto-(re)dialed once the Radio is turned on. There are two means of setting an Autodial number into the system 1/ Last number dialed 2/ Quick Dial location “0”...
-
Page 18: Vox Operation - Understanding The Operation
VOX operation – Understanding the operation Once the voice call is in progress, the base operator can hear all traffic on the Radio channel (assuming the SatRADIO has been setup with Selcall or CTSS compatible with the local radio user group). Whilst the radio is receiving a signal, the base operator cannot be heard (local priority). -
Page 19: Installing The Antenna - Refer To Separate Guide
Voice and SMS services over the Iridium network in conjunction with the RST825 terminal interface. A Beam Communications approved extension cable to the Intelligent handset is optionally available. The DPL Handset is inserted and removed from the cup by pushing forward against the spring-loaded arch. -
Page 20: Data Communications
Data Communications A 9 pin serial communications DATA port is provided for data communications over the Iridium satellite channel. Data calls cannot be made when the terminal is busy in a voice call with the handset or radio. The interface is wired DCE, so appears as a normal Hayes modem to a computer. Standard AT Hayes commands can be used to initiate a Data call using this port. -
Page 21: Internal Rs232 Port Signal Support And Handshaking
Internal RS232 Port Signal Support and Handshaking On the Data port, DCD and DSR output signals are related to DTR input and CTS is tied to RTS as shown. The Data port supports full software XON/XOFF handshaking on data (AT commands bypass this as standard for Hayes modems) or full hardware handshaking on RTS/CTS with DCD carrier indication. -
Page 22: Troubleshooting
Troubleshooting This chapter provides information to help you troubleshoot problems you may encounter while running the RST825. No lights on RST825 Check system switch is on, and the battery has adequate charge, and/or external power supplies are on. No dial tone Check if a data call is in progress and power is connected and equipment is in a normal state Cannot make call, two tone signal heard... - Page 23 Your SIM card won’t w or k. Is the card inserted the correct way? Is the gold chip visibly damaged or scratched? Return the card to your service provider. Check the SIM and phone contacts. If they are dirty, clean them with an antistatic cloth.
-
Page 24: Configuration - Technical Notes
Configuration – Technical Notes Configuration of the SatRADIO can be performed by a user with sufficient privileges, and is usually required on initial installation to program the way the unit is to operate and adjust levels. Configuration is simple and can be done with any PC. An RS232 serial connection is required which can be either provided by the PC itself, or a USB->Serial converter. -
Page 25: Srm9000 2 Way Radio Programming
SRM9000 2 Way Radio Programming • Programming of the radio operating frequencies and personalities of the SRM9000 two way radio module should only be undertaken by a qualified Radio Service Technician. Programming requires use of Simoco SRM9000 FPP alignment software and programming cable together with appropriate RF test measurement equipment. - Page 26 Radio (SRM9000 Transceiver) Frequency range 136MHz to 174MHz, 403-480MHz, 440-520MHz (sub-bands) Channel Spacing 10 / 12.5 / 20 / 25kHz Current consumption (typical) 220mA S/By, 1100mA Tx, 800mA Rx (Speaker enabled) RF Power Output 5 Watts ≤ 0.3µV PD (-117.5dBm) for 12dB SINAD Receiver Sensitivity 25kHz Channel Spacing >...
-
Page 27: Beam Warranty Conditions
Customer for the product to which a claim is made. All products manufactured by BEAM Communications are warranted to be free from defects in material and workmanship in accordance with and subject to the following terms and conditions: 1. -
Page 28: Appendix: Srm9000 2 Way Radio Operator Card
Appendix: SRM9000 2 Way Radio Operator Card (courtesy TMC Radio Pty Ltd) See following 2 pages. Page 28 of 30... - Page 30 Page 30 of 30...
