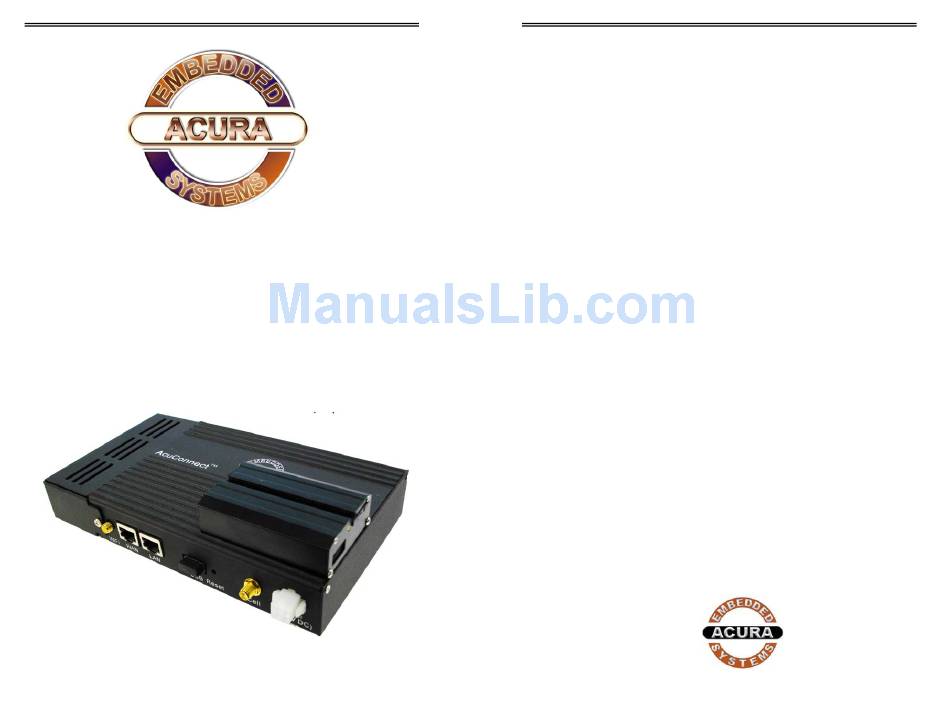

AcuConnect™ 2.0
Quick Reference Manual
Disclaimer
Acura Embedded Systems Inc. takes every care in the
preparation of this document, but no guarantee is given as to
the correctness of its contents. Our products are under
continual improvement and we reserve the right to make
AcuConnect ™2.0
changes without notice. The manufacturer makes no
representations or warranties with respect to the contents
hereof and specifically disclaim any implied warranties of
Rugged 3G Mobile Broadband
merchantability or fitness for any particular purpose. The
Combination of Modem & Router
manufacturer reserves the right to revise this publication and
to make changes from time to time in the content hereof
without obligation of the manufacturer to notify any person of
such revision or changes
.
In general, the manufacturer will not be liable for loss of data
or other direct, indirect, special, incidental or consequential
damages arising from the use or inability to use the product
or documentation, even if advised of the possibility of such
damages.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AcuConnect2.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Acura Embedded AcuConnect2.0

  • Page 1 AcuConnect™ 2.0 Quick Reference Manual Disclaimer Acura Embedded Systems Inc. takes every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make AcuConnect ™2.0...

  • Page 2: Table Of Contents

    3. WiFi Requirement................laws, with all rights reserved. Neither this manual, nor any of the 4. Features..................material contained herein, may be reproduced without written consent of Acura Embedded Systems Inc. 5. AcuConnect™2.0 Overview............5.1 Rear View..................Trademark Recognition 5.2 Front View...................

  • Page 3: Package Contents

    AcuCo nnect™ 2.0 Quick Reference Manual 4. Features  Quick and easy setup 1. Package Contents  Automatic connection failover to 3G connection if Ethernet WAN connection fails. Important: Check the contents of this box first.  Fully compatible with the 802.11g IEEE standard to provide a Contents list wireless data transfer rate of up to 54Mbps.

  • Page 4: Acuconnect™2.0 Overview

    AcuCo nnect™ 2.0 Quick Reference Manual 5.2 Front View AcuConnect™ 2.0 Overview 5.1 Rear View Cellular Antenna Wi-Fi Antenna Connection: Connection: Connect to Wi-Fi Antenna Allows connection MODEM with external antenna 3G LED: Lights up green when power is on LAN LED: Lights up green when a local Ethernet cable is connected and blinks indicate activity WAN LED: Lights up green when WAN is connected...

  • Page 5: View With Protection Cover

    AcuConnect™ 2.0 Quick Reference Manual 5.4 View with Protection Cover 6. Quick Setup 6.1 SIM card plug in press yellow button on the modem and Sim Card holder will pull out. Protection Cover: This cover protects PCMCIA modem Dimension of AcuConnect™ 2.0 SIM card With cover: 20.5cm x 11.9cm x 5.4cm (L x W x H)

  • Page 6: Setup 3G

    AcuConnect™ 2.0 Quick Reference Manual 6.2 Setup 3G 6.2 Reboot Setting 1. Open a web-browser. Step 1. Add new schedule rule 2. Type in the IP Address (http://192.168.123.254) of the Wireless WAN Mobile Broadband Router 3. Type “admin” in the Password field. [ADVANCED SETTING][Scheduling]Click [Add New Rule] button to setup schedule rule.
  • Page 7 AcuConnect™ 2.0 Quick Reference Manual Step 2. Enable Schedule ACURA INSTALLATION INSTRUCTIONS The following instruction is designed to assist the technician or customer in the basic steps of installing Acura products and makes the assumption that commonsense and previous experience will aid in the installation.
  • Page 8 AcuCo nnect™ 2.0 Quick Reference Manual Customer Name: ____________________________________ Before attaching any wiring be sure that power leads are correctly fused and correctly identified or –) as well as correct voltage and wire size (12 ga power supp ly minimum) Location: _________________________________ Caution: Incorrect connection of wires will affect the electronics and will void warranty...

  • Page 9: Technical Support

    AcuConnect™ 2.0 Quick Reference Manual With the unique set of products, Acura Embedded Systems remains committed to its goal of providing trouble-free and customer-friendly service. A special customer service unit has b en set up specifically to cater to our esteemed customers' needs.
