Page 1: Instruction Manual

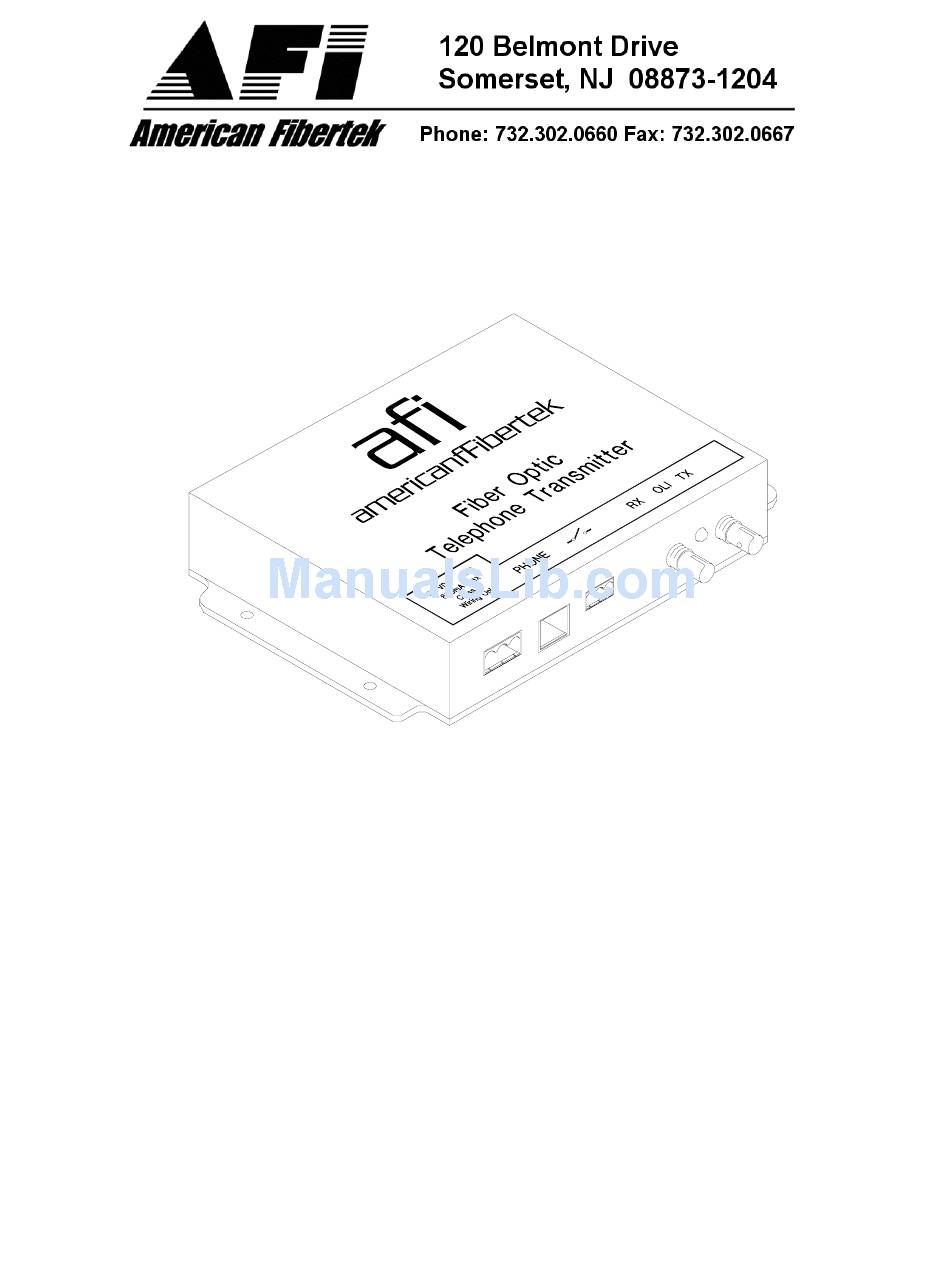

Instruction Manual MT-86 Telephone Transceiver © Copyright 2011, American Fibertek, Inc. 0311JPM... - Page 2 This unit is contained in a compact and rugged aluminum housing with internal dc voltage regulation. The detachable terminal blocks and LED indicator provide for easy installation and monitoring of optical and DC power. The MT-86 is designed for mounting as a modular stand alone unit. For a rack mounted version please see the RT-86. INSTALLATION THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE PERSON AND SHOULD CONFORM TO THE NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 AND LOCAL CODES.
- Page 4 The MT-86 provides the following LED status indicator to aid in installation and troubleshooting: A bi-color LED indicator monitors the input power of the optical signal that is being received at the MT-86 from the MR-86 (or the RR-86). Internal DC power and optical input status associated with this LED are summarized below.
